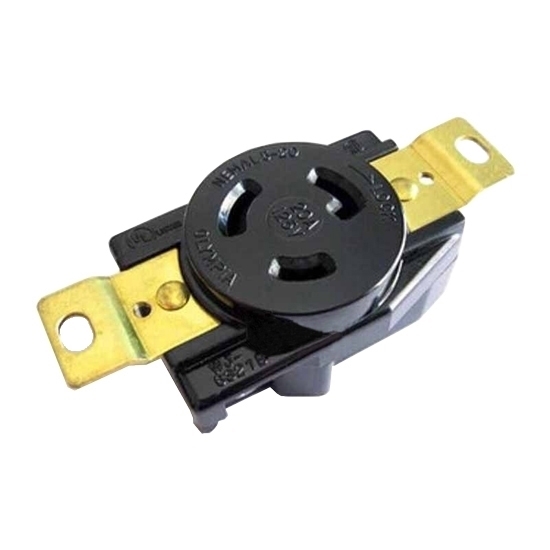

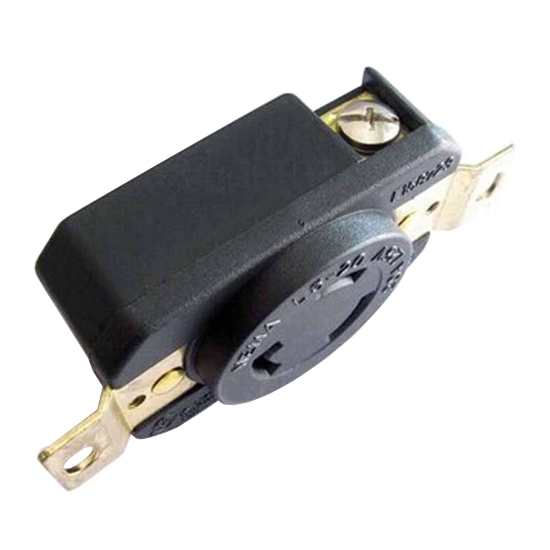

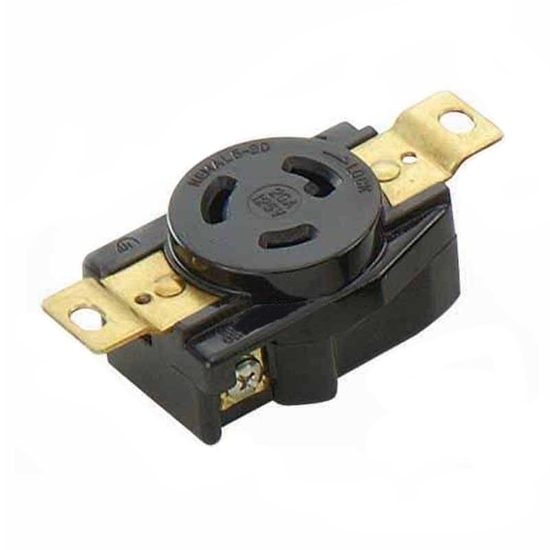

20A 125V Locking Receptacle, 2 Pole, 3 Wire

0 reviews • Write a review

from

$54.41

Ex Tax: $54.41

Stock: In Stock
Model: RDDLZ-BL5-20R
Weight: 1.00
SKU: RDDLZ-BL5-20R

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 20 amp 125 volt twist lock receptacle utilize a twisting method with a plug to establish a connection, helping you avoid the danger of loose plugs.

Specification

Model: RDDLZ-BL5-20R
Certification: UL
Grounding: Standard Grounding
Rated Voltage: 125 Volt
Rated Current: 20 Amp
Application: Commercial
Flammability: Rated V-2 per UL94
Back Cover: Thermoplastic
Color: Black
Pole: 2
Wire: 3
Body Material: Super Tough Nylon
Assembly Screws: Steel, Zinc Plated
Terminal Screws: Brass
Standard and Certification: UL498

Tips: What are the advantages of locking receptacle?

Locking receptacle are beneficial in environments where electrical equipment is essential to operation, semi-permanent and should not be removed easily. This should not be used as a solution to prevent traffic interruptions. Others may continue to trip over the cord, which can damage the cord and create stress. This exposes wires and creates an electrical hazard. If wires are a trip hazard, they should be rewired or secured to the ground to prevent this from happening.

If a weatherproof twist lock receptacle is chosen, it can be useful when the container is exposed to elements. It prevents water from entering the connection and causing a power surge. Locking receptacle form tight connections and seals. The plug will not come loose, exposing the pins and socket holes.
