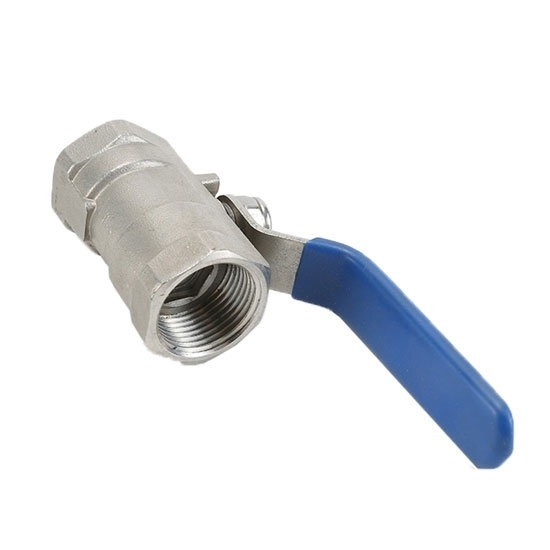

1 Piece Stainless Steel Ball Valve, 1/4 Inch

0 reviews • Write a review

from

$29.68

Ex Tax: $29.68

Stock: In Stock
Model: RDDLZ-BV-Q11F-14
Weight: 1.00
SKU: RDDLZ-BV-Q11F-14

Available Options

Short Description

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1/4" stainless steel ball vavle, 1 piece, internal entry blow-out proof stem, lever handle with locking device, can be used in general working media such as water, solvents, acids and natural gas.

Specification

Model	RDDLZ-BV-Q11F-14
Connection Method	Internal Thread
Material	304 Stainless steel/316 Stainless steel
Operating Temperature	-20℃~+150℃
Pressure Rating	1000PSI W.O.G
Pressure Test	API598
DN	8
NPS	1/4 Inch
FxF	40
φd	5
h1	33
I1	61
CV Factor	4
Torqur (N.m)	13.83
Weight	1 kg
Warranty	12 Months
Certificate	ISO 9001: 2008

1/4 Inch Ball Valve Dimension (unit: mm)

1 Piece Ball Valve Part List

No.	Description	Material
1	Body	CF8M
2	Cap	CF8M
3	Stem	SS316
4	Ball	CF8M
5	Seat	PTFE
6	Joint Gasket	PTFE
7	Thrust Washer	PTFE
8	Stem Packing	PTFE
9	Washer	SS304
10	Spring Washer	SS304
11	Stem Nut	SS304
12	Locking Device	SS304
13	Handle	SS304
14	Handle Sleeve	Plastic

Stainless Steel Ball Valve Applications

Tips: The working principle of 2 piece ball valve

The working principle of 304 two-piece ball valve is to make the valve unblocked or blocked by rotating the valve. The ball valve switch is light, small in size, can be made into a large diameter, reliable in sealing, simple in structure, easy to maintain, the sealing surface and the spherical surface are often closed, and it is not easy to be eroded by the medium. It is widely used in various industries.
