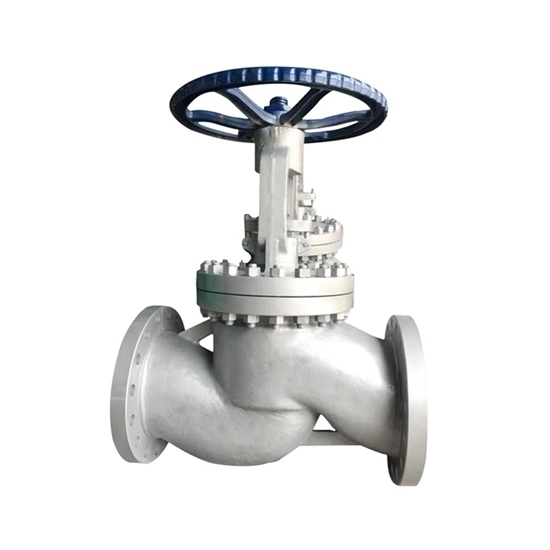

1-1/2" Flanged Globe Valve

0 reviews • Write a review

from

$506.75

Ex Tax: $506.75

Stock: In Stock
Model: RDDLZ-GV-40FGV
Weight: 1.00
SKU: RDDLZ-GV-40FGV

Available Options

Short Description

Pressure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The structure of the globe valve is straight through. The flow direction of 1-1/2 inch globe stop valve is one-way flow. Working temperature of globe control valve between -29 ℃ and 425 ℃.

Features:

Streanline, outside screw and yoke.
Loose disc, rising stem and handwheel.
Yoke integral with bonnet, available with gear operator.

Specification:

Model: RDDLZ-J41H-16/25C-DN40
Port Size: 1-1/2 inch (DN40)
Material: carbon steel
Structural Style: straight through form
Connection Type: flange connection
Medium: water, oil, steam
Pressure: 1.6Mpa/2.5Mpa
Direction of Flow: one way flow
Drive Mode: manual
Working Temperature: -29 ℃ ~ 425 ℃
Net Weight: 21kg

Dimension (Unit: mm)

DN (mm)	L	D	D₁	D2	b	Z-φd	H	Do
DN40	200	145	110	85	18	4-φ18	330	200

Tips: Types of Flange

Flange type, according to the flange and pipe fixing way can be divided into threaded flange, welded flange, loose sleeve flange; According to the sealing surface form, it can be divided into smooth type, concave and convex type, tenon type, lens type and trapezoidal groove type.
General low pressure small diameter with wire flange, high pressure and low pressure large diameter with welding flange, different pressure flange thickness and connecting bolt diameter and number is different.
Flange gaskets also come in different materials according to different levels of pressure, from low pressure asbestos gaskets, high pressure asbestos gaskets and PTFE gaskets to metal gaskets.
