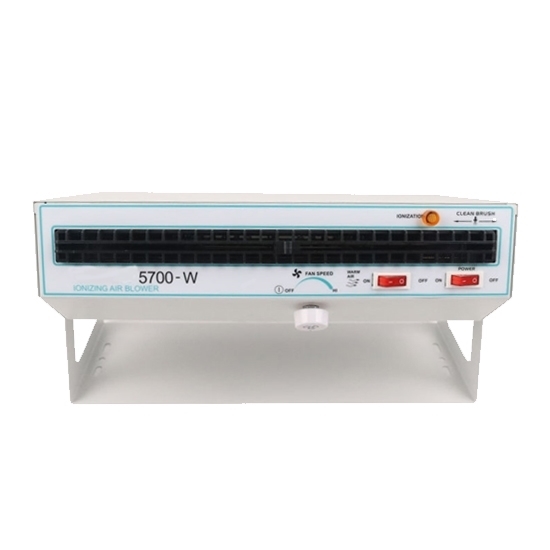

35W static eliminator with 90 × 180cm effective range, operating temp with 0~50℃. External dimension of 525 (L) × 270 (W) × 240 (H) mm.

Features:

Large range of ion wind area, and the wind speed and air volume can be adjusted.
The air blowing angle can be adjusted up and down, and there are table type, arm type and hanging type to choose from.
There is a special ion emission cleaner.
With cold air heating function and over temperature automatic protection function.

Specification:

Model	RDDLZ-BK5700-W
Input voltage	AC 230V / 50Hz
Power	35W (cold wind) 320W (hot air)
Output voltage	5.6kV AC
Air volume	≤3.3m³/ min
Ion balance	0±10V
Ozone	≤0.33ppm
Effective range	90×180cm
Operating temperature	0~50℃
External Dimension	525 (L) x 270 (W) x 240 (H) mm
Weight	6.4kG

Static Test Result:

Decay test conditions	Operating voltage: AC220V Testing valtage: 1kV-100V Temperature: 25℃
Distance	30cm	60cm	90cm	120cm
Decay time	0.8s	1.2s	3.5s	6.3s
Ion balancing	0 ± 10	0 ± 7	0 ± 5	0 ± 3

Not: According to the 30 cm test data of the front panel, the test results will vary with the ambient air temperature and humidity during the test.

Tips: What are 35W static eliminator application scenarios?

35W static eliminator are widely used.
They are mainly used in the processing and assembly of electronic products, the shearing, coiling and laminating of cameras, watches and other precision instruments.
The assembly of plastic films, and the demoulding of mold products.
