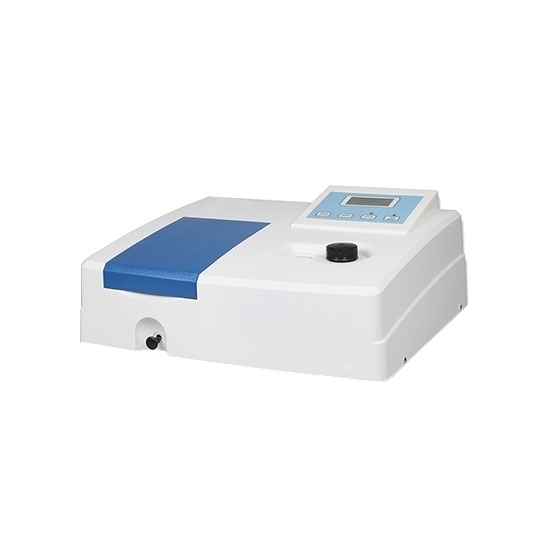

Visible Spectrophotometer, Single Beam, 340/325-1000nm

0 reviews • Write a review

from

$1,320.71

Ex Tax: $1,320.71

Stock: In Stock
Model: RDDLZ-VIS-721G
Weight: 1.00
SKU: RDDLZ-VIS-721G

Available Options

Short Description

Software

Wavelength Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

High-quality silicon photometric diode detector and 1200 lines/mm diffraction grating, to ensure high quality and high precision.
Backlit LCD display, easy for readout.
Precise automatic T/A changeover, and automatic adjustment 0A and 100%T.
Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
Direct concentration read-out and concentration factor setting function.
Easy to change the halogen lamp or deuterium lamp by the user.

Applications

Economic visible spectrophotometers are widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements, such as medical and health, clinical testing, biochemistry, petrochemicals, environmental protection, quality control, and teaching labs.

Specification

Models	RDDLZ-721G	RDDLZ-722G
Optical System	Single beam, diffraction grating
Wavelength Range	340-1000 nm	325-1000 nm
Light Source	Tungsten halogen lamp 12V/20W
Receiving Component	Photocell
Wavelength Accuracy	±2nm
Wavelength Repeatability	≤1nm
Spectrum Bandwidth	5nm
Transmittance Accuracy	±0.5% (T) (NBS930D)
Transmittance Repeatability	≤0.2% (T)
Transmittance Measuring Range (T)	0.0%~100.0%
Absorbance Measuring Range (A)	0.000~1.999
Concentration Read-out Range	0000~1999
Stray Light	≤0.5% (T) (at 360nm, NaNO₂)
Drifting	≤0.5% (T)/3min
Signal Noise (T)	100% Noise≤0.3%, 0% Noise≤0.2%
Port	RS232
Cell Holder	50mm
Power Supply	220V 50Hz (Optional 110V 60Hz: pls tell us by email)
G.W.	13.5kg
Package Dimensions	560 x 480 x 290mm
Software	Optional

Note:
*Standard accessories: User manual 1pc + 1cm glass cuvette 4pcs + Power cable 1pc

Details

Tips: Maintaniance for Spectrophotometers

Spectrophotometers are precision instruments. Due to the working environment, operating methods and so on, its technical conditions will inevitably change in the operation, which may affect the performance of the instrument, and even cause the equipment failure. Therefore, analysts are able to detect and eliminate these hidden dangers in time, in order to ensure the normal operation of instruments and equipment.

If the test wavelength is changed significantly, wait for a moment until the lamp reaches heat balance, recalibrate the "0" and "100%" points and then measure again.
After using the cuvette, immediately rinse it with distilled water and wipe the water mark with clean soft gauze in case of the damage of surface which will affect the light transmittance of the cuvette.
The operator had better not move the light bulb and reflector lamp, so as not to affect the light efficiency.
After the amplifier sensitivity shifts, it must be re-zeroed.
Cuvettes should be assorted. The cuvette must be compatible used; otherwise it will make the test result meaningless.
