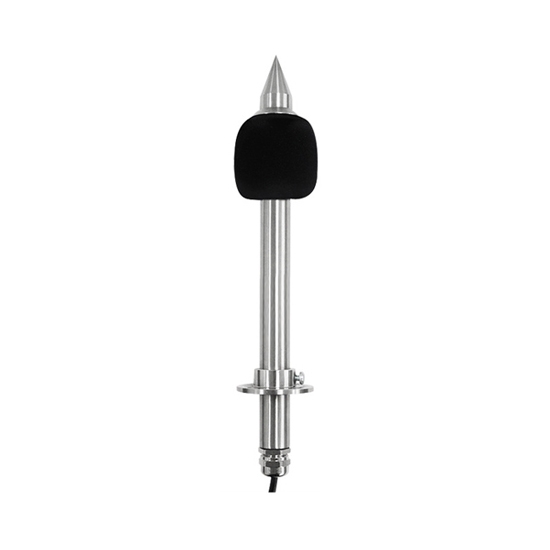

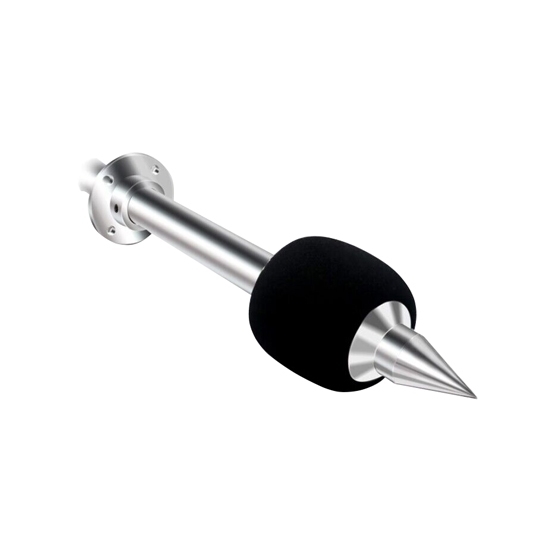

Noise Sensor, RS485, 4-20mA, 0-5V

0 reviews • Write a review

from

$118.89

Ex Tax: $118.89

Stock: In Stock
Model: RDDLZ-NS-RS
Weight: 1.00
SKU: RDDLZ-NS-RS

Available Options

Short Description

Interface Method

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Operating on 10-30VDC with minimal 0.1W power consumption, it features a versatile 485 communication interface (ModBus-RTU protocol). Noise sensor, RS485, 4-20mA, 0-5V offers a resolution of 0.1dB, measuring noise from 30dB to 130dB across a frequency range of 20Hz to 12.5kHz.

Features

High-quality materials for the pursuit of quality, durable, high-density metal casing, waterproof and anti-corrosion, no fear of condensation.
Wide measuring range with high sensitivity condenser microphone.
Industrial digital detector technology: the use of digital signal processing chip, good linearity, wide dynamic range.
High-precision noise sensor picks up a wide range of frequencies and stable signals.

Specification

Model	RDDLZ-RS-ZS-N01-FL
DC Power Supply	10-30VDC
Power	0.1W
Transmitter Circuit Operating Temperature	Transmitter circuit operating temperature
Communication Interface	485 communication (ModBus-RTU protocol)
	Baud rate: 2400, 4800 (default), 9600
	Data bit length: 8 bits
	Parity check method: none
	Stop bit length: 1 bit
	Default ModBus communication address: 1
	Support function code: 03
Parameter Settings	Use the provided configuration software to configure through the 485 interface
Resolution	0.1dB
Measuring Range	30dB~130dB
Frequency Range	20Hz~12.5kHz
Response Time	≤3s
Stability	Less than 2% during the service life
Noise Accuracy	±0.5dB (at reference pitch, 94dB@1kHz)

Dimension (Unit:mm)

Application

Tips: Why is monitoring noise important?

Health Impact: Prolonged exposure to high levels of noise can have adverse effects on human health, including stress, hearing loss, and sleep disturbances. Monitoring noise helps identify areas with elevated noise levels and implement measures to protect public health.
Environmental Impact: Excessive noise can negatively impact the environment, affecting wildlife, ecosystems, and the quality of outdoor spaces. Noise monitoring allows for the identification of areas where noise pollution is a concern, enabling the implementation of mitigation strategies.
Community Quality of Life: Noise pollution can significantly affect the quality of life in residential areas. Monitoring noise levels helps communities identify sources of noise, advocate for noise reduction measures, and maintain a peaceful living environment.
