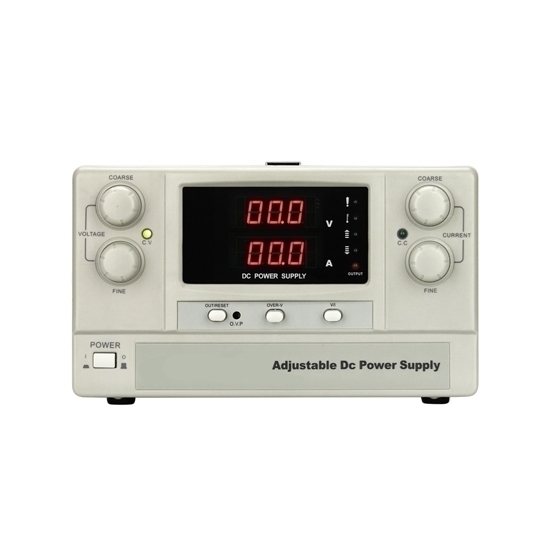

30 amp 60 volt variable DC power supply is designed with the capability to adjust both voltage and current parameters, offering flexibility for diverse electronic components and projects. Its regulated nature guarantees a stable output, safeguarding connected devices from voltage fluctuations.

Specification

Model	RDDLZ-JK6030K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-30A
Output Power	1800W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

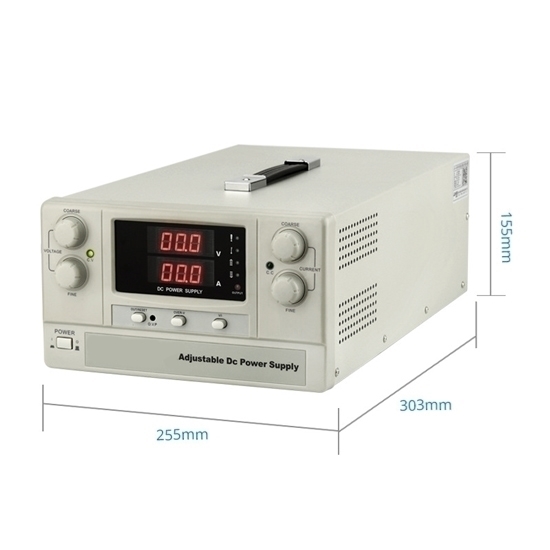

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	13kg

Detail

Tips: Can a variable DC power supply be used for charging batteries?

Yes, a variable DC power supply can be used for charging batteries. It allows you to adjust the output voltage to match the charging requirements of the specific battery. It is crucial to set the voltage and current levels within the battery's recommended charging parameters to prevent overcharging, overheating, or damage. Ensure that the power supply provides a stable and regulated DC output to maintain the battery's health and longevity. Additionally, monitoring the charging process and disconnecting the power supply once the battery is fully charged is essential to prevent overcharging, which can lead to reduced battery life or safety hazards. Always refer to the battery manufacturer's specifications and guidelines when using a variable DC power supply for charging.
