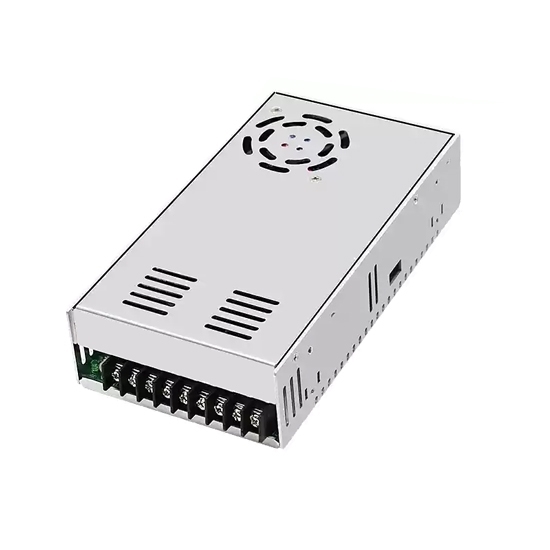

24V 500W Switching Power Supply

0 reviews • Write a review

from

$84.47

Ex Tax: $84.47

Stock: In Stock
Model: RDDLZ-SMPS-500-24
Weight: 1.00
SKU: RDDLZ-SMPS-500-24

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 24V DC 500W switch mode power supply (switching power supply) can convert AC input to a stable DC at a rated current of 20A and comes with overvoltage & overload protection, strong anti-interference ability, efficient work and good performance, widely used in DC power supply applications.

Specifications

Model		RDDLZ-SP-500-24
Output	DC Voltage	24V
	Rated Current	20A
	Current Range	0~20A
	Rated Power	480W
	Ripple and Noise	240mVp-p
	Voltage Adjustment Range	20~26.4V
	Voltage Accuracy	±1.0%
	Linear Adjustment Rate	＜±0.5%
	Load Regulation	＜±0.5
	Start, Rise Time	1500ms,50ms (at Full Load)
	Holding Time (Typ.)	24ms (at Full Load)
Input	Voltage Range	88~264V AC or 124~370V DC
	Frequency Range	47~63Hz
	Power Factor (Typ.)	PF>0.95/230V AC, PF>0.95/115V AC (at Full Load)
	Efficiency (Typ.)	85.50%
	AC Current (Typ.)	7A/115V AC, 3.5A/230V AC
	Surge Current (Typ.)	18A/115V AC, 36A/230V AC
	Leakage Current	<3.5mA/240V AC
Protection	Overload	105%~135% Of Rated Output Power
	Overvoltage	Protection Mode: Constant Current Limiting, Automatic Recovery after Load and Normal Conditions are Removed.
	Fan Control, Over-Temperature Protection	RTH1 or RTH2 ≥50℃ Fan Starts, ≤45℃ Fan Turns off, ≥70℃ Turns off Output
Environment	Remote Control	RC+/RC+: Short Circuit = Power on, Open Circuit = Power off
	Operating Temperature	-10~+50℃ (Please Refer to "Derating Vover Line")
	Operating Humidity	20~90%RH, No Condensation
	Storage Temperature, Humidity	-20~+85℃, 10-95%RH
	Temperature Coefficient	±0.03%/℃ (0-50℃)
	Vibration	10~500Hz.2G 10 minutes/cycle, 60 minutes each for X, Y, and Z Axes
Safety and EMC	Safety Specifications	UL60950-1,TUV EN60950-1.CCC G84943 (24V only) Certified
	Withstand Voltage	I/P-O/P:3KVAC, I/P-FG;1.5KVAC, O/P-FG:0.5KVAC
	Insulation Impedance	I/P-O/P, I/P-FG.O/P-FG:100M, Ohms/500VDC/25℃/70%RH
	Electromagnetic Compatibility Emission	Complies with EN55022 (CISPR22) Class B.EN61000-3-2.3
	Electromagnetic Compatibility Immunity	Complies with EN61000-4-2,3,4.5,6.8.11, Class A Light Industrial Standards
Others	MTBF	≥133.4K hrs., MIL-HDBK-217F (25℃)
	Dimensions	170x120x93mm (LxWxH)
	Packaging	1.9kg

Features

High-quality capacitors: 24V switching power supply uses high-quality electrolytic capacitors, which have large capacity, low loss, and are more durable and safer.
Pure copper transformer: It is equipped with sufficient turns of coil winding, with reliable performance, full power and stable operation.
EML filter: RDDLZ 500W switch mode power supply has strong anti-interference ability, efficient work and good performance.

Details

Dimension (Unit: mm)

SMPS Power Supply Applications

Power Tools: Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Punching Machine, Weeding Machine, Air Compressor, etc.
Office Devices: Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance: TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezer, Coffemarker, etc.
Industrial Equipment: Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: Linear DC Power Supply vs. Switching DC Power Supply

Feature	Linear DC Power Supply	Switching DC Power Supply
Working Principle	Regulates voltage using linear regulators that dissipate excess voltage as heat to maintain a steady output	Uses high-frequency switching and energy storage components (like inductors or capacitors) to regulate voltage efficiently
Efficiency	Low efficiency, as excess energy is lost as heat during regulation	High efficiency, typically 80-90%, as less energy is wasted as heat
Heat Generation	Generates significant heat due to voltage drop in linear regulators	Generates minimal heat due to higher efficiency
Size and Weight	Larger and heavier, especially at higher power levels	Smaller and lighter due to compact design and use of high-frequency switching
Output Noise	Very low noise, ideal for sensitive electronics	Higher noise, which may require additional filtering for sensitive applications
Cost	Generally more expensive due to components and simpler design	Typically less expensive, as fewer and less complex components are required
Applications	Linear DC power supply is ideal for low-power, precision applications like audio equipment, test equipment, and instrumentation	Switching power supply is suitable for high-power applications like computers, LED drivers, and power supplies for industrial systems
Design Complexity	Simpler design with fewer components	More complex design involves switching elements and filtering components
