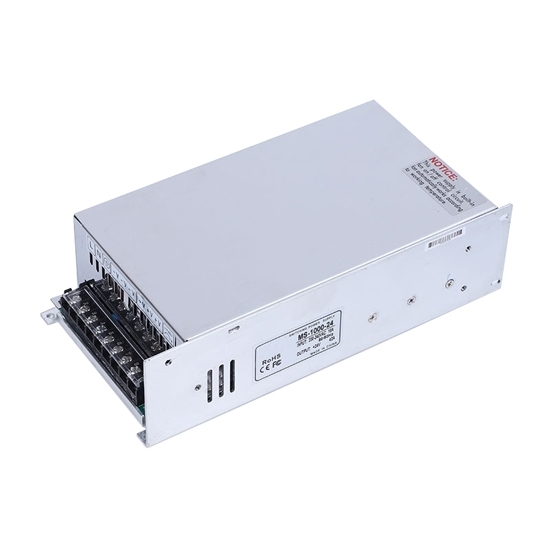

12V 1000W Switching Power Supply

0 reviews • Write a review

from

$118.56

Ex Tax: $118.56

Stock: In Stock
Model: RDDLZ-SMPS-1000-12
Weight: 1.00
SKU: RDDLZ-SMPS-1000-12

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 12 volt DC 1000W switching power supply (SMPS) converts AC power to DC, rated current 75A, reliable performance, sufficient power and stable operation. This high power switch mode power supply is ideal for power tools, home appliances, office equipment and industrial controls.

Specifications

Model	RDDLZ-MS-1000-12
Output	DC Voltage	0~12V
	Rated Current	75A
	Rated Power	1000W
	Ripple and Noise ①	≤150mV
	Voltage Accuracy	±1%
	Output Voltage Adjustment Range	±10%
	Load Regulation	＜±0.5
	Linear Adjustment Rate	＜±0.5%
Input	Voltage Range	180~264V AC 47Hz~63Hz; 254V DC~370V DC
	Efficiency (Typical) ②	＞85%
	Working Current	220V AC, 8A
	Electric Shock	60A 230V AC
	Start, Rise, Hold Time	200ms, 50ms, 20ms; 230V AC
Protection	Overload Protection	105%~135% Type: constant current output +VO drops to the undervoltage point and cuts off the output; Reset: power on again
Protection	Over Temperature Protection	RTH3: The fan rotates continuously, and the output is turned off when >90℃.
Environment	Temperature & Humidity	-10C~+50℃; 20%~90RH
Environment	Storage Humidity	-20C~+85℃; 10%~95RH
Safety & EMC	Withstand Voltage	Input-Output: 1.5kV AC; Input-Enclosure: 1.5kV AC; Output-Enclosure: 0.5kV AC
	Leakage Current	Input-Output: <6mA at 1.5kV AC
	Leakage Current	Input-Output: <1.5mA at 220V AC
	Isolation Resistor	Input-Output, Input-Enclosure, Output Enclosure: 500V DC/100MΩ
Size	240x125x65mm
Net Weight	1.4kg

Features

High-quality capacitors: 12V switching power supply uses high-quality electrolytic capacitors, which have large capacity, low loss, and are more durable and safer.
Pure copper transformer: It is equipped with sufficient turns of coil winding, with reliable performance, full power and stable operation.
EML filter: RDDLZ 1000W switch mode power supply has strong anti-interference ability, efficient work and good performance.

Details

Dimension (Unit: mm)

SMPS Power Supply Applications

Power Tools: Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Punching Machine, Weeding Machine, Air Compressor, etc.
Office Devices: Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance: TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezer, Coffemarker, etc.
Industrial Equipment: Monitoring Equipment, Shipping, Vehicle, Metal halide Lamp, Solar System, Wind Power Generation, etc.

Tips: Linear Power Supply vs. Switching Power Supply

Efficiency

Linear power supplies are less efficient because they regulate voltage by dissipating excess energy as heat. This heat generation can lead to lower efficiency and requires larger heatsinks.
Switching power supplies are more efficient since they regulate voltage by rapidly switching the input voltage on and off. This switching mechanism minimizes heat generation, resulting in higher efficiency and smaller form factors.

Size and Weight

Linear power supplies tend to be larger and heavier due to the need for larger transformers and heatsinks to dissipate heat generated during voltage regulation.
Switching power supplies are typically smaller and lighter because they are more energy-efficient, generate less heat, and use compact components like inductors and capacitors, making them suitable for applications where space and weight constraints are important.
