12V 500W Switching Power Supply

0 reviews • Write a review

from

$83.69

Ex Tax: $83.69

Stock: In Stock
Model: RDDLZ-SMPS-500-12
Weight: 1.00
SKU: RDDLZ-SMPS-500-12

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

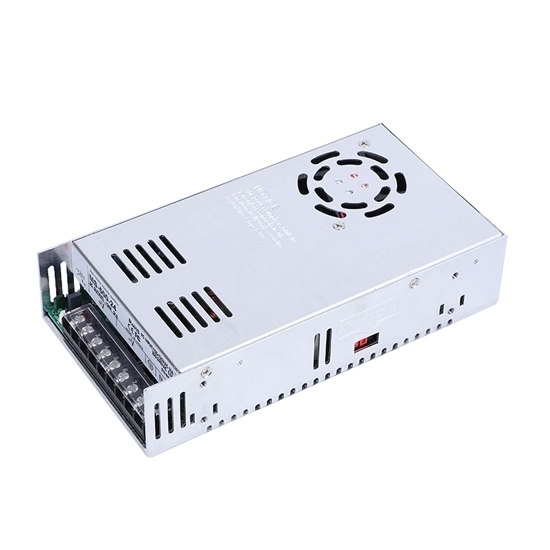

The provided 500W switching power supply can convert AC power to 12 volt DC and rated current 41.6A. Cheap switch mode power supply (SMPS) is suitable for LED road lighting, industrial automation machinery, industrial control systems, electronic equipment and devices.

Specifications

Model	RDDLZ-MS-500-12
Output	DC Voltage	0~12V
	Rated Current	41.6A
	Rated Power	500W
	Ripple and Noise ①	≤150mV
	Voltage Accuracy	±1%
	Output Voltage Adjustment Range	0~100%
	Load Regulation	＜±0.5
	Linear Adjustment Rate	＜±0.5%
Input	Voltage Range	180~264V AC 47Hz~63Hz; 254V DC~370V DC
	Efficiency (Typical) ②	＞85%
	Working Current	220V AC, 4A
	Electric Shock	60A 230V AC
	Start, Rise, Hold Time	200ms, 50ms, 20ms; 230V AC
Protection	Overload Protection	105%~135% Type: constant current output +VO drops to the undervoltage point and cuts off the output; Reset: power on again
Protection	Over Temperature Protection	RTH3: The fan rotates continuously, and the output is turned off when >90℃.
Environment	Temperature & Humidity	-10C~+50℃; 20%~90RH
Environment	Storage Humidity	-20C~+85℃; 10%~95RH
Safety & EMC	Withstand Voltage	Input-Output: 1.5kV AC; Input-Enclosure: 1.5kV AC; Output-Enclosure: 0.5kV AC
	Leakage Current	Input-Output: <6mA at 1.5kV AC
	Leakage Current	Input-Output: <1.5mA at 220V AC
	Isolation Resistor	Input-Output, Input-Enclosure, Output Enclosure: 500V DC/100MΩ
Size	215x115x50mm
Net Weight	0.9kg

Features

High-quality capacitors: 12V switching power supply uses high-quality electrolytic capacitors, which have large capacity, low loss, and are more durable and safer.
Pure copper transformer: It is equipped with sufficient turns of coil winding, with reliable performance, full power and stable operation.
EML filter: RDDLZ 500W switch mode power supply has strong anti-interference ability, efficient work and good performance.

Details

Dimension (Unit: mm)

SMPS Power Supply Applications

Power Tools: Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Punching Machine, Weeding Machine, Air Compressor, etc.
Office Devices: Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance: TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezer, Coffemarker, etc.
Industrial Equipment: Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: What can a 12V switching power supply do?

A 12V switching power supply is a versatile electrical device that converts higher voltage AC (alternating current) or DC (direct current) into a stable 12V DC output. It can serve various purposes in electronics and electrical systems. Common applications include powering electronic devices such as LED lighting, routers, CCTV cameras, and small appliances. These power supplies are also used in automotive applications, providing a reliable 12V source for car accessories and charging devices.

Switching power supplies (SMPS power supply) are favored for their efficiency, compact size, and low heat generation. They can often accommodate a wide input voltage range, making them adaptable to various power sources. This versatility makes 12V switching power supplies a crucial component in many consumer and industrial applications, ensuring consistent and regulated power delivery.
