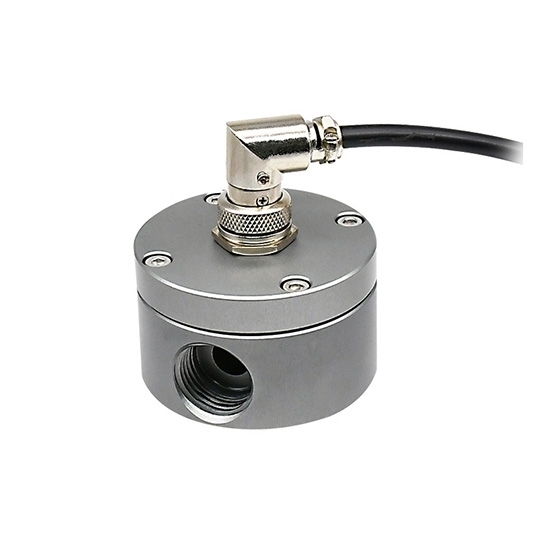

Gear Flow Sensor For Water/Diesel, 0.5-60L/min, DN8-DN25

0 reviews • Write a review

from

$79.93

Ex Tax: $79.93

Stock: In Stock
Model: RDDLZ-FS-AFD7
Weight: 1.00
SKU: RDDLZ-FS-AFD7

Available Options

Pipe Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The operating temperature range of this gear flow sensor is 0~80°C and the humidity range is 35~90%RH (no frost). Its housing is sturdy, compact, and long-term wear-resistant, and it can provide flow measurement in harsh industrial and outdoor environments.

Features

The gear flow sensor is compact in design, saves space, is easy to install, and adapts to a variety of installation environments.
It adopts the volumetric flow measurement principle, accurately calculates the fluid flow rate by rotating gears, and provides high-precision measurement data.
The gear is inlaid with stainless steel beads to effectively enhance wear resistance and extend service life.

Specification

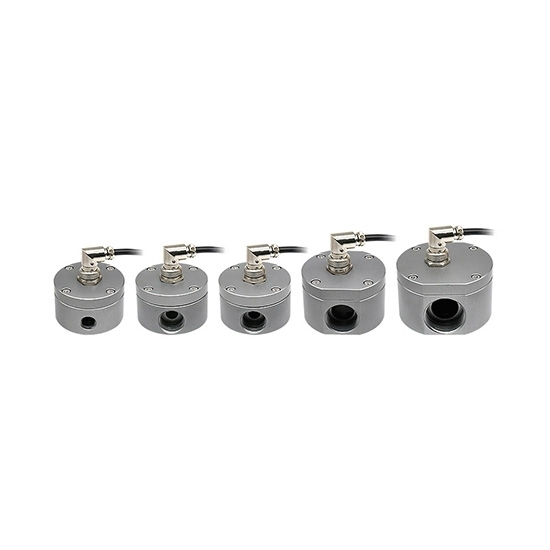

Model	RDDLZ-AFD7005	RDDLZ-AFD7013	RDDLZ-AFD7020	RDDLZ-AFD7050	RDDLZ-AFD7060
Flow range (L/min)	0.5~5	0.7~13	0.8~20	0.5~50	3~60
Thread type	G1/4	G3/8	G1/2	G3/4	G1
Pipe diameter	DN8	DN10	DN15	DN20	DN25
Using temperature range	0~80℃
Using humidity range	35~90%RH (no frost)
Accuracy	Within 1%FS (liquid is water or diesel)
Repeatability	<2.0%
Contact liquid material	ETFE/PPS/SuS304 (stainless steel)
Pressure level	Water pressure below 1.75Mpa
Ambient temperature	-25~80℃
Ambient humidity	25~95%RH
Power supply	5~24VDC
Signal output	Three-wire system 5~24V, GND, signal output
Output pulse high level	Greater than DC 4.5V (input voltage DC 5V)
Output pulse low level	Less than DC 0.5V (input voltage DC 5V)
Output pulse duty cycle	50±10%
Output rise time	0.04μs
Output fall time	0.18μs
Flow-pulse characteristics	Horizontal test pulse frequency F(Hz)=[K*Q]±1%(horizontal test) (K is the frequency coefficient, Q is the flow rate L/min)

Dimension (mm)

Model	RDDLZ-AFD7005	RDDLZ-AFD7013	RDDLZ-AFD7020	RDDLZ-AFD7050	RDDLZ-AFD7060
Body size (A)	⌀60.5			⌀67	⌀79
Body height (B)	36.5			42.5	47.5
Internal thread (C)	G1/4	G3/8	G1/2	G3/4	G1

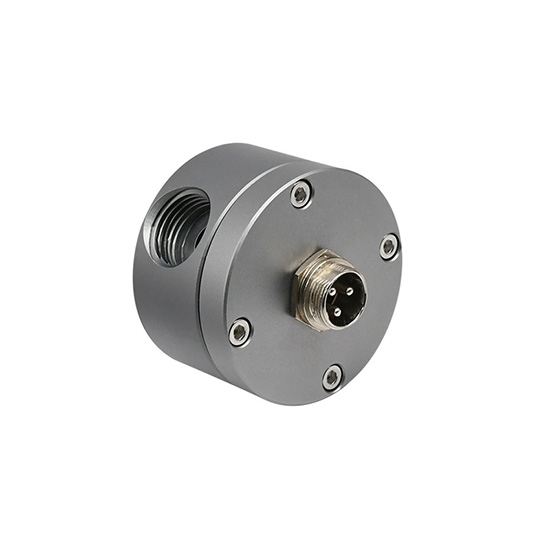

Pin Definition

Line sequence	Output pin description
1 brown	Power supply positive 5~24V DC power supply
2 yellow	Power supply negative
3 blue	Signal output

Installation Instructions

When piping the gear flow sensor, use a wrench to pipe the metal part (pipe fittings) that is integrated with the piping. If a wrench is used on other parts, the flow switch may be damaged. In particular, a wrench cannot be used on the M12 connector. Otherwise, the connector may be damaged.

Note: Do not allow the sealing tape to mix into the pipe when installing the piping. Do not allow the piping to leak due to looseness when connecting. If tightening beyond the tightening torque range, the switch may be damaged. If assembled with less than the specified tightening torque, the connection thread may loosen.

Safety torque table

Thread	G1/4	G3/8	G1/2	G3/4	G1
Applicable torque range	22~24 N·m	22~24 N·m	28~30 N·m	28~30 N·m	28~30 N·m
Torque safety range	<200N·m

Applications

Tips: Working principle of gear flow sensor

Gear flow sensor is a flow meter that measures volume flow with high precision. Its working principle is the positive displacement principle. The flow of the medium causes the gear to rotate. The rotation of the gear drives the rotation of the magnetic pole, which is then scanned by the non-contact Hall sensor. Continuous rotation scanning generates continuous pulses, and finally generates a frequency signal that is proportional to the flow, and then the flow value is obtained. This gear liquid flow sensor based on the standard volumetric principle has a pair of meshing gears as rotors in the cavity. The two gears and the cavity can each form a fixed volume, called the standard volume. The flow rate is measured by calculating the number of flows that pass through the standard volume within a certain period of time.
