9.6V Automatic Rebar Tying Machine, 4~28/45/58mm

0 reviews • Write a review

from

$1,598.84

Ex Tax: $1,598.84

Stock: In Stock
Model: RDDLZ-RTM-96
Weight: 1.00
SKU: RDDLZ-RTM-96

Available Options

Short Description

Binding Rebar Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

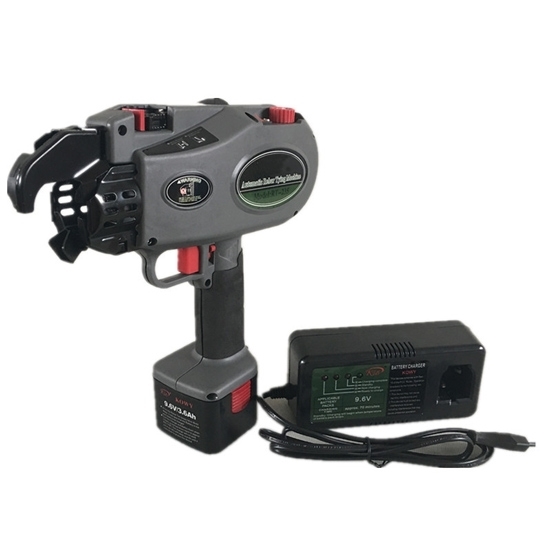

The provided rebar tying machine uses 9V NI-MH battery technology to make rebar tier ties approx 1400 knots per charge. Rebar tier machine provides 4-28mm/45mm/58mm binding rebar range, automatics model, fast and convenient, 3-4 times work efficiency of labor efficiency.

Features

The rebar tying machine uses a DC 9.6V NI-MH battery and could work 1400 knots per time charging.
Charge time is 70 minutes. The total length of the wire roll is 100.
The biggest feature of the rebar tying tool is efficient and convenient. Its efficiency is 2-3 times as labor work.
Rebar tier machines could drastically lower the work strength and save manpower.

Specifications

Model	RDDLZ-RT-235	RDDLZ-RT-395	RDDLZ-RT-550
Machine Size	295x100x260mm	295x100x260mm	295x100x260mm
Machine Net Weight	2.4kg	2.5kg	2.6kg
Packing Weight	6.9kg	7.0kg	7.1kg
Battery Model	9.6V Ni-MH battery	9.6V Ni-MH battery	9.6V Ni-MH battery
Battery Charging Time	70min	70min	70min
Number of Machines	2 Coil-3 Coil	2 Coil-3 Coil	3 Coil-4 Coil
Scope of Binding Reinforcement	4-28mm	4-45mm	4-58mm
Wire Diameter	0.8mm	0.8mm	0.8mm
Wire Length	100m	100m	100m
Wire Weight	0.40kg	0.40kg	0.40kg
Wire Length	43-59cm	65-82cm	105-125cm
Number of Wire Knots Per Reel	230 knots	180 knots	100 knots
Number of Knots Per Charge	1400 knots	1400 knots	1300 knots
Each Distribution Wire	4 NOS	4 NOS	4 NOS
Number of Machines Per Machine	2 NOS	2 NOS	2 NOS
Number of Machines Per Set	1 NOS	1 NOS	1 NOS

Applications

Rebar tying machine is widely used in buildings, bridges, roads, railways, infrastructure, national defense projects, special projects and other fields. It replaces traditional manual binding with fully automatic intelligent binding steel bar technology, which greatly improves work efficiency and reduces the labor intensity of workers.

Tips: What is a rebar-tying machine?

Due to the use of a lithium battery, automatic steel rebar tying machine is also known as automatic lithium battery steel binding machine. This is a kind of hand-held battery-type high-speed steel bar binding tool, which can replace the original manual rebar binding operation. It has a built-in steel bar controller, which can complete all the steps automatically. Automatic rebar tier has been widely used in the field of construction engineering, and instead of manual binding reinforcement.
