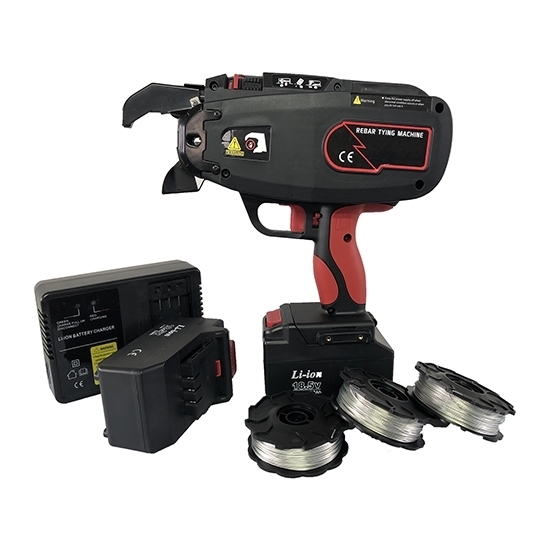

18.5V Automatic Rebar Tying Machine, 4~58mm

0 reviews • Write a review

from

$1,654.92

Ex Tax: $1,654.92

Stock: In Stock
Model: RDDLZ-RTM-185
Weight: 1.00
SKU: RDDLZ-RTM-185

Available Options

Short Description

Binding Rebar Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap 18.5V automatic rebar tying machine for sale online. 4-28mm, 8-45mm and 8-58mm applicable rebar sizes are available. Its wire length is up to 102-128cm per tying, and wraps per tie are 2-3/3-4 wraps. Also, rebar tier machine per charge up to 3500 knots.

Features

The rebar tying machine uses a DC 18.5V NI-MH battery and could tie 5000 knots per time charging (60 minutes charge time).
The biggest feature of the rebar tying tool is efficient and convenient. Its efficiency is 2-3 times as labor work.
Rebar tier machines could drastically lower the work strength and save manpower.

Specifications

Model No.	RDDLZ-RT-528	RDDLZ-RT-545	RDDLZ-RT-558
Net Weight	2.65kg	2.67kg	2.69kg
Battery capacity	5000mAH	5000mAH	5000mAH
Charger	5A/18.5V	5A/18.5V	5A/18.5V
Gross Weight	7.8kg	8kg	8kg
Battery type	LI-ion	LI-ion	LI-ion
Charging time	60 minutes	60 minutes	60 minutes
Wire diameter	0.8 mm	0.8 mm	0.8 mm
Length per coil	95-100 m	95-100 m	95-100 m
Weight per coil	0.40 kg	0.40 kg	0.40 kg
Wraps per knot	2 wraps-3 wraps	2 wraps-3 wraps	3 wraps-4 wraps
Applicable rebar size	4-28mm	8-45mm	8-58mm
Wire length per tying	43-58cm	60-82cm	102-128cm
Ties per roll of wire	230 knots	180 knots	95 knots
Ties per charging	5000 knots	4500 knots	4300 knots

Details

Applications

Rebar tying machine is widely used in buildings, bridges, roads, railways, infrastructure, national defense projects, special projects and other fields. It replaces traditional manual binding with fully automatic intelligent binding steel bar technology, which greatly improves work efficiency and reduces the labor intensity of workers.

Tips: Advantages of Automatic Rebar Tying Machine

Automatic rebar tying tool can be operated by one hand so which improves the safety factor of workers.
Binding speed is 2-3 times of manual operation, and the binding time of each wire knot is less than 1 second, which greatly reduces the labor intensity of workers.
Rebar tying tool has a large binding force and a special structure design, which makes it easy to bundle steel bars, aluminum ingot and heavy packing materials.
A powerful lithium battery’s charging time is about 60/70 minutes. The portable rebar tier can continuously bind up to 5000 knots after charging each time.
