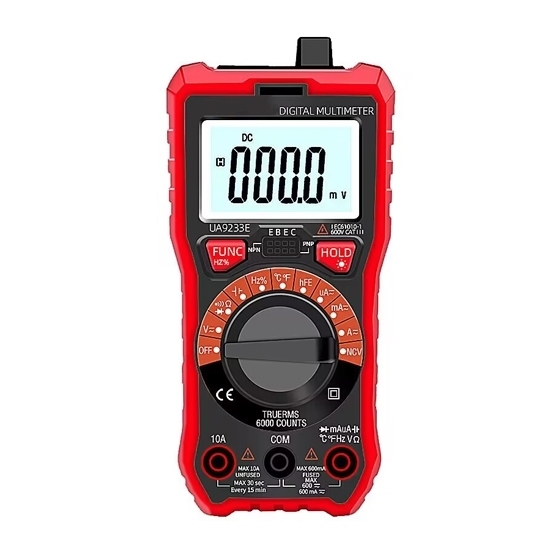

True RMS Multimeter, Auto Range, 600V, 10A
from
$87.69
Ex Tax: $87.69
- Stock: In Stock
- Model: RDDLZ-MLT-9233
- Weight: 1.00
- SKU: RDDLZ-MLT-9233
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Handheld auto range digital multimeter for sale. The 600V 10A smart multimeter with a 1999 max display, used for current/voltage/resistance/capacitance/frequency, is a repair of ideal tool family, school, smelting, telecommunications, manufacturing, oil, defense, power, and chemical industry.
Specifications
Model | RDDLZ-MLT-UA9233E |
Maximum Display Value | 5999 |
Operation Mode | Auto Range |
Battery Type | 6F22 9V Battery (Not Included) |
Weight | About 300g |
AC/DC Voltage | 6V/60V/600V |
AC/DC Current | 600uA/6000uA/60mA/600mA/6A/10A |
Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
Capacitance | 9.999nF~99.99mF |
Frequency | 9.999Hz~9.999MHz |
Temperature | -20~1000℃ |
Duty Cycle | 0.1~99.9% |
Functions
NCV Test | √ | Auto Power Off | √ |
Diode Testing | √ | Function Protection | √ |
Triode Testing | √ | Automatic Resettable Fuse | √ |
Data Hold/TRMS/NCV | √ | Backlight | √ |
Low Battery Display | √ | Self Recovered Safety | √ |
Dimension (Unit: mm)
Details
Applications
Tips: How to choose a multimeter?
When choosing a multimeter, consider the following factors:
- Accuracy and precision: Look for a multimeter with good accuracy and precision. The accuracy of the multimeter determines how close the measurement is to the actual value, while precision refers to how consistent the measurements are.
- Measurement range: Choose a multimeter with a measurement range that covers the parameters you need to measure. The measurement range includes voltage, current, resistance, and other parameters.
- Durability: Look for a durable multimeter that can withstand rough handling and harsh environments. Consider the materials used to make the multimeter, its build quality, and any certifications or ratings it has.
- Features: Look for features that are important to your specific needs. Some common features include a backlight for dark environments, a hold button to freeze the measurement, and an auto-ranging function that automatically selects the appropriate range for the parameter being measured.
- Price: Consider your budget and choose a multimeter that provides good value for your money. Don't go for the cheapest option as it may not be accurate or durable. On the other hand, don't overspend on features that you don't need.
