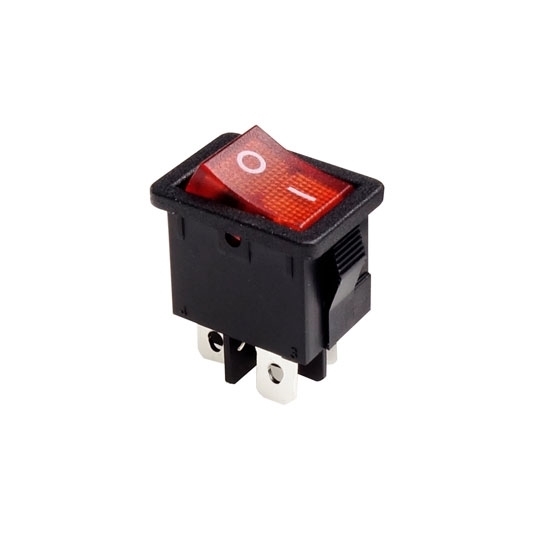

Illuminated Rocker Switch, 4 Pin

0 reviews • Write a review

from

$6.98

Ex Tax: $6.98

Stock: In Stock
Model: RDDLZ-RS-KCD1
Weight: 1.00
SKU: RDDLZ-RS-KCD1

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Illuminated rocker switch is used to install in various electrical engineering, 4 pins, on/off, rated voltage 220V, high temperature and corrosion resistance.

Specification

Model	RDDLZ-RS-KCD1
Rated Current	15A
Rated Voltage	220V
Terminals Number	4 Pin
Contact Resistance	≤50mΩ
Withstand Voltage	1500VAC 1 min
Rated Range	16A 250VAC
Relative Humidity	＜95%
Protection Level	IP40
Terminal Insertion Force	≥80N
Insulation Resistance	≥1000mΩ
Electrical Life Time	10,000 Cycles
Flame Retardant Requirements	UL94-V2
Operating Force	2N-8N
Welding	Welding temperature ≤320℃, welding time ≤3 seconds
Illuminated Voltage	Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
Certificate	UL. CE, ENEC
Warranty	12 Months

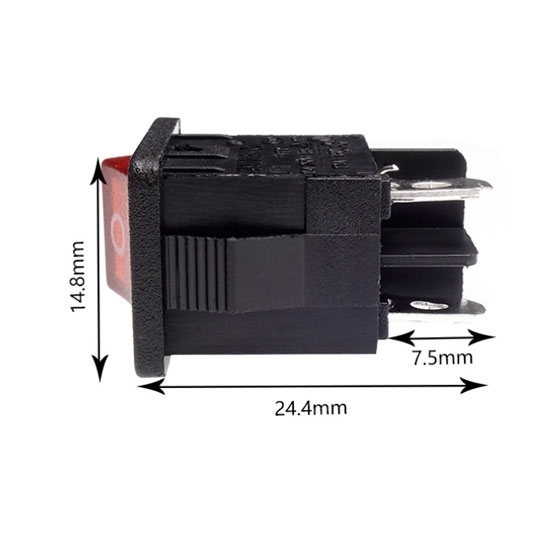

On off Rocker Switch Dimension

4 Types of rocker switches

1. Single pole single throw, 1 moving contact and 1 static contact, only 1 channel.
2. Double pole single throw, 2 moving contacts and 2 static contacts, with 2 channels.
3. Single pole double throw, 1 moving contact and 2 static contacts, which can be connected to the static contacts at both ends separately.
4. Double-pole double-throw, 2 moving contacts and 4 static contacts, with 4 channels, which can be connected to the 2 static contacts at both ends separately.
