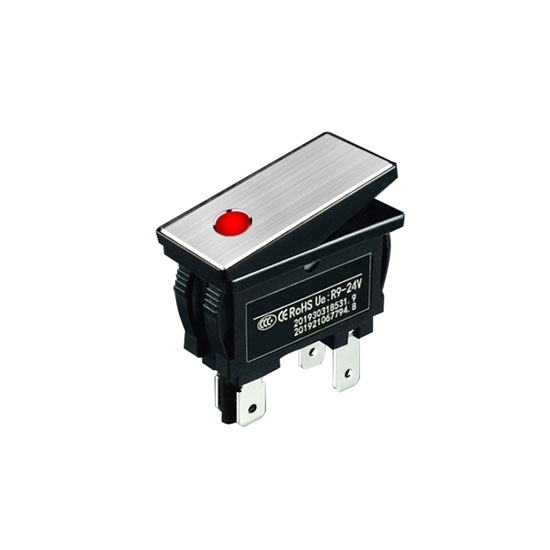

lighted rocker switch 12 volt, LED light color red/green, mechanical life 50 thousand times, action force 8N, LED lamp life 40,000 hours, widely used in drinking fountains, treadmills, coffee machines, motorcycles, etc.
| Model | RDDLZ-RS-KCD3 |
| Rated Current | 16A |
| Rated Voltage | 12V/24V |
| Terminals Number | 4 Pin |
| Luminous Color | Red / Green |
| Rated Current | ≤ 20mA |
| Wiring | Pin pin wiring |
| Contact Resistance | ≤50mΩ |
| Withstand Voltage | 3000VAC 1 min |
| Rated Range | 16A 250VAC |
| Hole Size | 28 x 10.5mm |
| Protection Level | IP65 |
| Button Material | Aluminum alloy |
| Insulation Resistance | ≥1000mΩ |
| Mechanical Life | 50,000 Cycles |
| Shell Material | PC |
| Operating Force | 8N |
| Base Material | High flame retardant PA66 |
| Environmental Temperature | -30℃~80℃ |
| LED Lamp Life | 40,000 Hours |
| Certificate | CE |
| Warranty | 12 Months |
12V Lighted Rocker Switch Dimension
What is a rocker switch?
The structure of the rocker switch is the same as the toggle switch, except that the handle is replaced with a ship. Rocker switches are often used as power switches for electronic equipment. Their contacts are divided into single-pole single-throw and double-pole double-throw. Some switches also have indicator lights.
