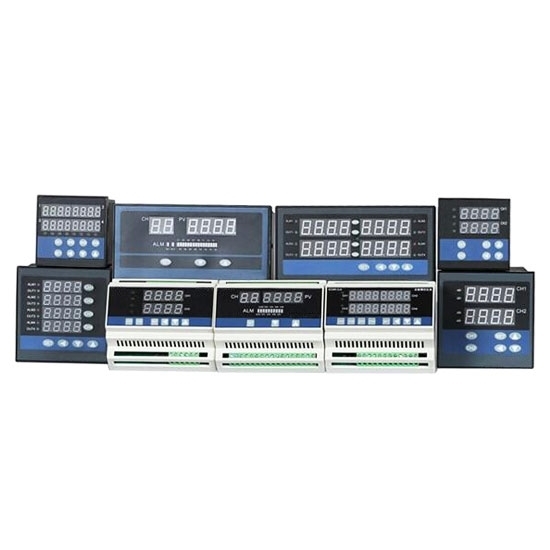

PID Temperature Controller, Multi Channel

0 reviews • Write a review

from

$88.31

Ex Tax: $88.31

Stock: In Stock
Model: RDDLZ-TEMPC-MD
Weight: 1.00
SKU: RDDLZ-TEMPC-MD

Available Options

Short Description

Voltage

Input Signal

Dimension

Number of Channels

Additional Options

I1: Type of Temperature Sensor

I2: Type of Analog Signal

Output Mode

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

PID temperature controller with multi channel can support not only temperature sensors, but also humidity sensor, pressure sensors, load cells, displacement sensors, liquid level sensors, gas sensors, and other non-standard sensors.

Specification:

Model	RDDLZ-TCDM
Weight	0.5kg
Dimension (LengthHighDepth) *	D1: 1608080mm with hole size 15276mm; D2: 9696110mm with hole size 9292mm; D5: 7272110mm with hole size 6868mm; D7: Rail type 1078859mm Note:* D2, D5 and D7 apply to dual channels and four channels, and eight channels only has dimension D1.
Supply voltage	85V-240V AC or 24V DC, 50-60Hz
Working environment	Temperature: -10~60℃, humidity: ≤90%RH
Sampling period	8 times/second; When set digital filter parameter FILt=0, response time≤0.5s
Accuracy	±0.5%F.S ±1 digit
Resolution	≤0.01℃
Input signal *	I1. Temperature sensor: CU50 (-50.0～150.0℃), PT100 (-199.9～600.0℃), K (-30.0～1300℃), E (-30.0～700.0℃), J (-30.0～900.0℃), T (-30.0～350.0℃), S (-30.0~1600℃) I2. Analog signal: 4-20mA, 0-10mA, 0-5V, 1-5V I3. I1+I2 all signals
Control mode	1. On-off control; 2. PID control Need manually switch to another control mode.
Output mode *	O1: Relay output (AC 220V/5A of resistive load or AC 220V/0.3A of inductive load); O2: SSR output (Current ≥15mA, Voltage ≥9V);
Alarm mode *	A1 Default mode: 1 alarm output for each channel
Alarm	Upper limit, lower limit, upper deviation, lower deviation, in the deviation section, outside the deviation section; Temperature difference on each channel
Multi channel function	Multi channel can realize separate measuring and individual control
Additional output mode *	RS: RS485/232 communication (MODBUS-RTU protocol); PT: Printer (TTL232 print out)

Wiring diagram:
1. PID temperature controller wiring diagram (input: I1 temerature sensor)

2. PID temperature controller wiring diagram (input: I2 analog signal)

3. PID temperature controller wiring diagram (input: I1+I2 all signals)

Tips: Difference between 4-20mA control signal and transmission signal?
The instrument can also support 4-20mA (including 0-10mA, 0-10V, 1-5V) as control signal output and transmission signal output. The control signal is used to control the output percentage of the VFD voltage regulating module. While the transmission signal converts the temperature values displayed on the current instrument into linear signal 4-20mA and then passes to PLC, DCS and other devices. Because PLC does not identify Pt100, K/E/J/T these temperature sensors, PLC can recognize the measured value only when it is 'translated' to 4-20mA signal by transmitter.
