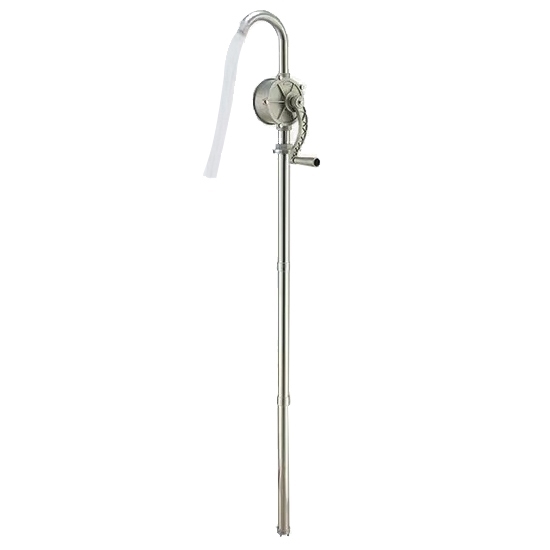

Stainless steel rotary drum pump is a manually operated device designed to transfer oil, diesel, fuel, and gasoline from drums or barrels efficiently and safely. This manual oil pump operates through a rotary mechanism, involving a rotor and vanes, which creates a vacuum to draw the oil into the pump and then pushes it out through the discharge port.

Specification

• Model: RDDLZ-JDT-SUS304-SY
• Dive Mode: Hand Operated
• Material: Stainless Steel (SUS 304)
• Oil Inlet Pipe Length: 1000mm
• Oil Inlet Diameter: 32mm (1-1/4 inch)
• Oil Outlet Diameter: 25mm (1 inch)
• Flow Rate: About 50 L/min
• Lift Capacity: 5m
• Suction Capacity: 2m
• Outlet Hose Size: 1m Long (Can be Customized to 2m)
• Suitable Oil Drum/Barrel Capacity: 20L~200L (5 Gallon~55 Gallon)

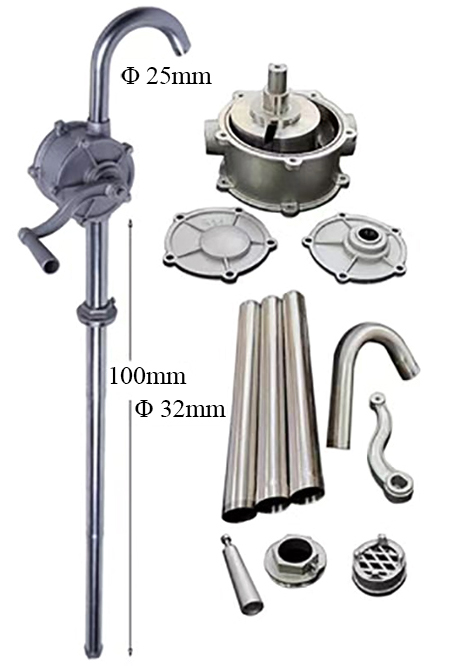

Detail

Tips: What is a rotary drum pump?

A hand rotary drum pump is a type of pump used to transfer liquids from drums or barrels. It operates through a manual crank or motor-driven mechanism that rotates a cylindrical rotor inside the pump housing. As the rotor turns, it creates a suction effect, drawing the liquid up through an intake tube and expelling it through a discharge tube. These pumps are commonly used in industrial, agricultural, and commercial settings for handling various fluids, including chemicals, oils, and fuels. Hand operated rotary drum pumps are favored for their simplicity, efficiency, and ability to handle viscous or corrosive liquids. They come in different materials to suit specific applications, ensuring compatibility and durability in diverse environments.
