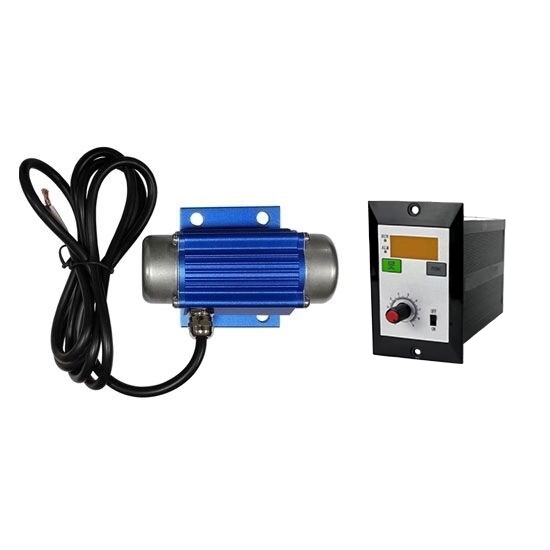

25W 12V/24V DC Brushless Vibration Electric Motor With Controller

0 reviews • Write a review

from

$402.31

Ex Tax: $402.31

Stock: In Stock
Model: RDDLZ-25DCBVM12-Z03
Weight: 1.00
SKU: RDDLZ-25DCBVM12-Z03

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

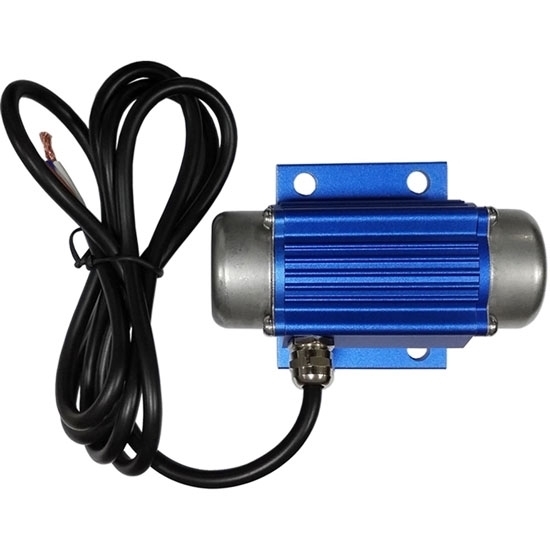

The provided 25W DC 12V/24V DC burshless vibrating motor with eccentric weights through a rotating motor generates uneven centrifugal force, thus causing vibration, used for packing feed machines, topsoil screeners, or various industrial applications.

Features

25W 12V/24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
Special voltage and speed can be customized, please contact us.

Specifications

Model	RDDLZ-25DCBVM12-Z03
Rated Speed	7000rpm
Rated Voltage (Motor & Controller)	12V	24V
Rated Current	2.4A	1.2A
Power	25W
Force	15 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection Rank	IP65 (Dustproof and Waterproof)
Insulation Grade	F (The Highest Heat Resistant Temperature is 155℃)
Cooling Mode	Natural Cooling (IC410)
Working System	S1 (Continuous Duty)
Dimensions	105.4mm x 75mm x 47.35mm
Weight	1.2 kg
Certificate	CE

Notes

+/- 20% voltage tolerance.
Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

Dimension (Unit: mm)

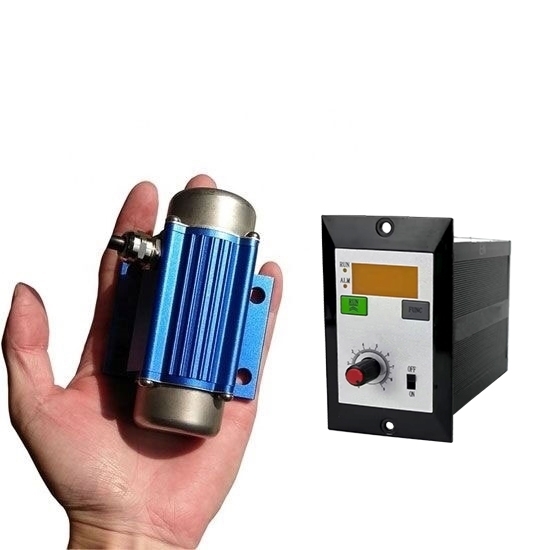

Appearance Contrast Chart

Applications

RDDLZ 25W 12V/24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: Industrial Vibration Electric Motor Working Principle

RDDLZ industrial vibration motor works by using a rotating electric motor to drive an unbalanced mass (typically an eccentric weight), which generates centrifugal force as it spins, causing vibrations in the equipment or material. The intensity and frequency of the vibration can be controlled by adjusting the motor speed and the size of the eccentric weight. These industrial vibration electric motors are commonly used in applications like material handling, compaction, or product durability testing, where vibrations help move materials, reduce air pockets, or simulate different working conditions.
