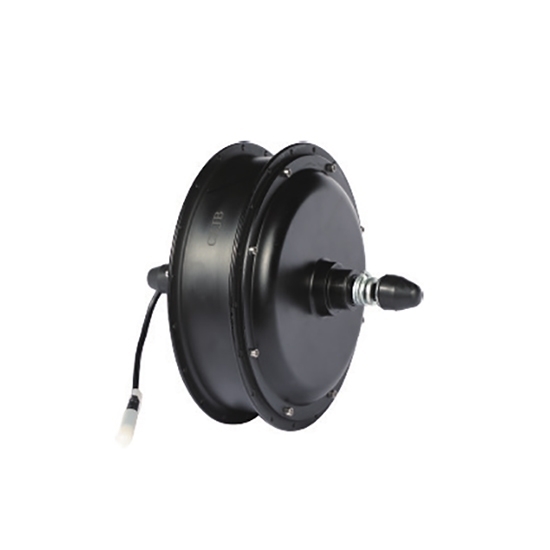

3000W Gearless Hub Motor, 72V, 80 N.m

3000W Gearless Hub Motor, 72V, 80 N.m
3000W Gearless Hub Motor, 72V, 80 N.m
0 reviews • Write a review
from
$518.92
Ex Tax: $518.92
  • Stock: In Stock
  • Model: RDDLZ-GHM3000
  • Weight: 1.00
  • SKU: RDDLZ-GHM3000

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Best sale 3 kw in wheel electric hub motor has the protection grade of IP 65, and the noise grade under 55 dB. The working efficiency of 82% is unmatched by other hub motors.

Specification

ModelRDDLZ-205-55
Motor typeBrushless DC motor
Max. power3000W
Rated voltage72V
Max torque80 N.m
Reduction ratio/
Installation positionRear
Motor structureGearless
Wheel diameter26 inch is standard configuration (20-28 inch can be customized)
Rated speed25-70 km/ h
Spoke specification36H*10g/ 12g/ 13g
Dropout170-190mm
Brake typeV/ Disc brake
Operation temperature-20℃ - 45℃
Efficiency≥82%
ColorBlack
Cabling routeShaft center right/ left
Noise grade≤55 dB
IP gradeIP65
Salt spray test standard24/ 96 h
Drive and freewheel6-9s
Weight7kg

Dimension (Unit: mm)

Details

Tips: Brushed hub motor vs. Brushless hub motor

The energization principles of brushed hub motors and brushless hub motors are different, and their internal structure is also different. For the hub motor, the output mode of the motor torque (whether it is decelerated by a gear reduction mechanism) is different, and its mechanical structure is also different.

  1. The internal mechanical structure of a common high-speed brush motor. This kind of in wheel motor consists of a built-in high-speed brushed motor core, reduction gear set, overrunning clutch, hub end cover and other components. High-speed brushed and gear hub motors are internal rotor motors.
  2. The internal mechanical structure of a common low-speed brush motor. This type of hub motor is composed of carbon brushes, phase converters, motor rotors, motor stators, motor shafts, motor end covers, bearings and other components. Low-speed brushless gearless hub motors are external rotor motors.
  3. The internal mechanical structure of common high-speed brushless motors. This kind of in wheel motor consists of a built-in high-speed brushless motor core, planetary friction roller, overload clutch, output flange, end cover, hub shell and other components. High-speed brushless gear hub motors are internal rotor motors.
  4. The internal mechanical structure of common low-speed brushless motors. This kind of hub motor is composed of motor rotor, motor stator, motor shaft, motor end cover, bearing and other components. Low-speed brushless gear hub motors are external rotor motors.
