10 Inch Hub Motor, 350W, 36V/ 48V, 30 N.m, Gearless

0 reviews • Write a review

from

$438.54

Ex Tax: $438.54

Stock: In Stock
Model: RDDLZ-GHM350
Weight: 1.00
SKU: RDDLZ-GHM350

Available Options

Short Description

Rated Voltage

Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

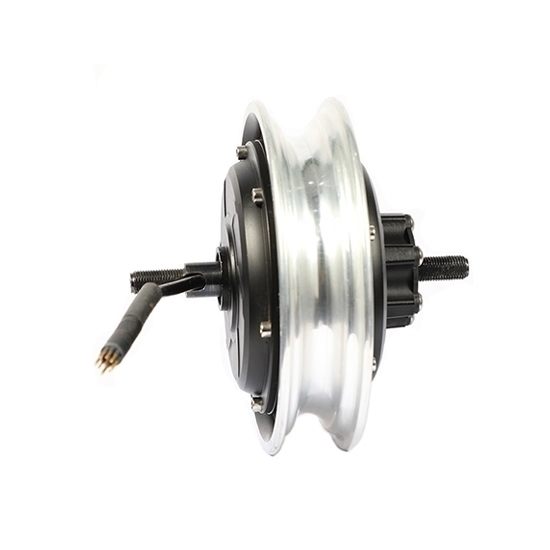

The 350W electric hub motor is suitable for 10” diameter wheel. It is an brushless ebike hub motor which can work in the environment of -20℃ - 45℃. Ride with a 10 inch hub motor, and you'll fit in perfectly with your E-bike.

Specification

Model	RDDLZ-105-10
Motor type	Brushless DC motor
Max. power	350W
Rated voltage	36V/ 48V DC (optional)
Max torque	30 N.m
Reduction ratio	1:4.4
Installation position	Rear
Motor structure	Gearless
Wheel diameter	10 inch
Rated speed	25 km/ h
Dropout	119mm
Brake type	V/ Disc brake
Operation temperature	-20℃ - 45℃
Efficiency	≥82%
Color	Black
Cabling route	Shaft center right/ left
Noise grade	≤55 dB
IP grade	IP65
Salt spray test standard	24/ 96 h
Drive and freewheel	6-9s
Weight	4kg

Dimension (Unit: mm)

Details

Tips: Why do you need a 10 inch gearless hub motor?

The use of 10 inch gearless hub motors can omit a large number of transmission components, making the vehicle structure simpler. For traditional vehicles, clutches, transmissions, drive shafts, differentials, and even transfer cases are all essential. These components are not only heavy and make the structure of the vehicle more complex, but also require regular maintenance. But RDDLZ 10 inch hub motor solves this problem well. In addition to the simpler structure, vehicles driven by in wheel hub motors can achieve better space utilization, and at the same time, the transmission efficiency is much higher.
