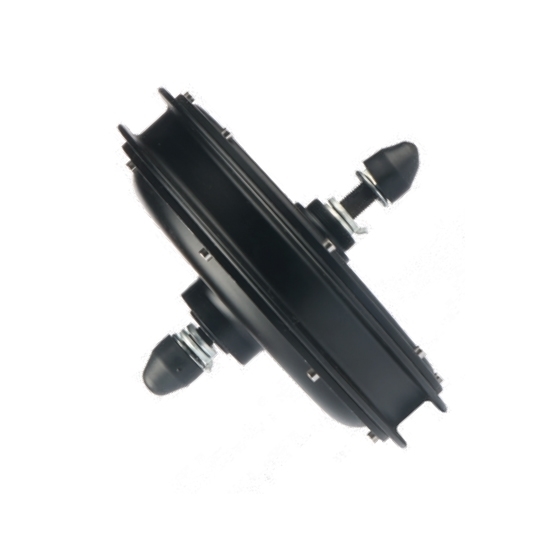

1000W Gearless Hub Motor, 36V/ 48V/ 60V/ 72V, 95 N.m

1000W Gearless Hub Motor, 36V/ 48V/ 60V/ 72V, 95 N.m
1000W Gearless Hub Motor, 36V/ 48V/ 60V/ 72V, 95 N.m
0 reviews • Write a review
from
$462.89
Ex Tax: $462.89
  • Stock: In Stock
  • Model: RDDLZ-GHM1000
  • Weight: 1.00
  • SKU: RDDLZ-GHM1000

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy best-selling brushless in wheel motor for your ebike. Rated voltage from 36V to 72V are provided. Gearless design, IP 65, 135mm dropout, 82% working efficiency.

Specification

ModelRDDLZ-205-35H2
Motor typeBrushless DC motor
Max. power350-1000W
Rated voltage36V/48V/60V/72V DC (optional)
Max torque45-55 N.m
Reduction ratio/
Installation positionRear
Motor structureGearless
Wheel diameter26 inch
Rated speed25-55 km/ h
Spoke specification36H*10G/13G
DropoutFront: 100mm, Rear: 135mm
Brake typeV/Disc brake
Operation temperature-20℃ - 45℃
Efficiency≥82%
ColorBlack
Cabling routeShaft Center Right/Left
Noise grade≤55 dB
IP gradeIP65
Salt spray test standard24/96 h
Drive and freewheel6-7s
Weight7kg

Dimension (Unit: mm)



Details

Tips: How to maintain the 1kw gearless hub motor?

As the name suggests, the hub motor is a new type of drive technology that installs the motor on the wheel. Its biggest feature is that the power, transmission and braking devices are integrated into the wheel hub, thus greatly simplifying the mechanical part of the electric vehicle. Due to the harsh working environment of the in-wheel motor, it faces many aspects such as water and dust. It also has higher requirements in terms of sealing. At the same time, the design of the 1000W in wheel hub motor also needs to consider the heat dissipation problem separately. Therefore, RDDLZ recommends that the focus of the maintenance of the hub motor is to achieve timely heat dissipation, and also to pay attention to the hygiene problems in harsh environments to ensure that its sealing is intact.
