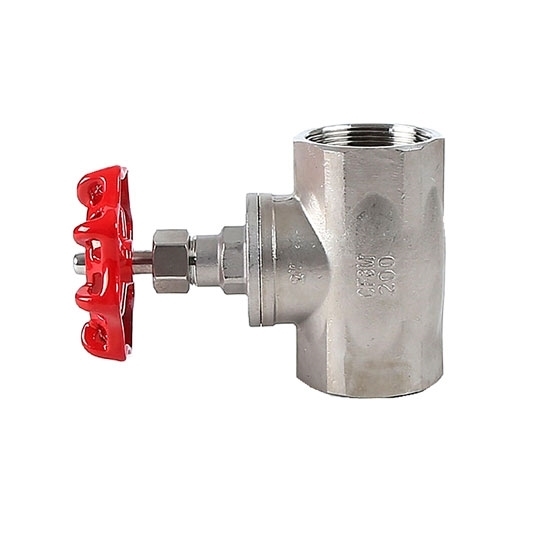

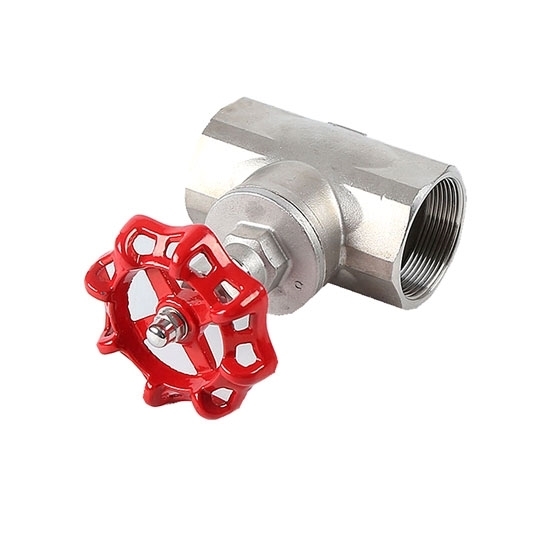

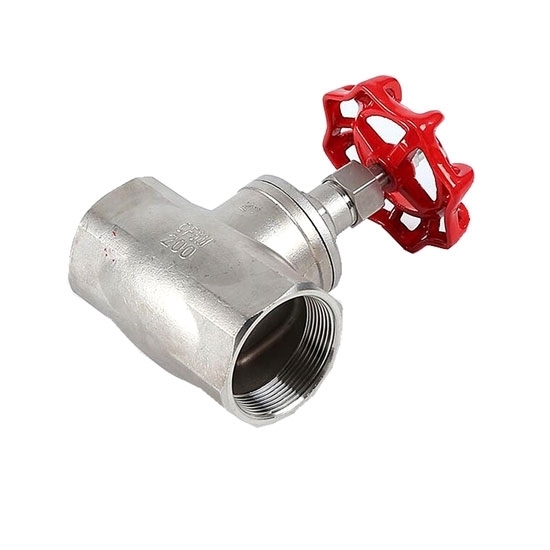

Stainless Steel Globe Valve, NPT, SS304/316

0 reviews • Write a review

from

$35.39

Ex Tax: $35.39

Stock: In Stock
Model: ATOWB-50
Weight: 1.00
SKU: ATOWB-50

Available Options

Material

Port Size

Thread Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Stainless Steel Globe Valve Features

Stainless steel full port globe valve.
Female National Pipe Taper (NPT) threads for use with male threaded pipes.
High temp silicone seals.
Full port, low operation torque, 304/316 stainless steel handle.
-20℃-+232℃, use for water, oil, air and some corrosive liquids.

Stainless Steel Globe Valve Specifications

Model	RDDLZWB-50
Thread standard	NPT, BSPT, DIN259, DIN2999, ISO228, CLASS A
Max pressure	1.6MPa
Temperature range	-20℃-+232℃
Suitable medium	water, oil, air and some corrosive liquids
200PSI (PN16) W.O.G
Material standard	S45C/ASTM A216Gr-WCB/DIN1.00619
	SS316/ASTM A351Gr-CF8M/DIN1.4408
	SS304/ASTM A351Gr-CF8/DIN1.4308

Stainless Steel Globe Valve Main Parts and Materials

1	Body	304/316
2	Petal	304/316
3	Stem	304/316
4	Gasket	PTFE
5	Cap	304/316
6	Washer	304/316
7	Nut	304
8	Ring	304
9	Handwheel	ALUMINUMALLOY
10	Gland Ring	304
11	Stem Packing	PTFE

Stainless Steel Globe Valve Main Outer Size

NPS (")	DN (mm)	L (mm)	H (mm)	D1 (mm)	Weight(kg)
1/2"	15	66	100	70	0.233
3/4"	20	80	106	70	0.37
1"	25	90	118	80	0.69
1 1/4"	32	105	134	80	0.79
1 1/2"	40	120	152	100	1.12
2"	50	141	172	100	1.84
