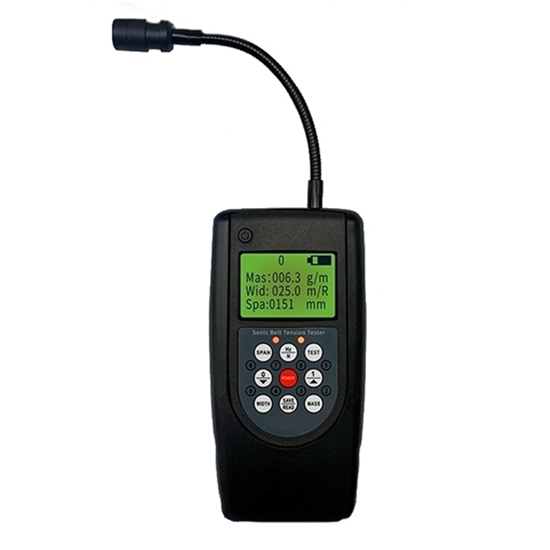

Sonic Tension Meter, 10-680 Hz

0 reviews • Write a review

from

$668.25

Ex Tax: $668.25

Stock: In Stock
Model: RDDLZ-TM680
Weight: 1.00
SKU: RDDLZ-TM680

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Sonic belt tension meter with ±5% accuracy, max frequency 680Hz. The sonic belt tension meter can be used to measure the vibration frequency of the transmission belt when it is hit or moving fast.

Specification

Model	RDDLZ-BTT2880S
Measuring Range	10-680 Hz
Free Segment Belt Length	Max. 999.9 mm
Belt Width	Max. 999.9 mm/ R
Belt Quality	Max. 999.9 g/m
Precision	±1 Hz＜100Hz, ±1%＞100Hz
Digital Sampling Error	＜1%
Display Error	±1 Hz
Total Error	＜5%
Operating Temperature	10℃~50℃
Transport Temperature	-5℃~70℃
Display	LCD
Units of Measurement	Hz/N
Power Supply	4*1.5V AAA
Shell	ABS
Meter Size	1407234mm

Details

Applications

Tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. RDDLZ tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

Tips: What does a sonic tension meter do?

Applicable to a V-belt, a V-ribbed belt or a synchronous belt, the device analyses sound waves from the belt through the sensor and delivers an accurate tension measurement without delay. This is essential for the optimum performance and reliability of your belt drives.
