Sonic Belt Tension Meter

0 reviews • Write a review

from

$476.98

Ex Tax: $476.98

Stock: In Stock
Model: RDDLZ-TM750
Weight: 1.00
SKU: RDDLZ-TM750

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

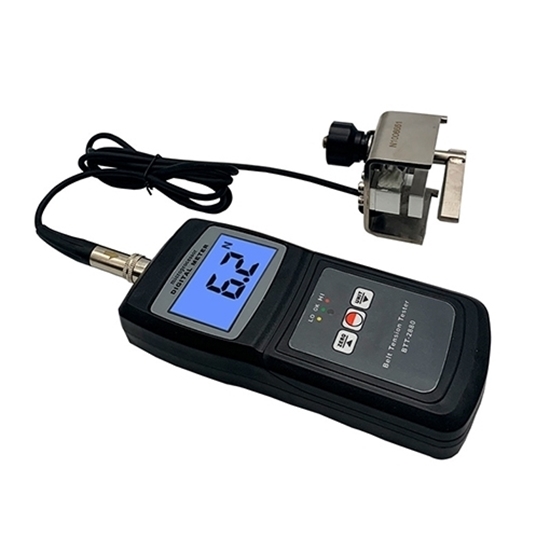

Buy an RDDLZ belt tension meter with a measuring range of 0~750N, accuracy of ±5% of full-scale, resolution ±1N, belt width up to 36 mm, overload alarm 750N, Max. load 850N. The high accuracy belt tension meter is widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

Specification

Model: RDDLZ-BTT2880
Measuring Range: 0-750N, 0-120lb, 0-77kg, 0-114seems
Total Error: ＜5%

Operating Temperature: 10℃~50℃
Transport Temperature: -5℃~70℃
Display: LCD

Units of Measurement: Hz/N
Power Supply: 4*1.5V AAA
Meter Size: 135*62*33mm

Dimension

Details

Applications

Tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. RDDLZ tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

Tips: How does a tension meter work?

Tension Meter measures belt tension by evaluating the harmonic characteristics of a vibrating rope or belt. Ropes and belts, vibrate at a specific natural frequency based on their mass, tension, and length.
