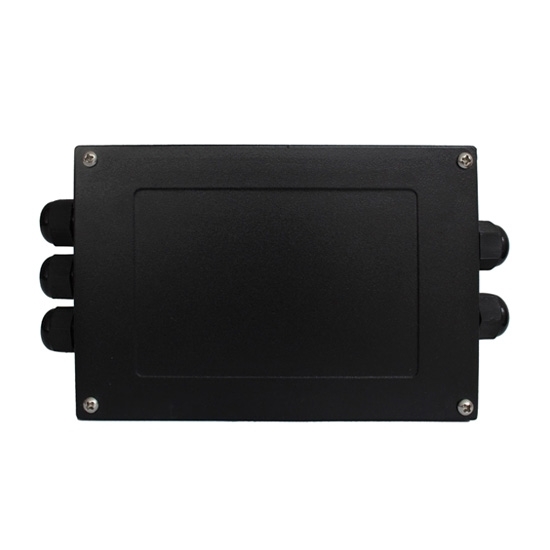

Load Cell Junction Box For Scales, 2/3/4/6/8/10 Inlets To 1 Outlet

Load Cell Junction Box For Scales, 2/3/4/6/8/10 Inlets To 1 Outlet
Load Cell Junction Box For Scales, 2/3/4/6/8/10 Inlets To 1 Outlet
Load Cell Junction Box For Scales, 2/3/4/6/8/10 Inlets To 1 Outlet
Load Cell Junction Box For Scales, 2/3/4/6/8/10 Inlets To 1 Outlet
Load Cell Junction Box For Scales, 2/3/4/6/8/10 Inlets To 1 Outlet
from
$66.67
Ex Tax: $66.67
  • Stock: In Stock
  • Model: RDDLZ-LCBOX-10I
  • Weight: 1.00
  • SKU: RDDLZ-LCBOX-10I

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

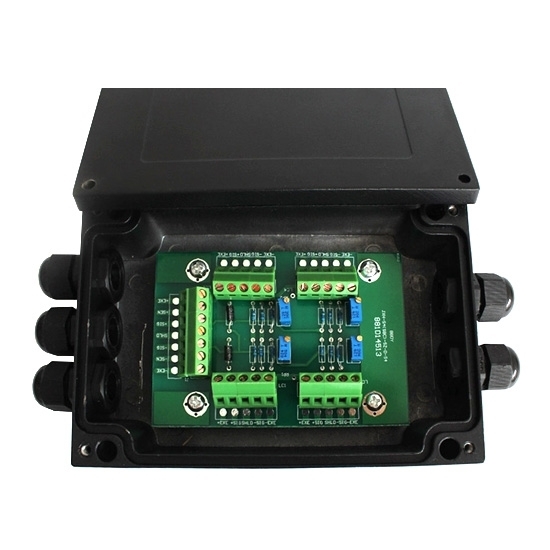

Load cell junction box has 2/3/4/6/8/10 inlets and 1 outlet, special for electronic truck scale, hopper weigher and other weighing instruments.

Specification:

ModelRDDLZ-LCJBX-JXH-S4
Accuracy±0.1%FS
Number of channels *2 inlets to 1 outlet, 3 inlets to 1 outlet, 4 inlets to 1 outlet, 6 inlets to 1 outlet, 8 inlets to 1 outlet, 10 inlets to 1 outlet
Multi-channel input signal0-20mV (including 2mV load cell output signal)
Output signal0-20mV
Power supplyDC 12V/24V
Working temperature-20~+85℃ (-4~+185℉)
Protection classIP67
Weight3 kg

Load cell junction box dimension (unit: mm):

Load cell junction box wiring diagram:
