Relay Module, 24V DC, 2/4/8/12/16/24/32 Channel

0 reviews • Write a review

from

$82.27

Ex Tax: $82.27

Stock: In Stock
Model: RDDLZ-RM-24
Weight: 1.00
SKU: RDDLZ-RM-24

Available Options

Number of Channels

Contact Form

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

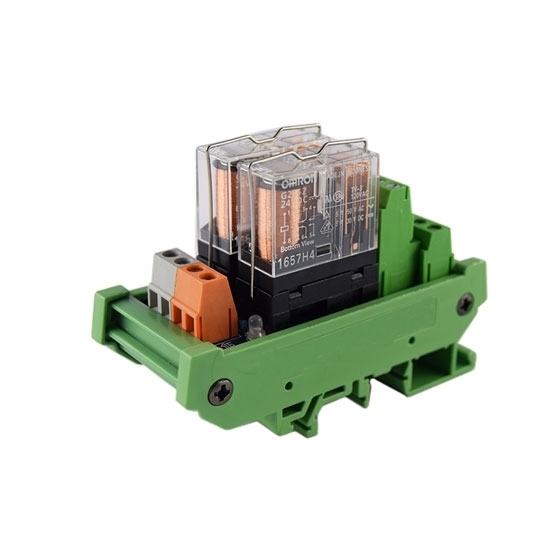

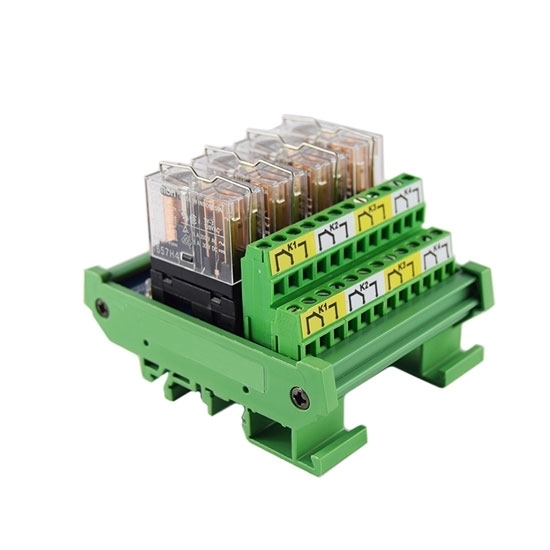

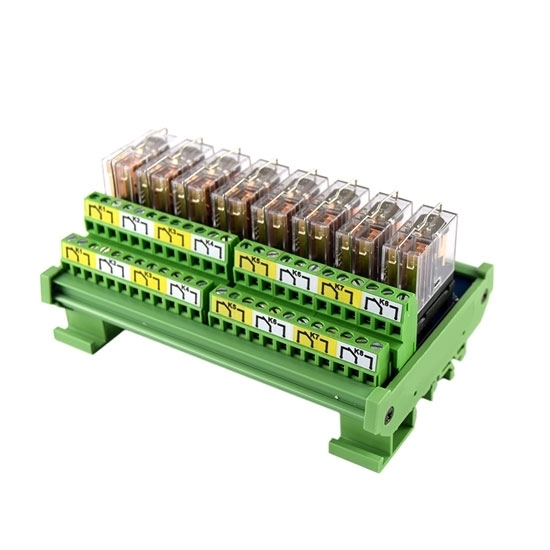

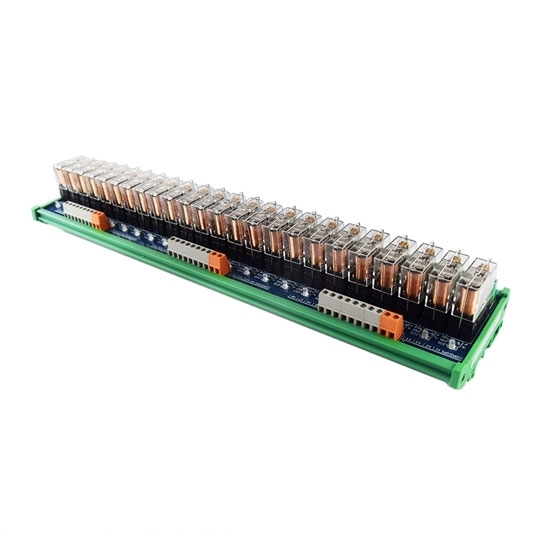

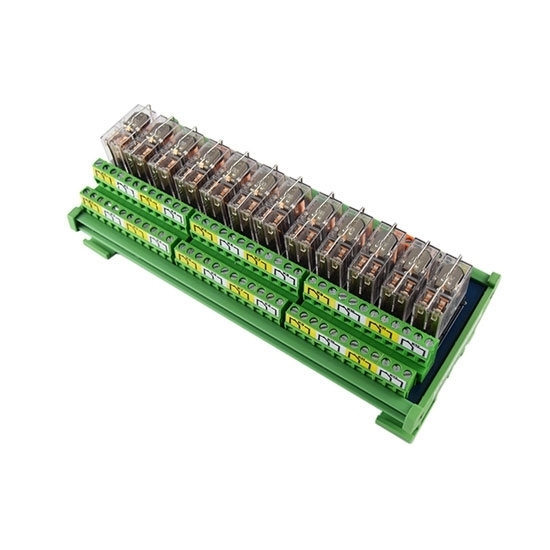

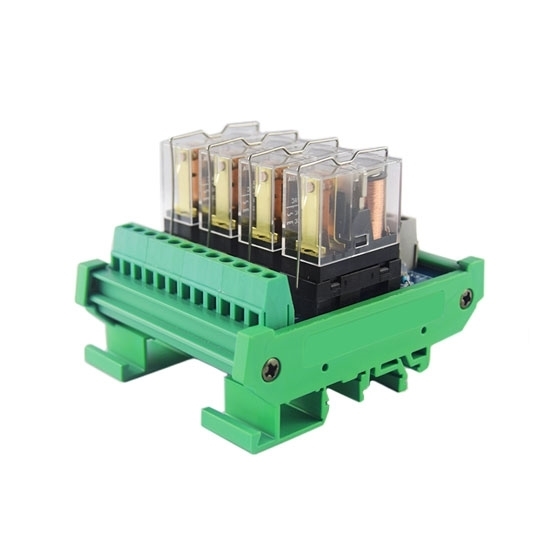

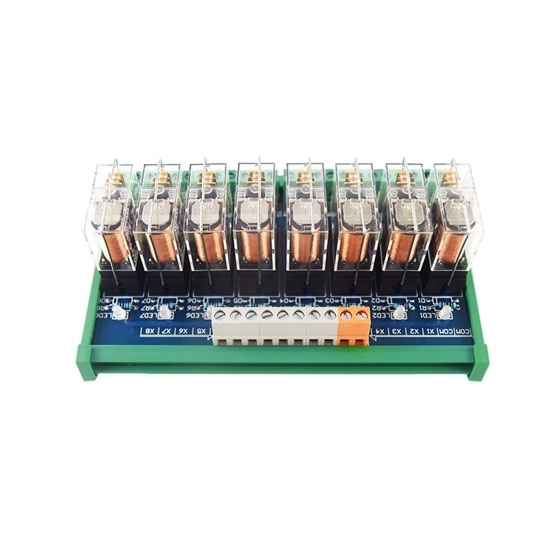

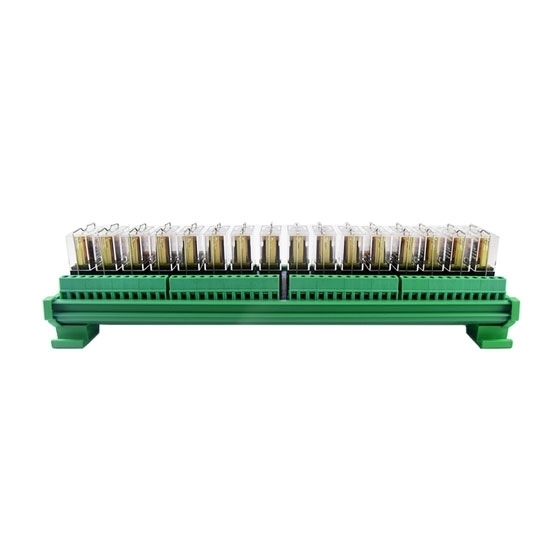

Cheap 24V relay moduel, adopts high-current relay (1NO+1NC or 2NO+2NC), available with 2 channel / 4 channel / 6 channel / 8 channel to 32 channel, LED indicator for working status, standard DIN rail mounting, widely used for all MCU control, industrial automation, PLC control, smart home control.

Specification

Model	RDDLZ-RM-24
Number of Channels (Optional)	2, 4, 6, 8, 10, 12, 16, 20, 24, 32 channel
Input Signal	Compatible with NPN (input 0v signal is valid), and PNP (input 24V signal is valid)
Input Drive Current	>30mA
Supply Voltage (Coil Voltage)	24V DC
Relay Contact Form (Optional)	1NO+1NC	2NO+2NC
Relay Max. Load Volatge	Resistive load: 10A 250VAC 12A 30VDC Inductive load: 7.5A 250VAC 5A 30VDC	Resistive load: 5A 250VAC 5A 30VDC Inductive load: 2A 250VAC 3A 30VDC
Indicator Light	When Input "COM" is connected to 0V and "X" to 24V, the LED indicator is red. (When "COM" is connected to 24V, LED light is blue.)
Installation	Standard rail mounting (Can be mounted on NS35/7.5 or NS32 guides)
Working Temperature	-20℃ ~ +70℃, non-condensing
Working Humidity	5% ~ 85%RH
Storage Temperature	-40℃ ~ +150℃
Size (LWH)	2 channel: 874065mm 4 channel: 877065mm 6 channel: 1078765mm 8 channel: 1348765mm 10 channel: 1708765mm 12 channel: 2008765mm 16 channel: 2648765mm 20 channel: 3308765mm 24 channel: 3938765mm 32 channel: 5438765mm
Weight	Approx. 0.5kg ~ 1kg

Details

Wiring Diagram

Relay module 1NO+1NC

Relay module 2NO+2NC

Tips: What is the role of the relay module?

The relay module integrates and serializes the single low-power relays in the electrical control cabinet, reducing the intermediate wiring links and improving the performance of the product. The relay module conforms to the development trend of miniaturization and integration, and is a replacement product of the original single relay. What’s more, the relay module can be designed according to different CNC systems, which can better meet the needs of modern CNC machine tools.

In the past, when we made an automated electrical control cabinet, the PLC control load will be added with a small intermediate relay. Now that industrial automation has developed toward integration, a relay module has been developed. PLC can directly control the coil of the relay module, and then the contact of the relay module can control the load. The advantage is that the relay module is small, accounting for only 1/2 of the volume of the small intermediate relay, and the contact current is still larger than that of the small relay, generally 10A, 12A, 16A, 30A. With varistor, when the relay is disconnected, the generated sparks play an arc extinguishing role, improving the life of the relay. In addition, it is very convenient to replace the damaged relay on the relay module. Like the small intermediate relay, the relay module is also equipped with a base, which can be plugged and replaced directly, and it is convenient to maintain. The relay module is also very convenient to connect, and the input and output are the same as the PLC It is separated, that is, the top is the input, and the bottom is the output.
