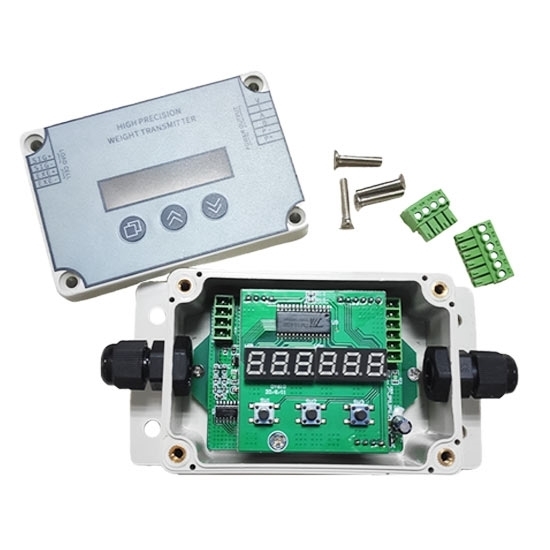

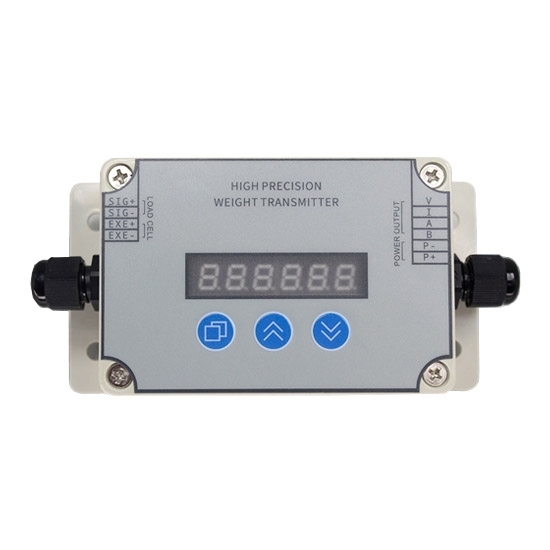

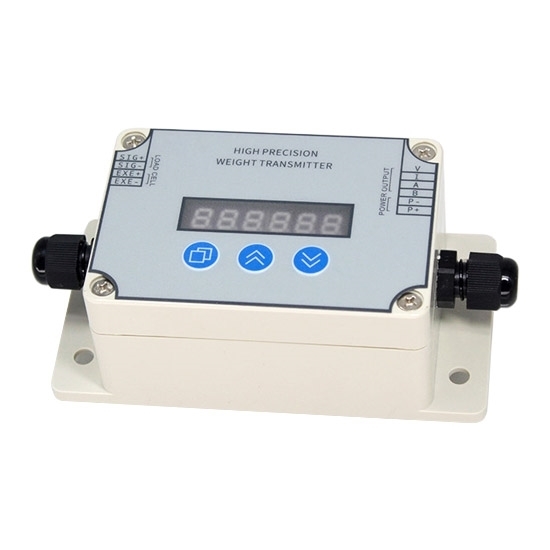

Digital Load Cell Amplifier, Output 4-20mA/0-10V/RS485
from
$109.85
Ex Tax: $109.85
- Stock: In Stock
- Model: RDDLZ-LCTR-OAR
- Weight: 1.00
- SKU: RDDLZ-LCTR-OAR
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Load cell amplifier has on-line calibration functions, output standard signal 4-20mA/0-5V/0-10V/RS485.
Specification:
Model | RDDLZ-S-LCTR-DY610 |
Accuracy | ±0.2%FS ±1 byte |
Input signal | 0~±20mV |
Excitation voltage for load cell | DC 5V |
Output signal * | DC 4-20mA, DC 0-5V, DC 0-10V, RS485 (Modbus-RTU), 4-20mA & RS485, 0-5V & RS485, 0-10V & RS485 |
Sampling rate | 60 times/s, 120 times/s |
Power supply | DC 12-30V |
Power consumption | <1W |
Display | 6 digit red LED, -99999~999999 |
Digital load cell Amplifier dimension drawing (unit: mm):
Load cell Amplifier wiring diagram:
