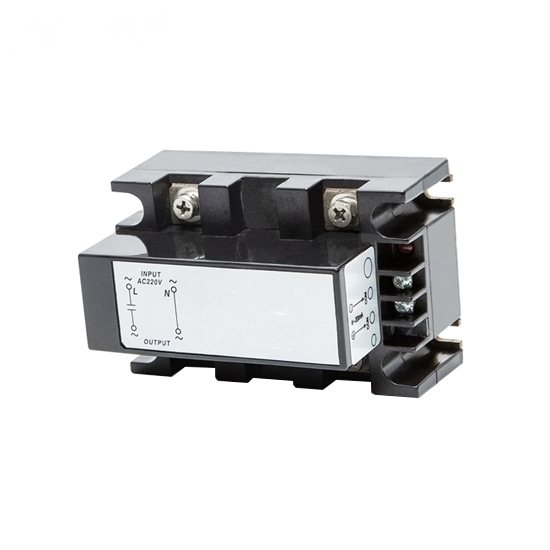

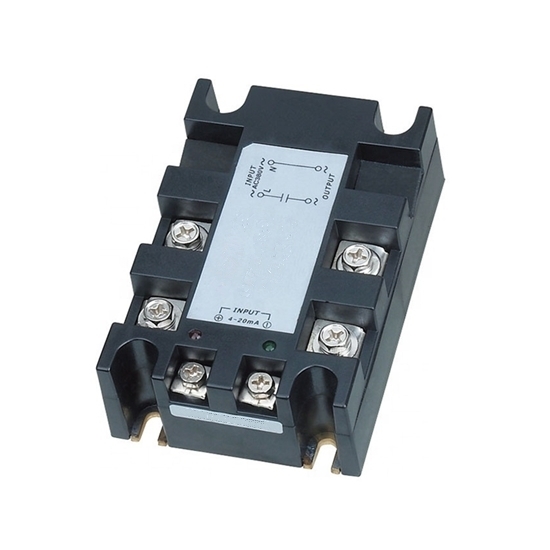

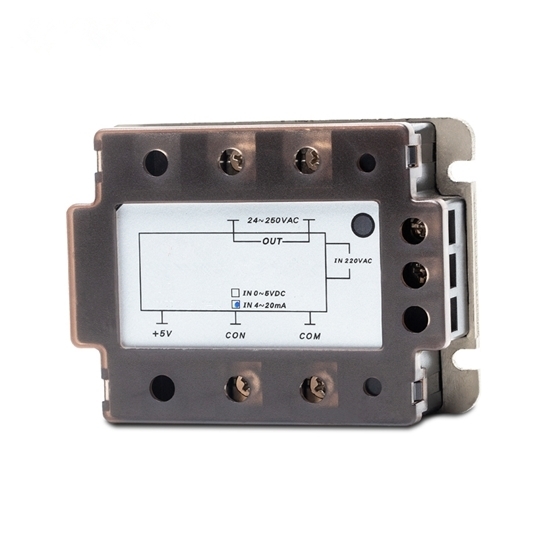

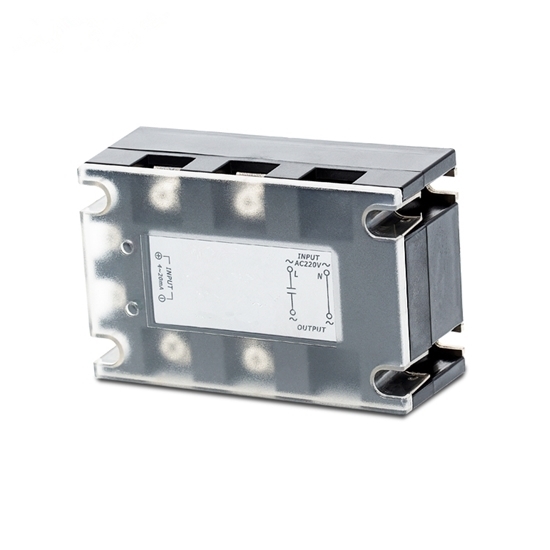

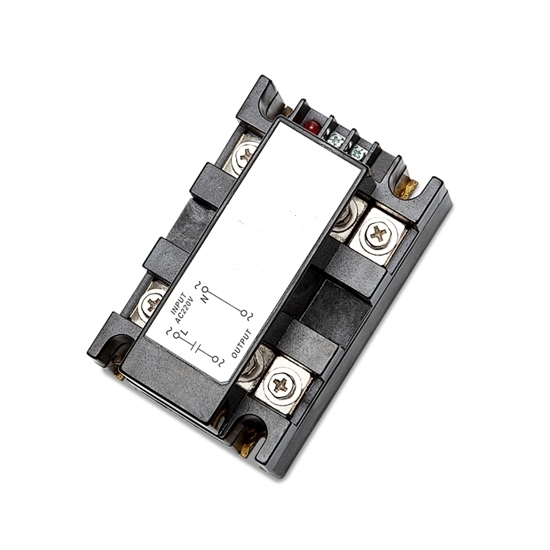

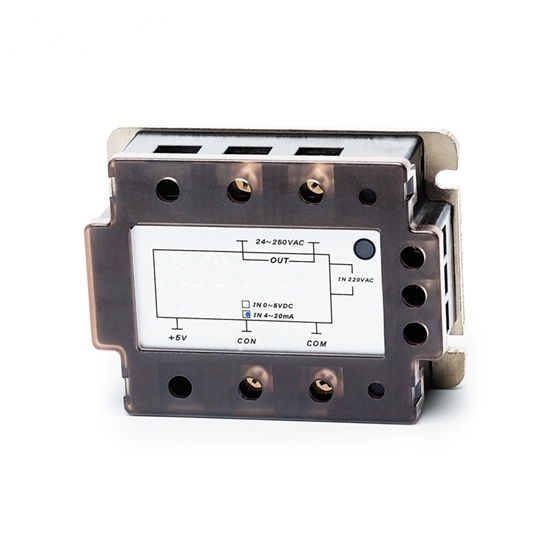

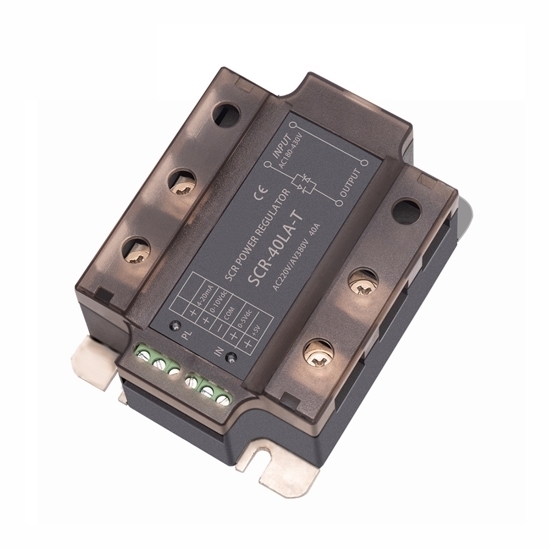

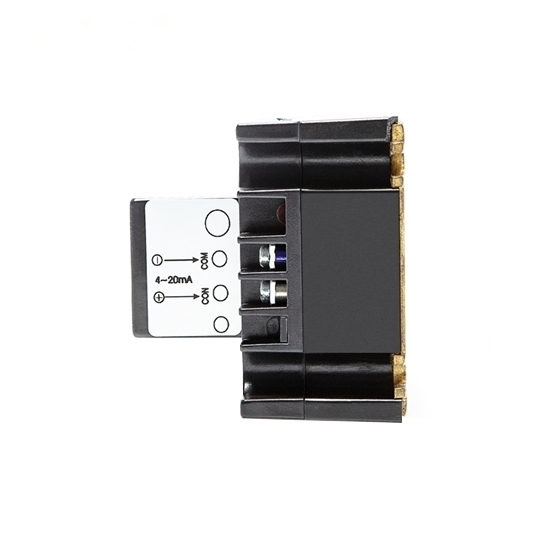

SCR AC Voltage Regulator Module

0 reviews • Write a review

from

$84.23

Ex Tax: $84.23

Stock: In Stock
Model: RDDLZ-VRGM-20
Weight: 1.00
SKU: RDDLZ-VRGM-20

Available Options

Rated Current

Textarea

Control Mode

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Internal feedback circuit has good linearity and voltage stability, high voltage resistance, high current resistance, and high temperature resistance.
Completely isolate weak and strong currents to ensure safe operation and control.
Widely used in chemical, food, machinery, packaging, textile equipment, CNC machine tools, entertainment facilities and other automatic control fields.

Specification

Model	RDDLZ-SCR-LA-T
Module Type	Single phase or 2-phase
Load Current (Optional)	25A, 40A, 75A, 90A, 120A
Load Voltage	180-430VAC
Ambient Temperature	-20℃~+75℃
Control Mode (Optional)	0-5VDC, 4-20mA
On Voltage	≤2V
Off Leakage Current	≤10mA
On-off Time	≤10mS
Dielectric Strength	2000VAC
Certification	CE
Insulation Resistance	500MΩ/500VDC
Mounting Method	Bolted
Work Instruction	LED

Wiring Diagram

Installation Dimension (Unit: mm)

Tips: Notes when using SCR AC regulator modules.

When wiring, be careful not to confuse the live (L) and neutral (N) wires in main circuit. Grid voltage cannot be lower than the lower limit of load voltage, otherwise the SCR regulator module cannot operate normally.
Resistive load must not exceed 60% of the regulator module rated current. Inductive or capacitive load cannot exceed 40% of the rated current. Motor load must not exceed 20% of the rated current.
Overcurrent and short circuit are the main causes of permanent damage to the thyristor. Therefore, pay attention to the overcurrent protection for SCR voltage regulator module. Current protection can be performed using fast-acting fuses or air switches.
When using the SCR voltage regulator module, corresponding heat sink should be equipped. When the load radiation conditions are not good, compensation should be increased, and short-circuit loads are not allowed.
