True RMS Current Sensor, AC/DC 1mA-5A Input, DC 0-20mA Output

0 reviews • Write a review

from

$186.96

Ex Tax: $186.96

Stock: In Stock
Model: RDDLZ-CUS-127S01
Weight: 1.00
SKU: RDDLZ-CUS-127S01

Available Options

Short Description

Power

Output

Input Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

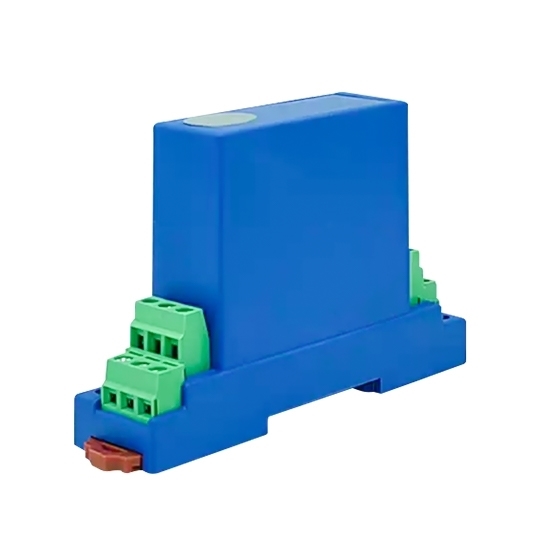

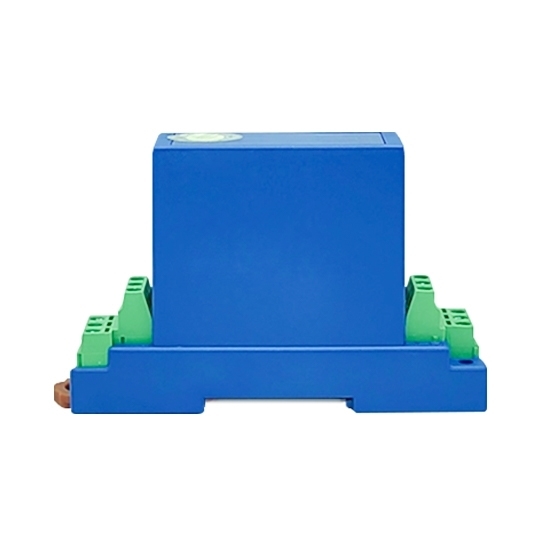

The True RMS current sensor measures AC/DC currents from 1mA to 5A, with output options of 0-20mA or 4-20mA. It offers 0.5 accuracy, a 6V load capacity, and a fast response time. Operating on DC +12V or +24V, it’s ideal for monitoring current in industrial, power, renewable energy, electric vehicle, HVAC, and automation systems.

Specification

Model	RDDLZ-WBI127S01
Input
Input Current	AC/DC 1mA, 5mA, 20mA, 50mA, 200mA, 500mA, 1A, 2A, 5A (expandable with external shunt resistor) (optional)
Allowable Overload	10 times the rated input current value, sustained for 1 second, with a 300-second interval, repeatable 5 times
Linear Measurement Range	0%~120% of rated input
Frequency Range	±DC/20Hz ~ 10kHz
Input Impedance	Ri = 50mV/kx (where x represents the measured current)
Output
Output Type	True RMS voltage output
Output Specifications	DC 0~20mA; 4~20mA (optional)
Accuracy Class	0.5
Load Capacity	6V
Response Time	< 250ms
Temperature Drift	300 x 10⁻⁶/°C
Other parameters
Auxiliary Power	DC +12V，+24V
Static Current	≤37mA
Isolation Characteristics	Inputs and outputs isolated, outputs powered
Isolation Withstand Voltage	DC 1.5kV，1min
Operating Temperature	0℃～50℃
Storage Temperature	-25℃～+70℃
Enclosure Protection Rating	IP20
Mean Time Between Failures (MTBF)	＞50000h
Enclosure Material (Acc. to UL94V-0)	Flame retardant ABS
Mounting	Snap-on construction for NS35/7.5, NS35/15 or European standard EN50022 rails or with M3 screws.
Weight	<90g

Note: Other parameters contact customer service.

Feature

Photonic Isolation Principle: Utilizes optical isolation to provide high-precision current measurements for both AC and DC inputs, ensuring safety and signal integrity.
High Accuracy & Wide Frequency Response: Provides precise current measurements across a wide frequency range, ensuring reliable data in applications with both sinusoidal and non-sinusoidal currents.
Low Drift and Low Power Consumption: Designed for minimal temperature drift (300 x 10⁻⁶/°C) and low power usage, making it highly efficient for long-term, continuous monitoring.
Wide Temperature Range: Operates effectively in a broad temperature range from -25°C to +70°C, suitable for use in diverse environmental conditions.
Compact and Simple Design: Features a modular, snap-in design for easy installation, allowing quick integration into existing systems.
Reliable and Easy Wiring: Equipped with PCB-fixed screw terminals for secure and convenient wiring. The terminal design ensures a stable connection, making it ideal for use in systems subject to vibration.
Vibration-resistant: The screw terminal connection and spring-loaded protection system ensure a secure and stable connection even in high-vibration environments.

Size (Unit: mm)

Wiring Method

Application

Tips: What is the temperature drift?

The temperature drift of the sensor is 300 x 10⁻⁶/°C, meaning that for every degree Celsius change in temperature, the sensor’s reading may shift by 0.0003%. This minimal drift ensures stable performance across a wide temperature range, making it reliable even in environments with temperature fluctuations, such as industrial settings or outdoor installations.
