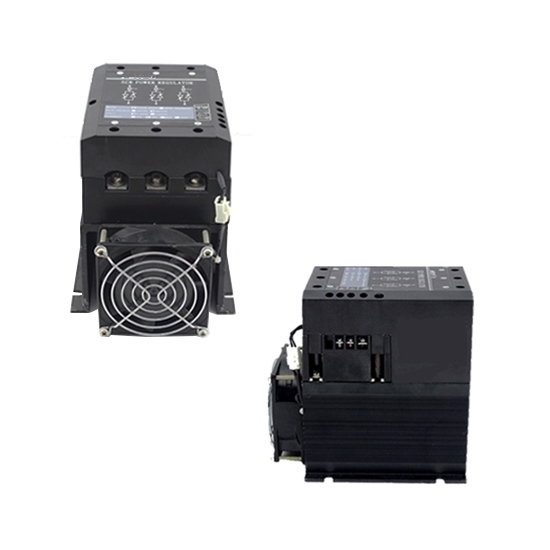

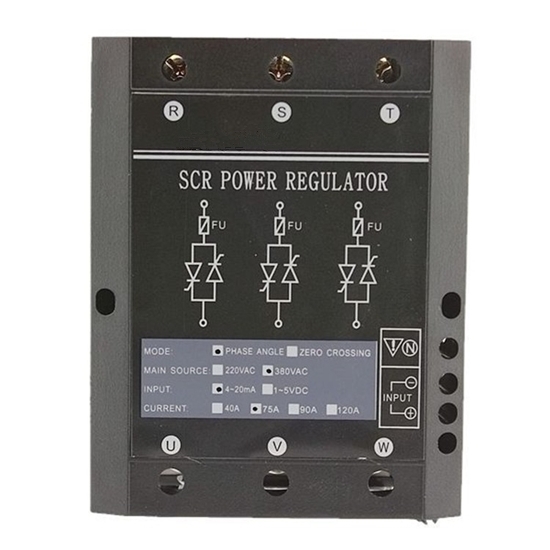

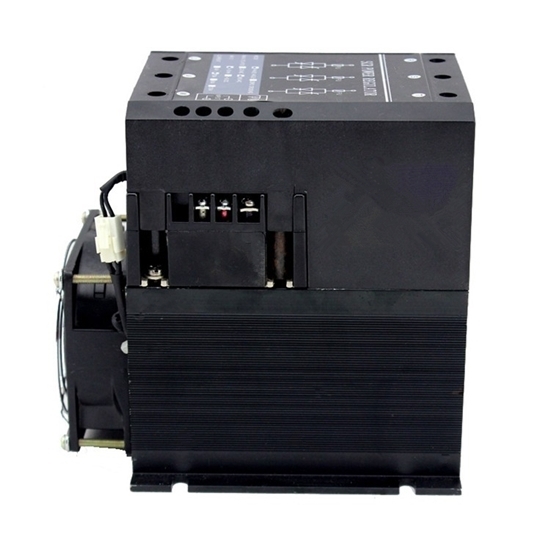

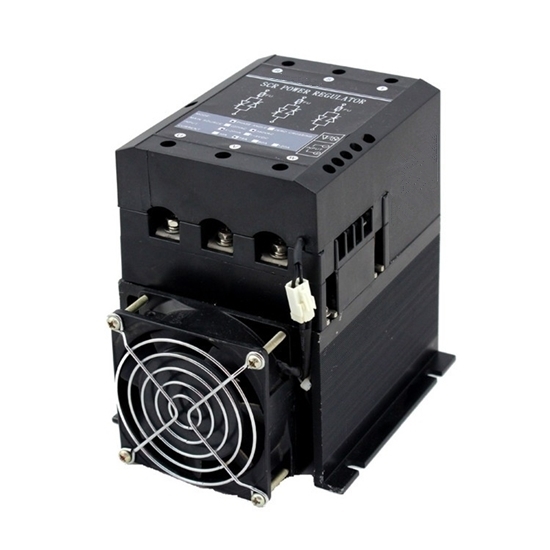

4-Wire 3-Phase SCR Power Regulator

0 reviews • Write a review

from

$192.62

Ex Tax: $192.62

Stock: In Stock
Model: RDDLZ-PRG-4340
Weight: 1.00
SKU: RDDLZ-PRG-4340

Available Options

Rated Current

Control Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Phase control: continuous intersection control, stable output, ammeter does not flutter, but half wave every cycle will generate harmonics.
Use load: constant impedance load, variable impedance load, IR lamp.
Zero-position control: Distributed zero-position control, minimum resolution is 1Hz, will not generate harmonics, and the ammeter appears jittering when output.
Applicable load: constant impedance load.

Specification

Model	RDDLZ-PRSCR-LA
Rated Voltage	3 Phase 380VAC, Fan 220VAC
Wiring	3-Phase 4-Wire
Rated Current (Should be at least twice the actual current)	40A, 75A, 90A, 120A
Control Signal	4-20mA, 0-5VDC, 0-10VDC
Protection Function	fast fuse
Operation Frequency	50Hz/60Hz
Certification	CE
Outline Dimension (LWH)	130mm126mm152mm
Installation Dimension (L*W)	90mm*116mm
Output Mode	phase output
Use Environment	temperature<45℃, humidity<90%RH

Wiring Diagram of 4-Wire 3-Phase SCR Power Regulator

Details

Precautions

Main circuit is 3-phase 4-wire input, no phase sequence is required.
SCR is high current product, please be sure to lock the (R.S.T) and (U.V.W) terminals, otherwise the terminals will heat up, causing e SCR burn out.
SCR has a built-in fast fuse for over current and short circuit protection. If the fuse is blown, be sure to replace it with fuse of the same specification. Be careful not to increase amperage of the fuse at will.
When using 3-phase load Y type connection, the center point of Y must be connected to zero line. If the center line of Y is not connected to zero line, the 3-phase load needs to be relatively balanced.
When using the module, if load power is high or heat dissipation conditions are not good, please consider air cooling.
