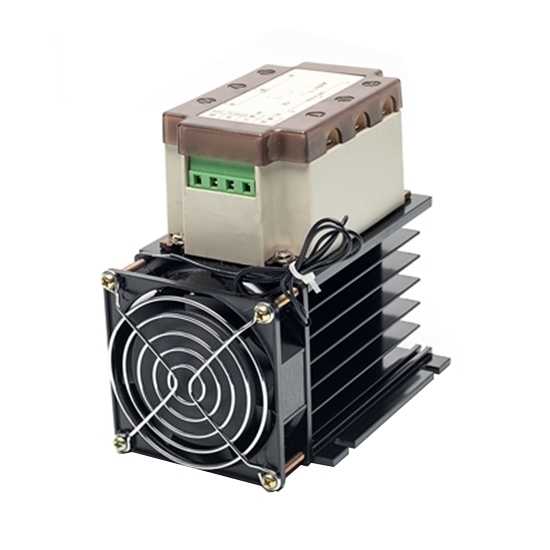

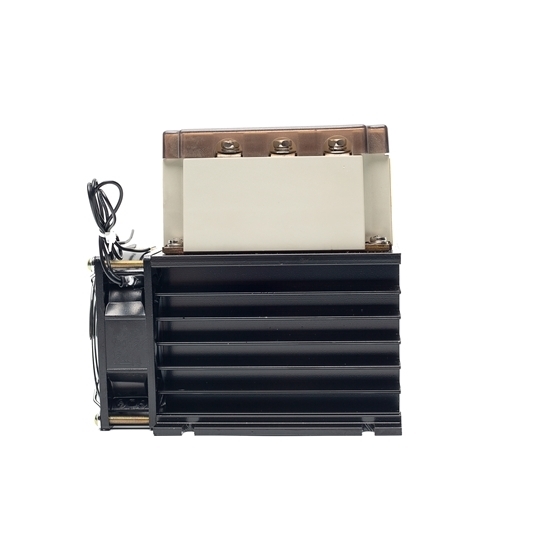

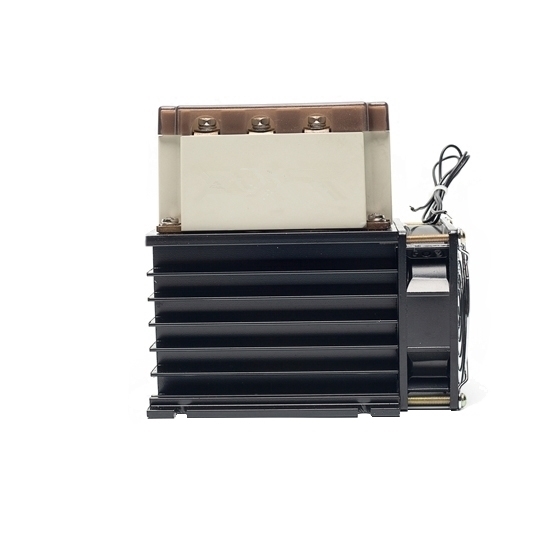

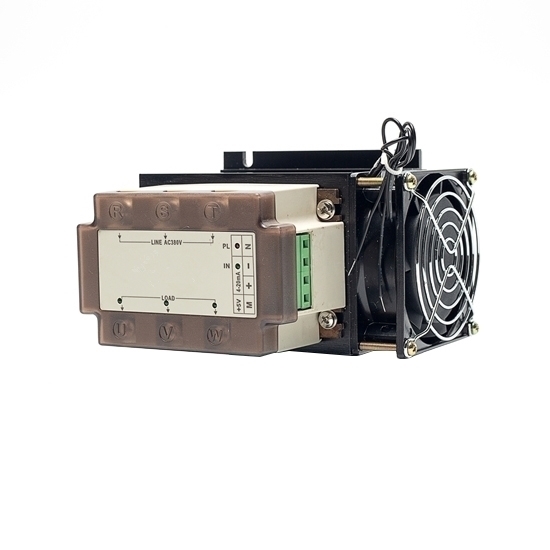

3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW

3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
3 Phase 4 Wires SCR Power Controller, 6/9/12/24kW
0 reviews • Write a review
from
$142.38
Ex Tax: $142.38
  • Stock: In Stock
  • Model: RDDLZ-PRG-KW
  • Weight: 1.00
  • SKU: RDDLZ-PRG-KW

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Application

  • Electric furnace industry: oven, drying, vacuum, trolley electric furnace, aging treatment, heat treatment, etc.
  • Machinery: packaging, extrusion, injection molding, infrared heating, etc.
  • Chemistry industry: pipeline heating, temperature compensation, petrochemical, etc.
  • Automotive industry: spray drying, thermoforming, etc.

Specification

ModelRDDLZ-SCR3-KW-3/4
Rated Voltage3 Phase 380VAC, Fan 220VAC
Wires3 Phase 4-Wire
Rated Power6kW, 9kW, 12kW, 24kW
Control Signal4-20mA, 0-5VDC, 0-10VDC
Product TypeSimple Type
Operation Frequency50Hz/60Hz
CertificationCE
Outline Dimension (L*W*H)140mm*100mm*145mm
Installation Dimension (L*W)80mm*90mm
Output Modephase output
Use Environmenttemperature<45℃, humidity<90%RH

Wiring Diagram of 3 Phase 4-Wire SCR Power Controller

Dimension Drawing of 3 Phase 4-Wire SCR Power Controller (mm)

Details

Precautions

  1. Main circuit adopts 3-phase 4-wire input, no phase sequence is required.
  2. SCR is high current product, please be sure to lock the (R.S.T) and (U.V.W) terminals, otherwise the terminals will heat up and the SCR will burn out.
  3. When using 3-phase load Y type connection, the center point of Y must be connected to zero line. If the center line of Y is not connected to zero line, the 3-phase load needs to be relatively balanced.
  4. When using the module, if load power is greater than 15kW, it is recommended to use a suitable heat sink, and apply thermal silicone grease between the heat sink and the SCR base plate, and use air cooling. When power is greater than 15kW, be sure to strengthen the use of heat sink.
  5. Module protection: Please use semiconductor fast fuse for load overcurrent protection.
