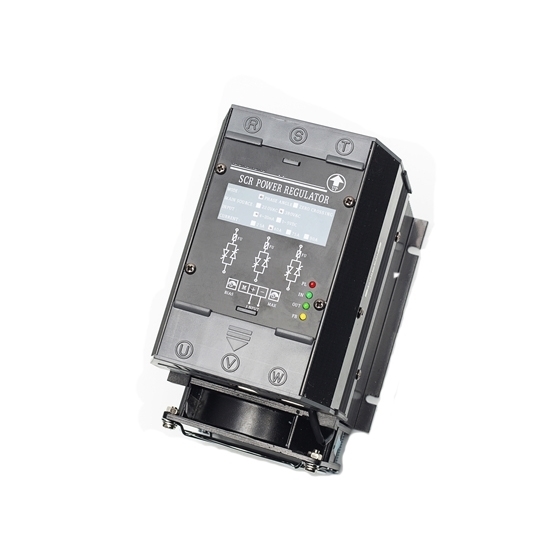

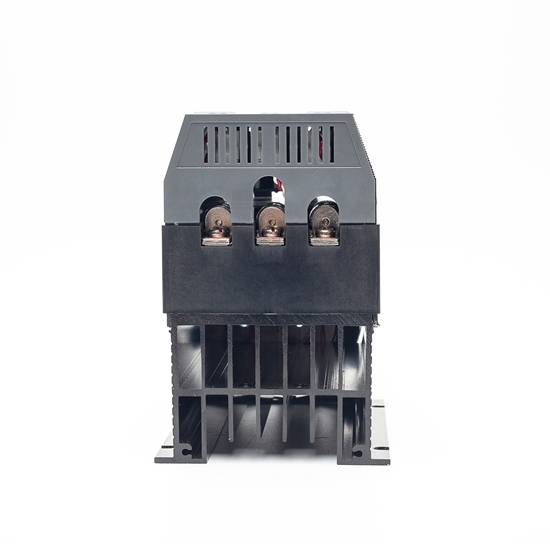

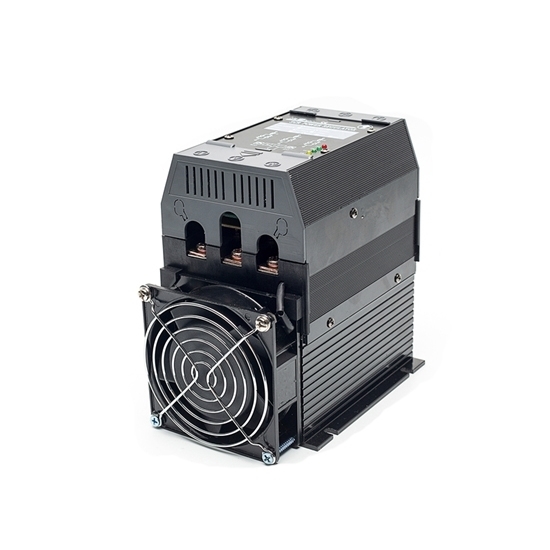

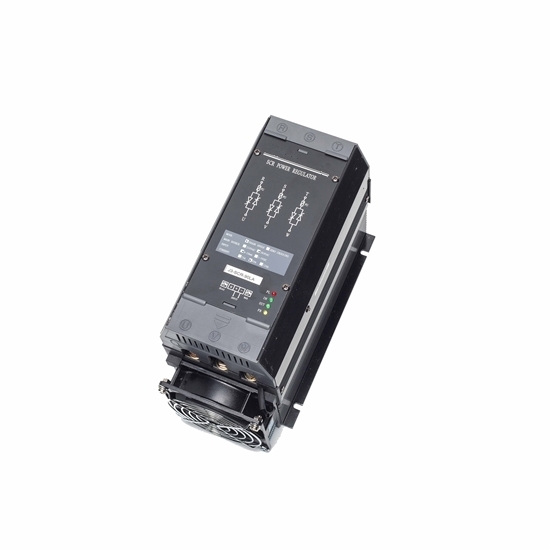

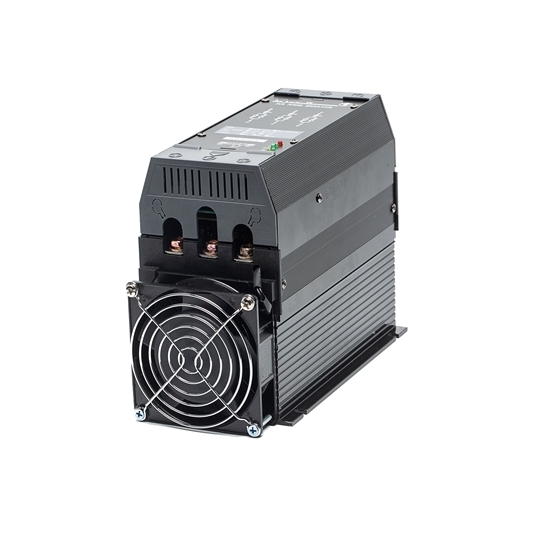

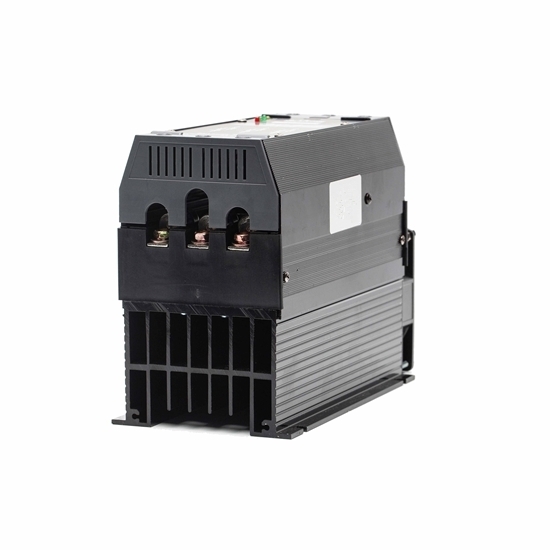

3 Phase 3-Wire SCR Power Regulator

0 reviews • Write a review

from

$187.46

Ex Tax: $187.46

Stock: In Stock
Model: RDDLZ-PRG-3320
Weight: 1.00
SKU: RDDLZ-PRG-3320

Available Options

Rated Current

Control Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Linear phase shift control circuit control circuit, good stability and high accuracy. Modular, high pressure resistant, anti-interference.
Protection method is built-in fast fuse.
Adopts vacuum welding technology, optimized heat dissipation, good quality, long service life, safety and reliability.
With multi-function LED to indicate working status.

Specification

Model		RDDLZ-AYSCR-LA		RDDLZ-J3SCR-LA
Rated Voltage		3 Phase 380VAC		3 Phase 380VAC
Wires		3 Phase 3-Wire		3 Phase 3-Wire
Rated Current (Should be at least twice the actual current)		25A	40A	75A	90A
Load	Y connection method (220V AC)	8kW	13kW	23kW	30kW
	▲ connection method (380V AC)	14kW	22kW	40kW	50kW
Auxiliary Power		-		220VAC
Control Signal		4-20mA, 0-5VDC, 0-10VDC		4-20mA, 0-5VDC, 0-10VDC (3 ways can switch)
Protection Function		fast fuse
Certification		CE
Operation Frequency		50Hz/60Hz
Output Mode		phase output
Use Environment		temperature<45℃ humidity<90%RH

Star (Y) Type Wiring Diagram of 3 Phase 3-Wire SCR Power Regulator

Triangle Wiring Diagram of 3 Phase 3-Wire SCR Power Regulator

Details

Precautions

Main circuit uses 3-phase 3-wire input, no phase sequence is required.
SCR is high current product, please be sure to lock the (R.S.T) and (U.V.W) terminals, otherwise the terminals will heat up and the SCR will burn out.
SCR has a built-in fast fuse for over current and short circuit protection. If the fuse is blown due to overcurrent, first check the load for faults such as short circuit and partial discharge. After troubleshooting, open the panel and replace it. Be sure to replace it with fuse of the same specification. Be careful not to increase amperage of the fuse at will.
When using the load Y type wiring method, center point cannot be connected to zero line, otherwise the SCR will lose control. If 3-phase load is unbalanced, center point must be connected to zero line.
