- Stock: In Stock
- Model: RDDLZ-RDP-2850LPM
- Weight: 1.00
- SKU: RDDLZ-RDP-2850LPM

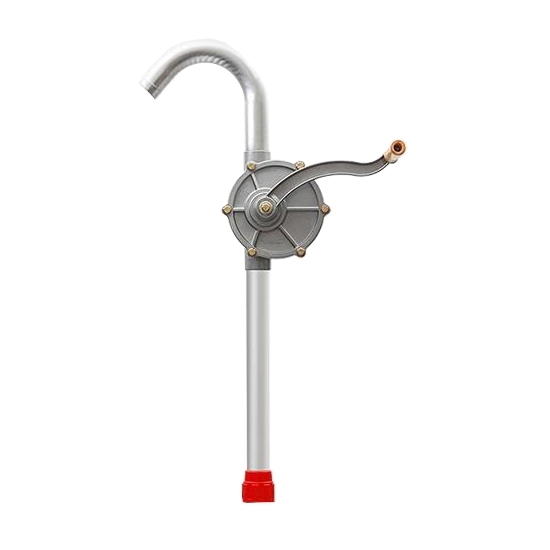

Rotary drum pump is a manually operated device designed to transfer oil from drums or barrels efficiently and safely. This manual oil pump operates through a rotary mechanism, involving a rotor and vanes, which creates a vacuum to draw the oil into the pump and then pushes it out through the discharge port.
Specification
| Model | RDDLZ-25MM-SJJQ | RDDLZ-32MM-SJJQ |
| Type | Hand Operated Pump | |
| Material | Aluminum Alloy | |
| Number of Pumping Pipe Sections | 3 Sections | |
| Oil Outlet Diameter | 25mm (1 inch) | 32mm (1-1/4 inch) |
| Oil Inlet Diameter | 32mm (1-1/4 inch) | 36mm |
| Total Length | 1300mm | 1340mm |
| Flow Rate | 28 L/min | 50 L/min |
| Number of rotations | 70 rpm | 65 rpm |
| Liquids Can be Pumped | Lamp Oil, Clean Oil, Heavy Oil | |
| Weight | 1.5kg | 2kg |

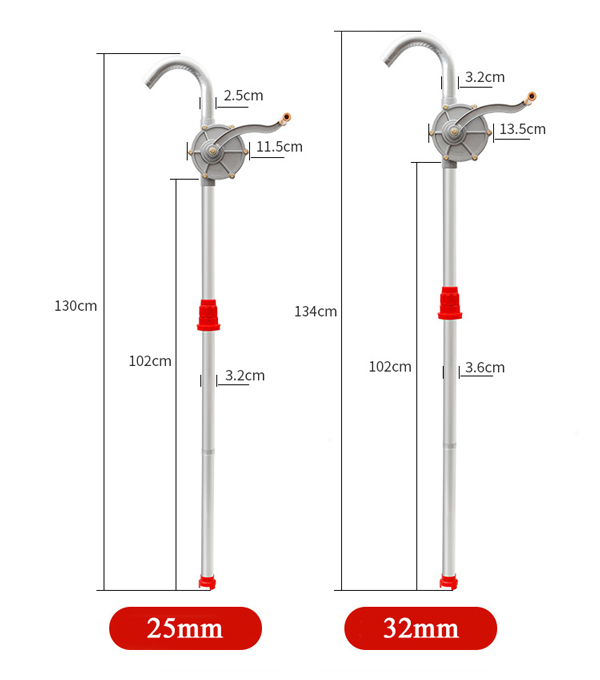

Dimension
Tips: Rotary drum pump applications
Hand rotary drum pumps are hand tools used for transferring liquids from drums, barrels, and other large containers. They are widely employed in various industries due to their efficiency and ease of use. Common applications include the chemical industry for handling corrosive and hazardous substances, the food and beverage sector for dispensing syrups, oils, and other food-grade liquids, and the pharmaceutical industry for transferring solvents and other chemicals. These pumps are also essential in the automotive industry for dispensing lubricants, oils, and fuels, and in agriculture for transferring fertilizers and pesticides. Manual rotary drum pumps are valued for their ability to handle a wide range of viscosities, making them suitable for both light and heavy-duty tasks. Their design ensures minimal spillage and contamination, which is crucial for maintaining safety and product integrity in various applications.
