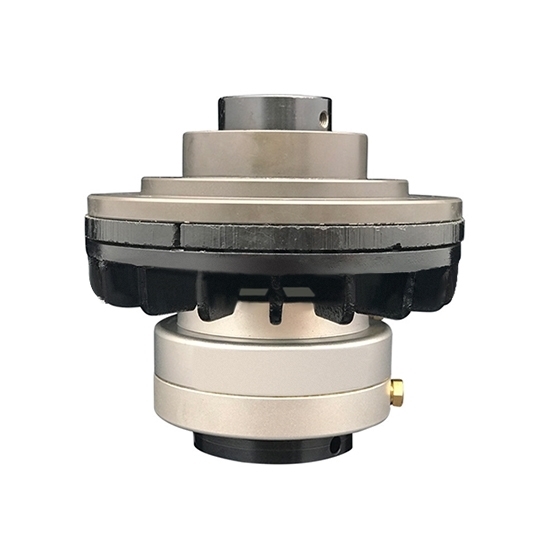

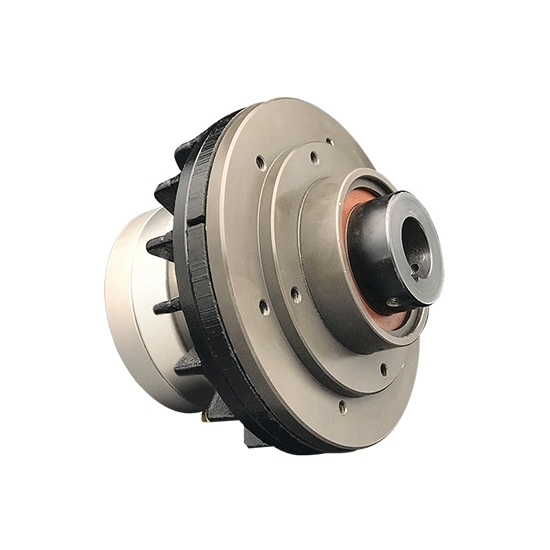

Pneumatic Clutch, Shaft Mounted, 50Nm-400Nm

0 reviews • Write a review

from

$342.78

Ex Tax: $342.78

Stock: In Stock
Model: RDDLZ-PCB-NAC
Weight: 1.00
SKU: RDDLZ-PCB-NAC

Available Options

Short Description

Static Torque

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The pneumatic clutch provides static friction torque of 50Nm to 400Nm at 0.6MPa and is widely used across various industries, including printing, packaging, textiles, rubber, and food machinery. It is suitable for a range of industrial equipment, such as stranding machines, automation machines, coating machines, and paper-making machinery.

Features

The torque adjustment range is extensive, allowing for broad adjustments through air pressure regulation.
Pneumatic clutch is safe and reliable, with no electrical sparks generated during operation.
Suitable for high-frequency and continuous slip conditions, it demonstrates excellent durability even under heavy loads and can function as a torque limiter.
By adjusting air pressure, pneumatic clutch achieves smooth pneumatic operation, minimizing impact on the system.
With good heat dissipation, the friction pads experience minimal wear, resulting in a long service life and easy maintenance.
Its compact design allows for the pulley to be integrated with the clutch, facilitating user convenience.

Specification

Model		RDDLZ-NAC-5	RDDLZ-NAC-10	RDDLZ-NAC-20	RDDLZ-NAC-40
Static friction torque (kgm/(Nm))	At 0.6Mpa	5 (50)	10 (100)	20 (200)	40 (400)
Volume of air chamber (cm³)	Minimum Vn	5.359	10.56	15.38	20.42
Volume of air chamber (cm³)	Minimum Vo	14.01	32.78	59.52	86.01
Permissible wear of friction plate Vf (cm³)		25.58	58.85	103.62	148.2
Rotation speed limit Nc (r/min)		1800	1800	1700	1700
Moment of inertia J (kg·m²)	J₁	4.14×10^-3	1.637×10^-2	4.21×10^-2	4.21×10^-2
Moment of inertia J (kg·m²)	J₂	4.61×10^-3	1.851x10^-2	5.28×10^-2	5.28x10^-2
Weight (approximately)		5kg	12kg	18kg	22kg

Vn: Air chamber volume with new friction pads
Vo: Air chamber volume before the friction pads are replaced
J₁: Inertia value of the part rotating with the V-type pulley
J₂: Inertia value of the part rotating with the shaft

Dimension (mm)

Model	RDDLZ-NAC-5	RDDLZ-NAC-10	RDDLZ-NAC-20	RDDLZ-NAC-40
A (H7)	25	35	40	50
B	153	205	244	258
C	142	185	196	226
D	110	140	150	164
E (h7)	76	105	110	125
F	47	67	70	82
G	98	136	160	175
H	32	38	46	51
J	18	22	32	40
K	7	17	20	24
L	6	9	9	8
M	24	30.5	25	38
N	M6x0.75	M10x1.25	M10x1.25	M10x1.25
R	M6	M8	M10	M10
RR	11	14	16	16
S	95	125	130	145
T	6	10	12	12
U	27.8	38.3	44	53.3
Key	6x6x30	10x8x40	12x8x60	12x8x60

Note: The shaft hole size can be customized according to customer needs, but cannot be larger than the value in the table.

Install Instance

Structure

Tips: Working principle of pneumatic clutch

The working principle of the pneumatic clutch is as follows: when air is supplied, the piston pushes the disc to compress the friction pads, engaging the clutch. When the air supply is cut off, the reset spring causes the disc to separate from the friction pads, disengaging the clutch. Additionally, the friction pads are designed in a half-open configuration, making them easy to replace.
