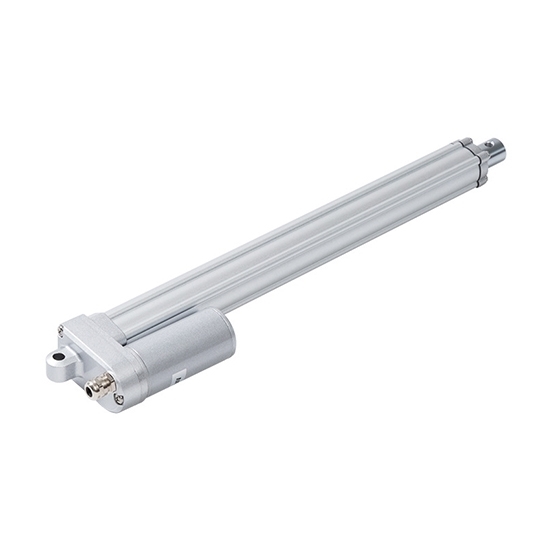

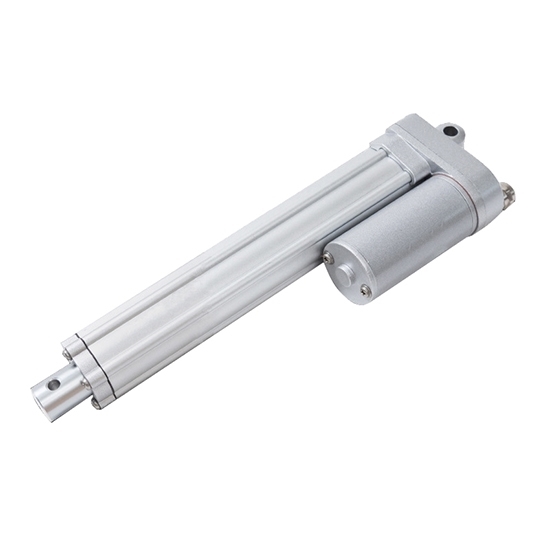

Mini Linear Actuator, 12V/24V, 800N, 150mm Stroke

0 reviews • Write a review

from

$132.89

Ex Tax: $132.89

Stock: In Stock
Model: RDDLZ-LACTU-800
Weight: 1.00
SKU: RDDLZ-LACTU-800

Available Options

Short Description

Voltage (V)

Load Capacity

Stroke

Feedback Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Mini linear actuator is a small and compact unit capable of lifting low to medium forces. The provided actuator max load is 800N in pull/push, 12V/24V DC four voltage options are available, it can be used with any application that requires moving something in a straight line.

Electric Linear Actuator Specifications

Model	RDDLZ-DJ806
Max. Dynamic Load	800N
Max. Self-locking	1200N
Input Voltage	12V DC, 24V DC, 36V DC, 48V DC (Option)
Rated Power	0.2kW
Rated Speed	4000 rpm
Lead Screw	Acme Screw
Operation Mode	Electrical
Stroke Range	50-1000mm
Stroke Accuracy	±3mm
Duty Cycle	25%
Motor Type	Brushed DC
Application	Industrial
Operational Temp.	-10℃ to 65℃
Operating Noise	≤65 dB
Weather Protection	IP66
Overload Protection	None (standard)
Position Feedback	None (standard), Endstop signal, Potentiometer for optional
Weight	2kg

Linear Actuator Load and Speed Selection

Code	Max. Dynamic Load	Max. Self-locking	Reduction Ratio	Pitch	Speed±10% (mm/s)		Max.stroke without potentiometer
Code	(N)	(N)	---	(mm)	No Load	Full Load	(mm)
A	200	300	5:1	3.17	40	22	1000
B	100	150	5:1	5	60	45	1000
C	50	100	5:1	7.5	80	65	1000
D	600	900	20:1	3.17	10.5	7	1000
E	500	800	20:1	5	16.5	12	1000
F	250	400	20:1	7.5	25	20	1000
G	1000	1500	30:1	3.17	7.2	5	1000
H	700	1000	30:1	5	11.5	8.5	1000
I	400	600	30:1	7.5	17	13.5	1000
J	1200	1700	40:1	3.17	5.5	4	1000
K	800	1200	40:1	5	8.5	6.5	1000
L	450	700	40:1	7.5	13	10	1000

Note:

Measurements are made with actuators in connection with stable power supplies and ambient temperature at 20°C.
For example, when real load is 800N, choosing code (K) is fine. Of course, you can also choose (G) or (J) which come with more load buffer, higher safety factor and longer product service time.
There are many factors affecting the "customizable maximum stroke", such as load, speed, force direction, etc., so the real application scenarios should be considered. If the parameters you required are not listed, please contact our sales engineers.

Linear Actuator Standard Dimension (mm)

Front Mount. Ends	Rear Mount. Ends	A	B	S	L
F01	R01	Sideway cable outlet	Bottom cable outlet	Stroke	Install Length
A≥S+105
S=50~299mm, B+0mm
S=300~499mm, B+15mm
S≥500mm, B+25mm
L≥A+B

12V/24V/36V/48V Linear Actuator Current-Load Curve

Limit Switches without signal feedback

Power Wire Coding
/	Brown	Red
Extend	-	+
Retract	+	-

Endstop Signal

Power Wire Coding
/	Brown	Blue
Extend	-	+
Retract	+	-
Signal Wire Coding
Black	Extend / Retract limit, N.O.
Red	Extend / Retract limit, N.C.
Yellow	Extend limit. COM.
White	Retract limit. COM.

Potentiometer

Code	Max. Stroke	Resistance Value per mm
A, D, G, J	200 mm	0.047 KΩ
B, E, H, K	300 mm	0.030 KΩ
C, F, I, L	450 mm	0.020 KΩ

Tips: Difference between linear actuator and electric-hydraulic pusher

Linear Actuator

The linear actuator has novel and delicate design, small size, high precision, complete synchronization, good self-lock performance, sanitary, direct motor driving, and requires to gas source or oil pipe.
Application of linear actuator: widely used in the seat backrest lift in the plane, ship and luxury car, as well as the straight line pushing and expansion of the massage chair, massage bed, fire-fighting equipment, medical equipment, furniture and so on.

Electric-hydraulic Pusher

The electric-hydraulic pusher hydraulic control valve is mainly constituted by the overflow valve, oil absorption one-way valve, speed regulating valve, hydraulic control one-way valve (hydraulic lock) and so on. The oil loop combination valve of different functions can be designed according to the working characteristics of the electric-hydraulic pusher, so as to meet its working requirement.
Application of electric-hydraulic pusher: Widely used in metallurgy, mining, power, coal, machinery, transportation, food, chemical, cement, water conservancy, building material, transportation and other departments.

Both linear actuator and electric-hydraulic pusher are machinery in straight line movement. The difference is that one is the electromechanical liquid and the other is the electromechanical equipment. The main difference is that electric-hydraulic pusher is in liquid transmission, thus having unstable speed, poor accuracy, and liquid leakage after being used for a long period. The liquid has to be supplemented from time to time, so as to cause wastage and pollution.
