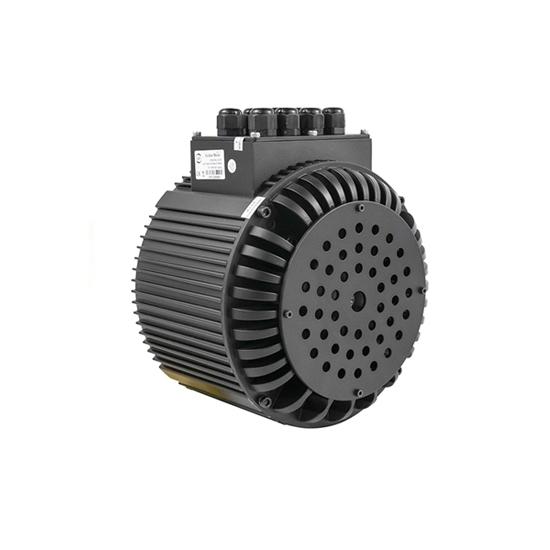

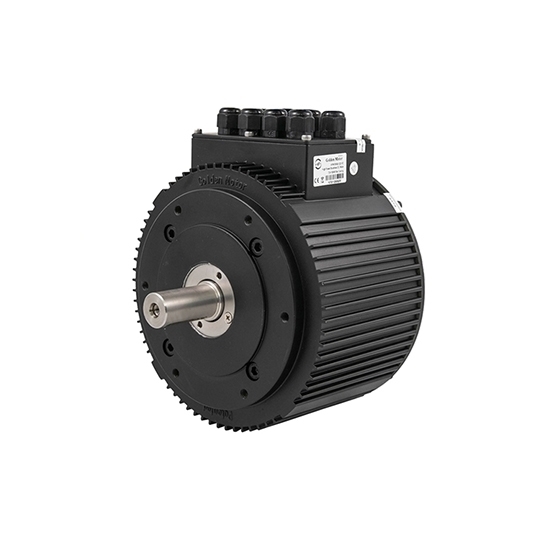

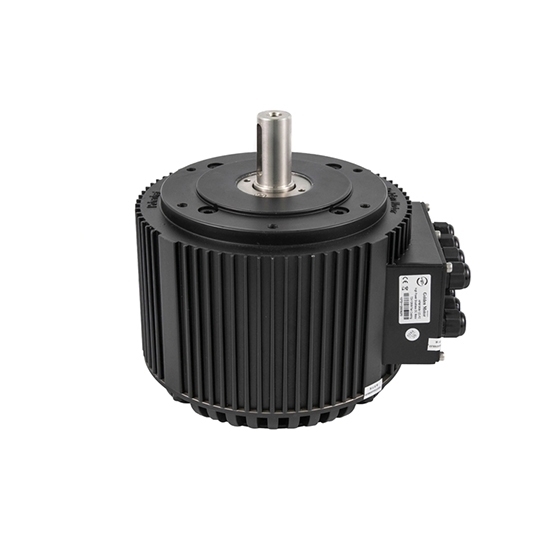

10 KW Air Cooling BLDC Motor For Electric Vehicle

0 reviews • Write a review

from

$2,108.57

Ex Tax: $2,108.57

Stock: In Stock
Model: RDDLZ-EVA-10000
Weight: 1.00
SKU: RDDLZ-EVA-10000

Available Options

Rated Voltage

Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy online an air-cooled brushless DC motor for electric vehicles with 10 kW power, 72V rated voltage, air-cooled brushless DC motor rated at 2000-6000 rpm (customizable) for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Specifications

Model: BLDC-HPM-10000A
Voltage: 48V/ 72V/ 96V/ 120V
Rated Power: 8 kW-20 kW
Rated Current: 245A/165A/125A/95A
Max Phase Current: 500A/500A/400A/300A
Protection Class: IP54
Cooling Method: Air-cooled
Efficiency: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120V
Rated speed: 3700 rpm
Casing: Alu Smartum
Length (height): 170mm
Diameter: 206mm
Weight:17 kg

Features

10 kW brushless DC motor has a compact design, water resistant, stainless steel shaft and self-cooling fan.
An air-cooled brushless motor is easy to build and requires no additional equipment.
If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

Dimensions (Unit: mm)

Applications

10 kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Tips: 10 kW air-cooled brushless motor working principle

Uncooled motors distribute heat by convection to the machine housing in which they are mounted and to the surrounding environment. 10 kW air-cooled motors have a fan that blows air onto the motor housing, thus cooling it. Air-cooled motors have a fan that blows air onto the motor housing, thus cooling it. Fluid-cooled motors are cooled by water or oil. The cooling channels that flow through the motor.
