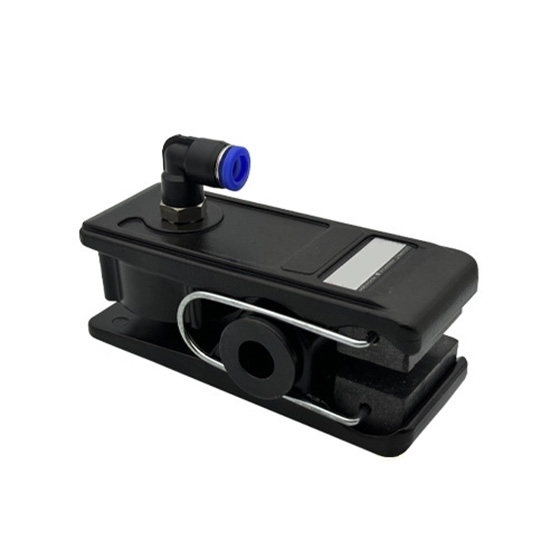

Small Pneumatic Disk Brake, 10mm

0 reviews • Write a review

from

$128.63

Ex Tax: $128.63

Stock: In Stock
Model: RDDLZ-PCB-HMC
Weight: 1.00
SKU: RDDLZ-PCB-HMC

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The small pneumatic disc brake has a brake disc thickness of 10mm and is suitable for various industrial applications, including work machinery, construction equipment, and heavy vehicles. It is particularly suitable for applications such as trimming, feeding, positioning, and tension control.

Features

The small pneumatic brake offers a flexible installation method, effectively saving installation space.
It is suitable for torque control and braking retention in light load conditions.
This brake is also appropriate for emergency braking and tension control under light loads.
Pneumatic disc brake features excellent heat dissipation and is very easy to maintain.
Its flexible installation further optimizes space utilization.
The piston cylinder provides superior heat dissipation, and the durable two-piece friction pads are easy to replace.
Small pneumatic disc brake operates using air pressure, producing no electrical sparks, and has explosion-proof characteristics, ensuring safety and reliability.

Specification

Model	RDDLZ-HMC-2A
Disk thickness	10mm
Disk diameter	100mm↑
Maximum pressure	0.7Mpa
Compression ratio	1.5
Area of pneumatic cylinder	12.6cm
Friction plate wear	23mm
Weight (approximately)	1kg

Dimension (mm)

Relationship between air pressure and torque

Tips: Application of small pneumatic brake

The clamping small pneumatic brake is widely used across various fields, including:

Automation Equipment: It is employed to control the movement and positioning of robotic arms and automated production lines, ensuring safe and precise operations.
Light Load Machinery: Suitable for use in light-duty conveyors, textile machinery, and other devices, providing torque control and braking retention.
Packaging Equipment: Used in packaging machines for tension control and emergency braking, ensuring product stability during the packaging process.
Robotics: Implemented in industrial robots to achieve precise braking and gripping actions, enhancing work efficiency.
Power Tools: Utilized in various electric tools to provide necessary braking support, ensuring operational safety.
Vehicle Systems: Applicable in electric vehicles or small transport equipment to achieve effective braking and control functions.
