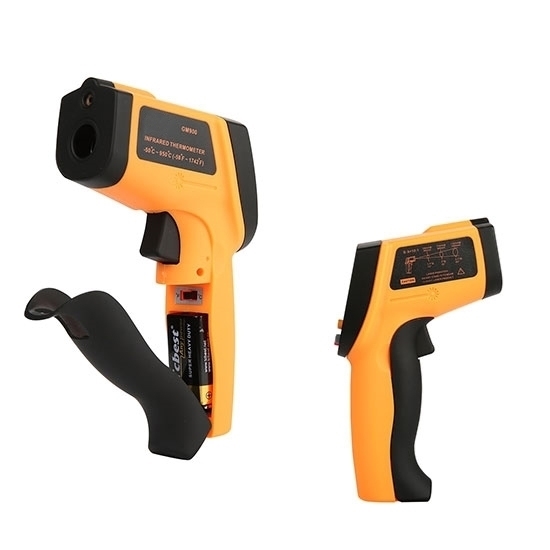

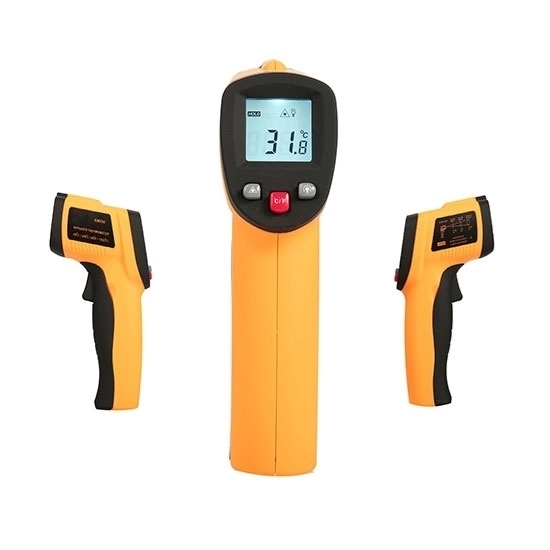

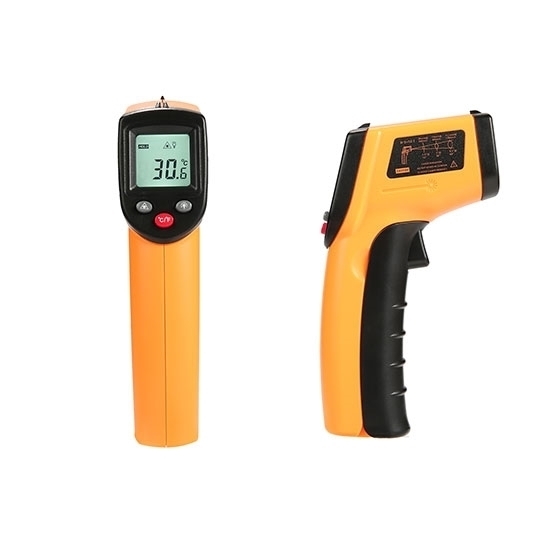

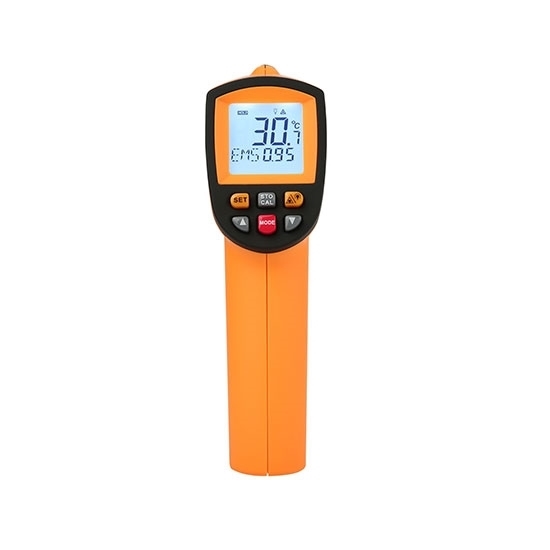

Handheld Non-contact Digital Infrared Thermometer

0 reviews • Write a review

from

$39.83

Ex Tax: $39.83

Stock: In Stock
Model: RDDLZ-ITHM-01
Weight: 1.00
SKU: RDDLZ-ITHM-01

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital IR infrared thermometers are widely used to measure the surface temperature of hot water pipes, hot engine parts, cooking surfaces, hot tubes & insulation, electrical connection and so on. The laser temperature guns have a wide range of applications from home to industrial fields with low price yet high precision, easy to carry and use.

Specification

Note: These products are NOT suitable for human and animal body temperature measurements.

Model		RDDLZ-GM320	RDDLZ-GM550	RDDLZ-GM700	RDDLZ-GM900
Temperature Range		-50℃~380℃ (-58℉~ 716℉)	-50℃~550℃ (-58℉~1022℉)	-50℃~700℃ (-58℉~1292℉)	-50℃~900℃ (-58℉~1652℉)
Accuracy		±1.5℃ or ±1.5% of reading, whichever is greater
Repeatability		±1% of reading or ±1℃
Distance to Spot Ratio		12:1
Emissivity		0.95 (preset)		0.1 ~ 1.00 (adjustable)
Resolution		0.1℃/℉
Response Time		500ms (95%)
Wavelength		8-14μm
Functions	MAX/MIN/AVG/DIF reading	N/A	N/A	Y	Y
	℃/℉ selection	Y	Y	Y	Y
	Data Hold function	Y	Y	Y	Y
	Laser Target Pointer selection	Y	Y	Y	Y
	Backlight ON/OFF selection	Y	Y	Y	Y
	High/Low Temperature Alarm setup	N/A	N/A	Y	Y
	Data Store/Recall function	N/A	N/A	Y	Y
	Auto Power Shut Off	Y	Y	Y	Y
	Low Power indication	N/A	N/A	Y	Y
Power Supply * (Battery Not Included)		2*1.5V AAA battery	9V battery	9V battery	9V battery
Weight		116g	148g	220g	220g
Dimension		144.53893mm	15343101mm	17510049mm	17510049mm
Operating Temperature		0℃ ~ 40℃ (32℉ ~ 104℉)
Operating Humidity		10% ~ 90% RH, non-condensing
Storage Temperature		-20℃ ~ +60℃ (-4℉ ~ 140℉), (without battery)

Note: * Batteries are Not Included for air shippment.

Details

Five Tips for Using Infrared Thermometer

1. Infrared thermometer can only measure the surface temperature of the objects, yet it cannot measure the inner temperature.

2. Wavelengths above 5μm cannot be measured through quartz glass. The glass has special reflection and transmission characteristics, so the IR temperature reading would be not really accurate. However, temperature can be measured through the infrared window. Infrared thermometers are best not to measure the temperature of polished metal surfaces like stainless steel, aluminum, etc.

3. Position the hot spot. To find the hot spot, the IR thermometer first aims at the target, and then scans the target up and down until confirming the hot spot.

4. Pay attention to environmental conditions such as steam, dust, smoke and so on. It blocks the thermometer's optical system and affects the accuracy of temperature measurement.

5. Ambient temperature should also be taken into account. If the IR thermometer is suddenly exposed to the environment with an ambient temperature difference of 20°C or higher, the instrument shall be allowed to adjust to a new ambient temperature within 20 minutes.
