Handheld Thermal Imaging Camera

0 reviews • Write a review

from

$470.95

Ex Tax: $470.95

Stock: In Stock
Model: RDDLZ-IRC-HT
Weight: 1.00
SKU: RDDLZ-IRC-HT

Available Options

Short Description

IR Resolution

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Handheld Thermal Imaging Camera or IR camera with resolution 60x60 or 220x160 at low cost is easy to use and can be used to conduct a test after several seconds, an ideal option for electrician and maintennance technicians to find the problem quickly.

Specifications

Model	RDDLZ-HT-02	RDDLZ-HT-18
Display	2.4 inch color screen	3.2 inch color display screen
IR Resolution	60x60 (3600 pixels)	220x160
Visible Image Resolution	0.3 mega pixels	0.3 million pixels
Field of View (FOV)	20°x20°	27°x35°
Minimum Focus Distance	0.5m	0.5m
Thermal Sensitivity	0.15°C	0.07°C
Temperature Measurement Range	-20°C~300°C (-4F°~572°F)	-20°C~300°C (-4F°~572°F)
Accuracy	±2% or ±2°C (±2% or ±4°F)	±2.5℃ or ±2.5%
Emissivity	Adjustable from 0.1 to 1.0	Adjustable from 0.1 to 10.0
Image Capturing Frequency	6Hz	8Hz
Wave Length Range	8~14μm	8~14μm
Focus Mode	Fixed	Fixed
Color Palette	Iron red, rainbow, gray scale (white glow) and gray scale (black glow)	Rainbow, iron oxide red, cold color, black and white
Image Storage	SD card (4G)	SD card (4G)
File Format	bmp	jpg
Power Supply *	4 * AA battery (Not included)	Built-in chargeable 18650 batteries
USB	N/A	Micro USB2.0
Auto Power-off Time	12 mins	Selectable: 5 mins/20 mins/not power off automatically
Operating Temperature	-5°C ~ 40°C (23℉ to 104℉)	0C ~ +50°C
Storage Temperature	-20°C ~ 50°C (-4℉ to 122℉)	-40°C ~ +80°C
Relative Humidity	10% ~ 80%RH	<85% RH
Dimensions	212x95x62mm	90x105x223mm
Weight	320g	389g

Note: * Batteries are Not Included for air shippment.

Infrared Camera Constitutions

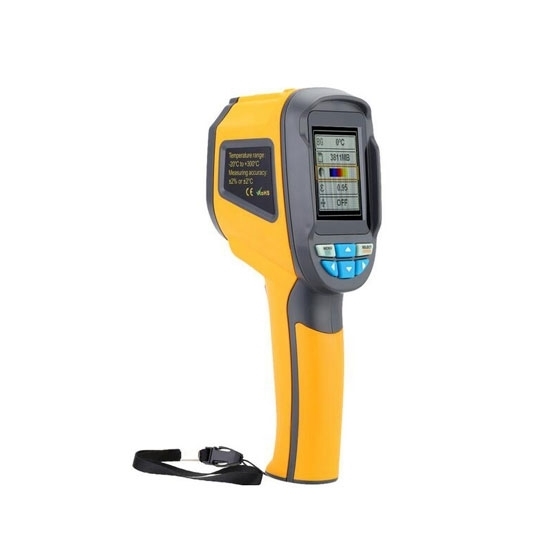

1. HT-02 thermal imaging camera

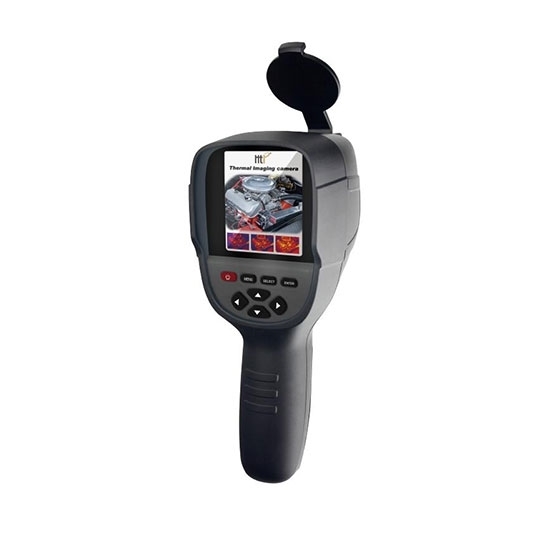

2. HT-18 thermal imaging camera

Tips: Advantages of thermal imaging camera

Thermal imaging camera is to use an infrared detector and an optical imaging objective lens to receive and reflect the infrared radiation energy distribution of the target to the photosensitive element of the infrared detector, so as to obtain an infrared thermal image. The image is corresponding to the thermal distribution on the surface of the target object. Briefly speaking, thermal imaging camera is to convert the invisible infrared energy emitted by an object into a visible thermal image. The different colors on the thermal image represent the different temperatures of the measured object.
It is mainly used in R&D or industrial inspection and equipment maintenance, and also widely applied in fire protection, night vision and security. The thermal imager has the following advantages:

No need to touch the test target
Keep users away from danger
Does not intrude or affect the target
Generate heat distribution images quickly
Can compare the temperature of different areas of the object
Can observe the overall goal via the image
Make heat distribution visible and do the analysis later
Real-time response
High-speed moving object capture
High-frequency temperature change image capture
