Low price vibration meter for sale online. The digital vibration meter can measure vibration speed, acceleration and displacement. It has an acceleration measurement range of 0.1~199.9m/s2 peak. The vibration tester uses a piezoelectric accelerometer to convert the vibration signal into an electrical signal, analyze the input signal, and display the vibration speed, acceleration, and displacement.

Specifications

• Model: RDDLZ-HT1201
• Vibration acquisition: piezoceramic accelerometer (shearing type)
• LCD display: Three and a half digit display
• Acceleration: 0.1-199.9m/s2( peak value)
• Speed: 0.1-199.9mm/s(effective value)
• Displacement: 0.001-1.999mm (effective value)
• Measurement accuracy: +(5%+2digits)
• Acceleration: 15Hz-1KHz (LO), 1KHz-10KHz (HI)
• Speed: 15Hz-1KHz (LO)
• Displacement: 15Hz-1KHz (LO)
• Temperature measurement: 0℃-60℃
• Temperature accuracy: +2C
• Automatic power-off time: 4 minutes
• Power supply: 3*AA batteries
• Operation temperature: 0℃-45℃
• Storage temperature: -20℃-60℃
• Weight of the host: 140g
• Dimension of the host: 152mmx75mmx32mm

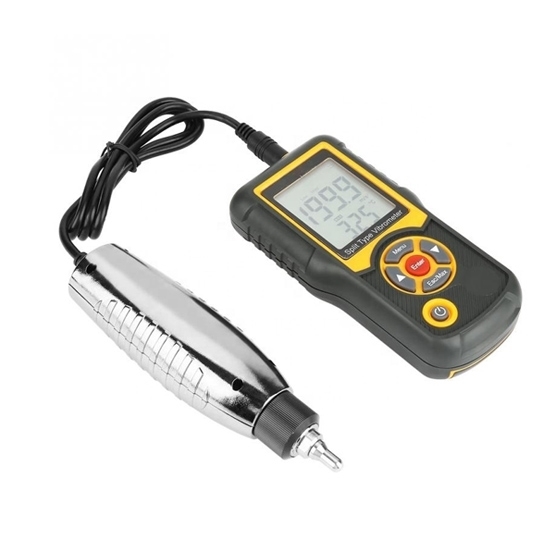

Portable Vibration Tester Details

① Frequency analog bar ② LOW: low-frequency indication(<1KHZ) ③ Measurement reading
④ MAX: Maximum value ⑤ Temperature readings ⑥ Temperature unit (C: Degree centigrade, F: Fahrenheit degree)
⑦ Acceleration unit: m/s2, Speed unit: mm/s, Displacement unit: mm ⑧ High: High-frequency indication (>1KHZ) ⑨ Battery level indication

Tips: The use considerations of vibration meter

• Don't dismantle the casing of the instrument.
• Don't use the vibration meter in an environment with explosive gas, steam and damp environment.
• When the measurement is carried out near the rotating part of the machine, operate carefully to avoid being pulled into the machine.
• Please use a dry cloth to wipe the instrument case at the time of cleaning. Don't use corrosive detergents.
• Please take out the battery if the instrument is not in use for a long time or the storage temperature is higher than 50℃ to avoid corrosion to the vibration tester due to battery leakage.
