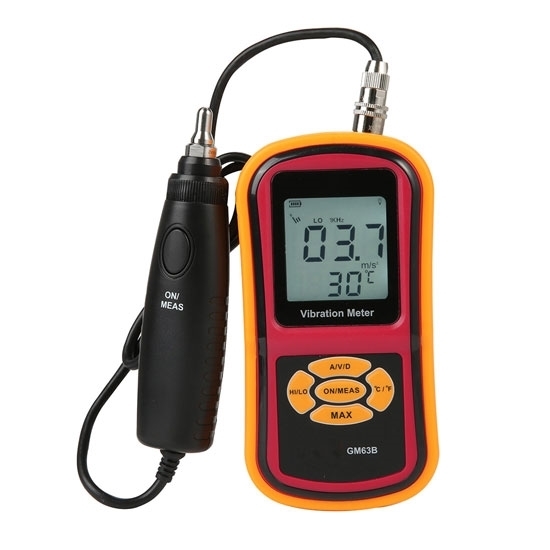

Portable Vibration Meter

0 reviews • Write a review

from

$383.97

Ex Tax: $383.97

Stock: In Stock
Model: RDDLZ-TM-VIBRO-GM63B
Weight: 1.00
SKU: RDDLZ-TM-VIBRO-GM63B

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications
The vibration meter is suitable for routine testing the vibration of machinery and equipment, especially the vibration of rotating and reciprocating machinery. It can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.

Features

LCD display the measurement result and condition directly
Acceleration, velocity and displacement can be measured
Optional vibration frequency
Use high sensitivity probe for precise measurement
Two probes (short and long) offered, to meet different requirement of measurement
Attached a magnetic sucker, in case of the measurement inconvenient by handheld
Low battery indication, auto shutdown, and LCD backlight
Max. value hold function
Selectable temperature unit ℃/℉

Specification

Model		RDDLZ-GM63B
Measuring Range	Acceleration	0.1~199.9m/s² (Peak)
	Velocity	0.1~199.9mm/s (RMS)
	Displacement	0.001~1.999 mm (Peak-Peak)
Accuracy		±5% ±2 digits
Measuring Frequency	Acceleration	10Hz~1KHz (LO); 1KHz~15KHz (HI)
	Velocity	10Hz~1KHz (LO)
	Displacement	10Hz~1KHz (LO)
LCD Display		3 1/2 digit display
Vibration Pickup		Piezoelectric ceramic accelerometer (Shear-type)
Power Supply		9V Alkaline battery (NOT included)
Functions		Low battery indication (6.9V±0.2V)
		Auto power off (Automatically shutdown with no operation for 60 seconds)
		LCD backlight display (After 7 secends)
		Max. value hold
Accessories		Two probes (S and L) to meet different measurement requirements
		A magnetic sucker in case of inconvenience for measurement by handheld
Operating Temperature		0~40℃
Humidity		30~90%RH
Weight		229g
Dimension		72x35x145mm

Dimension

Details

Tips: What does a portable vibration meter do?
The portable vibration meter is a portable mechanical vibration measuring instrument, which can easily measure the vibration parameters such as vibration, acceleration and velocity. The instrument can also be used to reliably and quantitatively evaluate the vibrations of rotating and reciprocating machines. It is widely used in mechanical design and manufacture, military, electric power, equipment management, transportation and environmental protection departments etc. The portable vibration meter provides these fields great convenience for on-line inspection and monitoring of machine equipment faults and aging signals, product quality control, vibration test measurement and vibration control.
