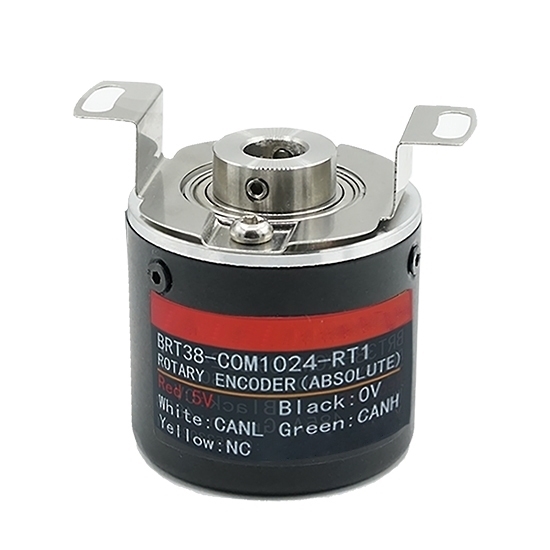

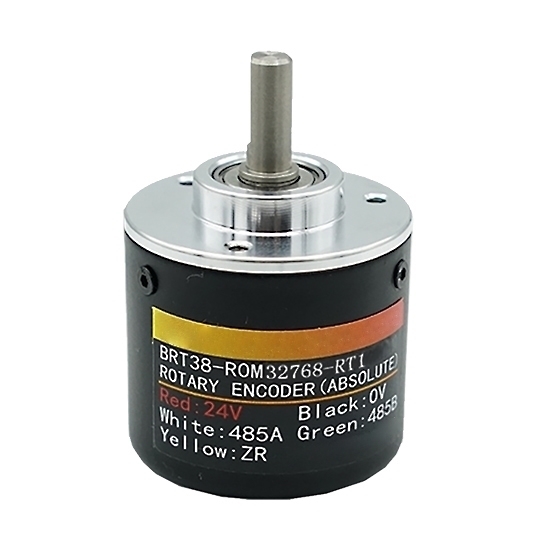

High resolution rotary encoder with shaft diameter 6mm/ 8mm, blind hole 8mm are optional, multi turn absolute rotary encoder with 100mA working current, 24/ 50/ 99/ 1287/ 4968/ 19872 turns can be choose. The multiturn absolute encoder has advantages of small size, light weight and long service life.

Specification

Feature

1. Gear Structure: Internal similar to clock and watch instruments, no built-in battery, purely mechanical memory laps.
2. Main Board Pouring Craft: Internal pouring craft, suitable for all kinds of water immersion and outdoor use.
3. High-precision Encoder: Up to 17 resolution per turn, adopting high-precision chip and high-precision magnet precision up to 0.07 degree.

Dimension (mm)

• Shaft diameter 6mm

• Shaft diameter 8mm

• Blind hole 8mm

Application

Tips: Different betwwen Single-turn and Muititurn Absolute Encoder.

The multi-turn rotary encoder is made on the basis of the single-turn absolute rotary encoder through the principle of mechanical transmission and the mechanical principle of clock gears. The multi-turn encoder signal output includes parallel output, serial output, bus type output, and transmission-body type output.
Single-turn absolute encoders provide a range of 360 degrees (single-turn). When the drive shaft rotates more than 360 degrees, subsequent output characteristics will be identical to the first lap. (Example: output at 361 degrees = output at 1 degree; output at 720 degrees equals output at 360 degrees.)

Multi-turn encoders provide ranges in excess of 360 degrees by measuring additional revolutions. The output signal is based on the number of revolutions and the position of the drive shaft within one revolution. For example: the output signal/value after 3.5 (starting at 0) turns will be seven times higher than the output after half a turn.
