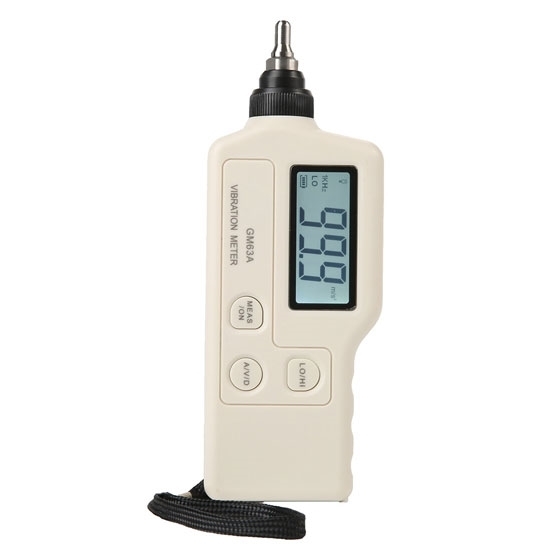

Handheld Vibration Meter

0 reviews • Write a review

from

$286.35

Ex Tax: $286.35

Stock: In Stock
Model: RDDLZ-TM-VIBRO-GM63A
Weight: 1.00
SKU: RDDLZ-TM-VIBRO-GM63A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications
The vibration meter is suitable for routine testing the vibration of machinery and equipment, especially the vibration of rotating and reciprocating machinery. It can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.

Features

Simple operation, compact structure and portable for measurement
Visually display the measurement result
Acceleration, velocity and displacement measurement
Different vibration frequency
High sensitivity probe for accurate measurement
Long and short probes provided, suitable for different situations of measurement
Multi-functions, such as low power indication, auto power off, LCD backlight

Specification

Model		RDDLZ-GM63A
Measuring Range	Acceleration	0.1~199.9m/s² (Peak)
	Velocity	0.1~199.9mm/s (RMS)
	Displacement	0.001~1.999 mm (Peak-Peak)
Accuracy		±5% ±2 digits
Measuring Frequency	Acceleration	10Hz~1KHz (LO); 1KHz~15KHz (HI)
	Velocity	10Hz~1KHz (LO)
	Displacement	10Hz~1KHz (LO)
LCD Display		3 1/2 digit display
Vibration Pickup		Piezoelectric ceramic accelerometer (Shear-type)
Signal Output		AC output 2V peak (display full scale); 10KΩ or high impedance headphones can be connected
Power Supply		9V Alkaline battery (NOT included)
Functions	Low battery indication	6.9V±0.2V
	Auto power off	Automatically shutdown with no operation for 60 seconds
	LCD backlight display	After 7 secends

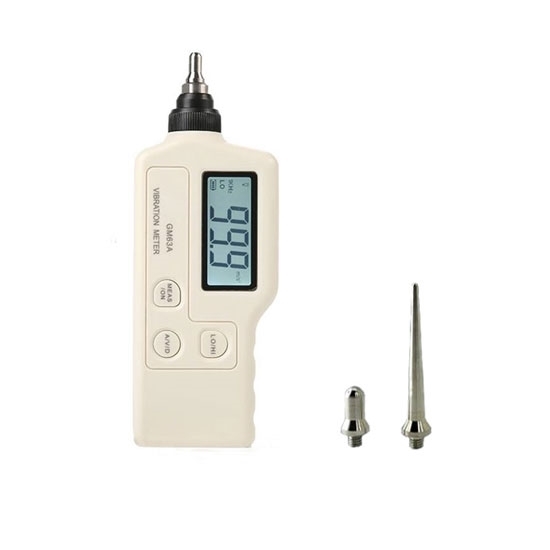

Accessories		Equipped with two probes (S and L) to meet different measurement requirements
Operating Temperature		0~40℃
Humidity		30~90%RH
Weight		182g
Dimension		67x30x183mm

Dimension

Details

Tips: What is handheld vibration test meter?
Handheld vibration meters (including two types with external shear-type piezoelectric accelerometer or built-in accelerometer), have four kinds of vibration measurement parameters of acceleration, velocity, displacement, and high-frequency acceleration for your choice, with multi-functions like measurement data hold, automatic shutdown and so on.
Handheld vibration meters not only can test the acceleration, velocity and displacement of vibration, but also check faults of rotating machinery and reciprocating machinery. What’s more, it can diagnose faults of bearings and gears of rotating machinery by measuring the high-frequency acceleration of vibration. The handheld vibrometer is used to test the intensity of rotating machinery, so the instrument is widely used in machinery manufacturing, power, chemical and other fields.
