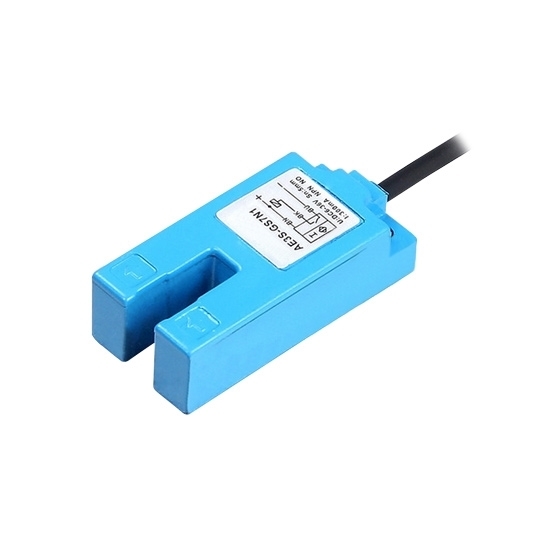

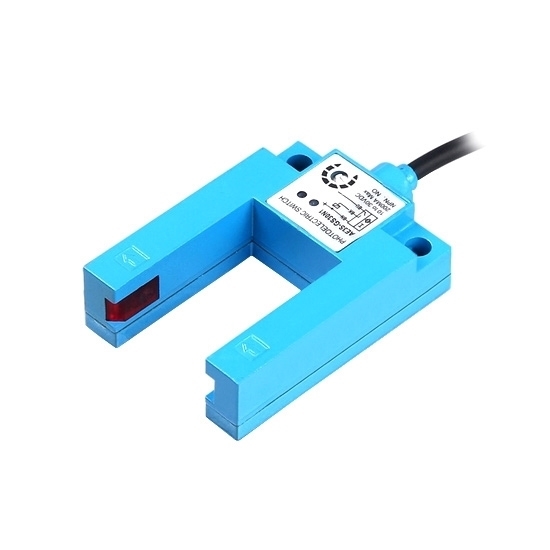

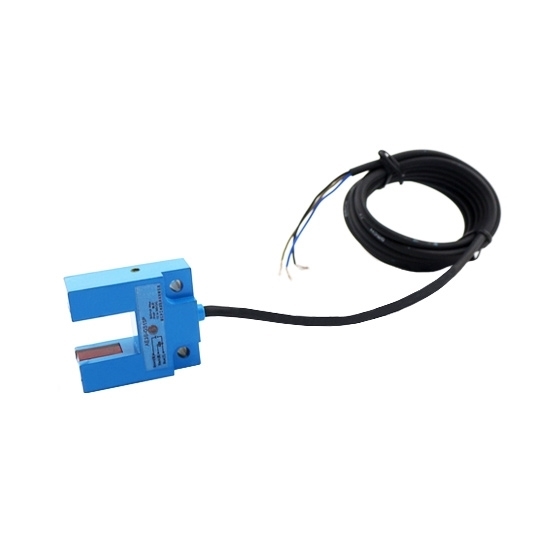

Slot Type Photoelectric Sensor

0 reviews • Write a review

from

$43.81

Ex Tax: $43.81

Stock: In Stock
Model: RDDLZ-PHOS-ST
Weight: 1.00
SKU: RDDLZ-PHOS-ST

Available Options

Dimension

Output Mode

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Slot type photoelectric sensor with reverse power protection can be directly connected with PLC.

Applications: Photoelectric sensors have been used as position detection, liquid level control, product counting, width discrimination, speed detection, fixed length cutting, holes recognition, signal delay, automatic door sensing, color scale detection, punching and cutting Machine and security and many other areas. In addition, using the stealthiness of infrared, photoelectric sensors also can be used as a burglar alarm in banks, warehouses, shops, and offices.

Specification:

Model		RDDLZ-PSST-AE3S-GS7	RDDLZ-PSST-AE3S-GS15	RDDLZ-PSST-AE3S-GS30
Dimension		162555mm	1535.540.5mm	205572mm
DC type	NPN	NO	NO	NO
		NC	NC	NC
		-	-	NO+NC
	PNP	NO	NO	NO
		NC	NC	NC
		-	-	NO+NC
Detection range		7mm	15mm	30mm
Detection target		Opaque object	Opaque object	Opaque object
Detection range regulation		Sensitivity controller	Sensitivity controller	Sensitivity controller
Response time		1ms	1ms	1ms
Connection delay		1.5ms
Light source		Infrared light 660nm
Power supply		DC type: DC 12-24V (6-36V), impulse (p-p) 10% below
Withstand voltage		AC1000V 50/60Hz 1min between charging part and housing
Voltage influence		Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current		N/P type: ≤20mA, A type: ≤1.7mA
Control output		N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times)
Loop protection		N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity		Operation temperature/storage temperature: -30~+65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence		Temperature range -30~+65℃, at +23℃, ±15% detection distance; Temperature range -25~+60℃, at +23℃, ±10% detection distance
Insulation impedance		≥50MΩ (DC500 megameter) between charging part and housing
Material		Housing: Aluminum die casting (ABS), Detection surface (lens): PMMA
Protection class		IP65
Cable length		2m

Slot type photoelectric sensor dimensional drawing:

Slot type photoelectric sensor wiring diagram:

Tips: What is a slot type photoelectric sensor?
The slot type photoelectric sensor is actually a kind of through beam photoelectric sensor, also called U-type photoelectric sensor. It is an infrared photoelectric sensor, which is composed of a light projector and light receiver. The slot width determines the strength of the inductive received signal and the distance of the received signal. The slot type photoelectric sensor and the proximity sensor are also non-contact sensor, which is less restricted by the detecting object. Slot type photoelectric sensor has a long detecting distance about tens of meters, and has high accuracy for small objects detecting. Slot type photoelectric sensor is mainly used for pass detection, entry detection, position detection, time detection, direction identification and safety confirmation.
