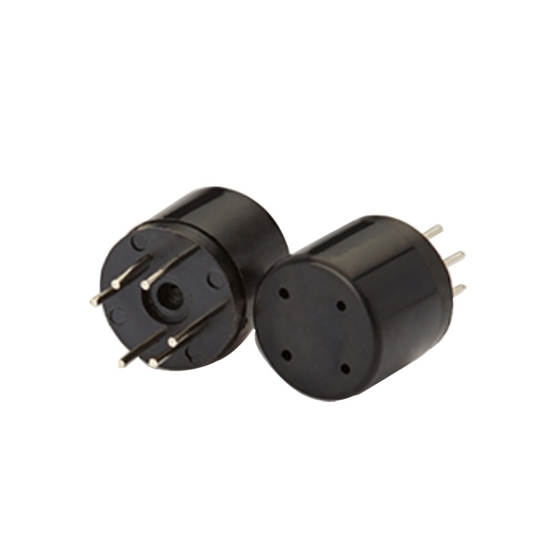

Ozone (O3) Detection Sensor, 10ppb To 1000ppb

0 reviews • Write a review

from

$50.36

Ex Tax: $50.36

Stock: In Stock
Model: RDDLZ-GS-131
Weight: 1.00
SKU: RDDLZ-GS-131

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This gas sensor has a high sensitivity for detecting ozone in the range of 10ppb to 1000ppb. It is an ideal choice for household Ozone concentration exceeding alarm alarms, industrial Ozone concentration exceeding alarm alarms, and portable Ozone concentration detectors.

Specifications

Model	RDDLZ-MQ-131
Product Type	Semiconductor Gas Sensor
Standard Package	Plastic Seal
Detect Gas	Ozone (O₃)
Detection Concentration	10~100ppb Ozone
Standard Circuit Conditions	Loop Voltage	V_C	≤24V DC
	Heating Voltage	V_H	5.0V±0.1V AC or DC
	Load Resistance	R_L	Adjustable
Gas Sensor Characteristics Under Standard Test Conditions	Heating Resistor	R_H	34±3Ω (Room Temperature)
	Heating Power Consumption	P_H	≤900mW
	Sensitivity	S	R₀(in air)/R_S (in 200ppb O₃)≥2
	Output Voltage	V_S	≥1.0V (in 200ppb O₃)
	Concentration Slope	α	≤0.6 (R_100ppb/R_500ppb O₃)
Standard Test Conditions	Temperature, Humidity		20℃±2℃; 55%±5%RH
	Standard Test Circuit		V_C:5.0V±0.1V; V_H:5.0V±0.1V
	Preheat Time		Not Less Than 48h
Oxygen Concentration	21% (Not less than 18%. Oxygen concentration will affect the initial value, sensitivity and repeatability of the sensor. Please consult when using it under low oxygen concentration.)
Life	5 Years

Structural Diagram

Circuit Diagram

Tips: What is an Ozone (O3) detection sensor used for?

Ozone (O3) detection sensors play a crucial role in monitoring and assessing air quality by measuring the concentration of ozone in the atmosphere. Ozone is a reactive gas composed of three oxygen molecules and is a key component of the Earth's stratosphere, where it forms the ozone layer. While ozone is beneficial in the stratosphere as it absorbs and protects against harmful ultraviolet (UV) radiation, ground-level ozone can be a significant air pollutant.

Ozone is a common component of smog, and its elevated concentrations near the Earth's surface can have adverse effects on human health, vegetation, and the environment. Exposure to high levels of ground-level ozone can cause respiratory problems, aggravate existing respiratory conditions, and lead to other health issues.

Ozone detection sensors are utilized in various applications, including environmental monitoring, industrial settings, and research. They provide real-time data on ozone levels, enabling authorities to implement timely measures to protect public health and the environment. In urban areas, these sensors are often part of air quality monitoring networks, helping policymakers make informed decisions to mitigate the impact of air pollution. Additionally, industries use ozone sensors to ensure compliance with regulatory standards and to optimize processes that may contribute to ozone emissions. Overall, ozone detection sensors play a critical role in safeguarding air quality and human well-being.
