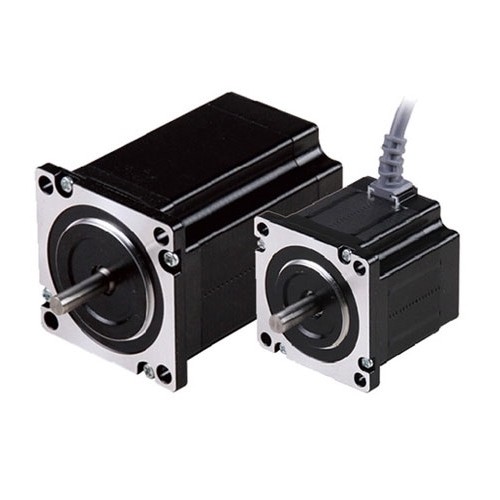

Nema 24 Stepper Motor, 4A, 1.8 Degree, 2 Phase 4 Wires

0 reviews • Write a review

from

$84.62

Ex Tax: $84.62

Stock: In Stock
Model: RDDLZ-STEP-2882404
Weight: 1.00
SKU: RDDLZ-STEP-2882404

Available Options

Short Description

Input Pulse Voltage

Matched Drive

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 24 Stepper motor, 1.8 degree, 2.5Nm in 88mm, phase current 4A and resistance 0.3Ω, manufacturer direct sale.

Specification

Basics	Model	RDDLZ288-4004A
	Matched Driver Model	RDDLZDSP86(Click it to see more info)
	Holding torque	2.5Nm
	Current/phase	4A
	Resistance	0.3Ω
	Step angle	1.8 °
	Rotor inertia	1600g.cm²
	Weight	2.4kg
	Length	88mm
	Motor leads	4
Technical parameters	Step Angle Accuracy	±5%(full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max.(rated current, 2 phase on)
	Ambient Temperature	-10℃～+ 50℃
	Insulation Resistance	100MΩ Min 500V DC
	Dielectric Strength	500V AC for one minute
	Shaft Radial Play	0.06Max.(450g)
	Shaft Axial Play	0.08Max.(450g)

Dimensions

Motor Connection

Tips: Application of stepper motor in paper rewinding machine

Paper rewinding machine, an indispensable machine in printing industry, plays a key role in pharmaceutical industry. It is used for rewinding a large piece of aluminum foil paper overlapped in single row into a reel. It is controlled with programmable controller. By using stepper motor and air cylinder as actuating elements, it features stable and reliable action, simple operation, convenient maintenance and automatic running. It can automatically give alarm and stop working when there is no paper or the fed paper is little. The contact part between tablet and the machine is made of 304 materials while the other part is made of steel plate stoving varnish, 304 or aluminum alloy anodizing. It is a most ideal device tablet reel of the pharmaceutical factory and such similar packages.
Composition and functions:

Tablet feeding part: the tablets are put into the hopper, the oscillator will automatic feed the tablets into the table sequencing part. The feeder of this part and the tablet sequencing is automatic. When there are many tablets, it will stop feeding tablets, and vice versa.
Tablet sequencing part: The role of this part is to arrange the disordered tablets according to certain direction and set quantity and feed them into the tablet feeding part.
Paper feeding part: putting the packing material into the location of roll paper, then the machine will automatically feed the tablets into the film rolling location.
Electric control part: the whole operation process of the device is controlled through PLC, and automatically actuated according to the sequence. In case of lack of certain package, it will automatically give alarm and halt down.
