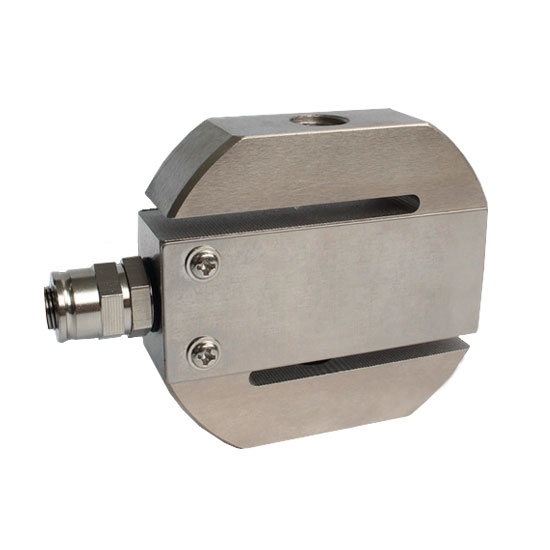

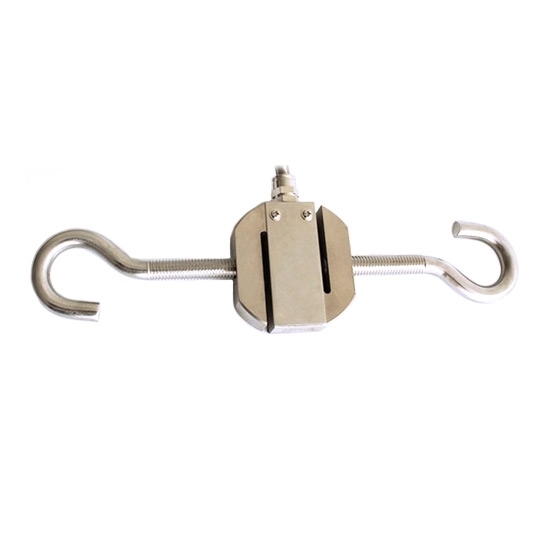

Strain Gauge Load Cell, S Type, 5kg/20kg/30kg/500kg To 7 Ton

0 reviews • Write a review

from

$82.59

Ex Tax: $82.59

Stock: In Stock
Model: RDDLZ-LC-S02
Weight: 1.00
SKU: RDDLZ-LC-S02

Available Options

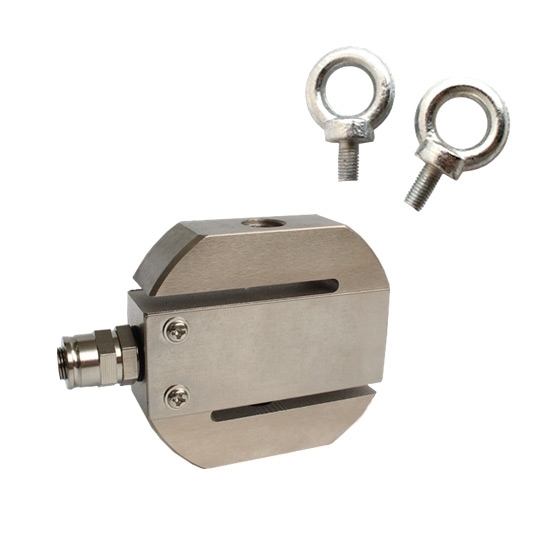

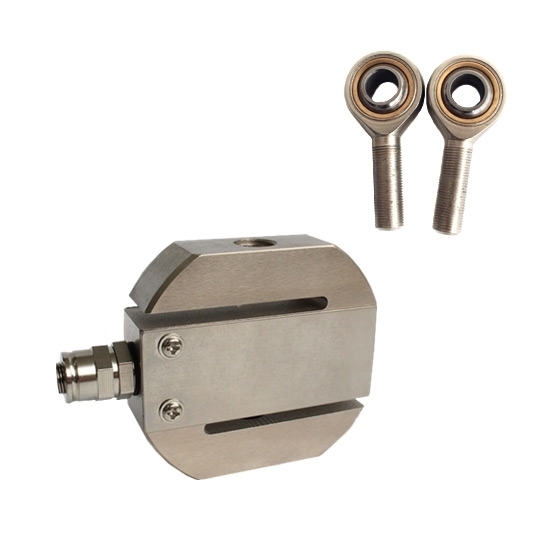

Accessories

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

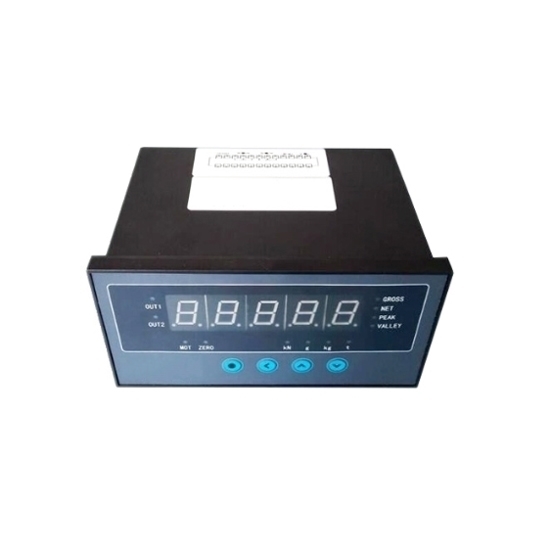

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Tension and compression load cells have capacity range from 5kg, 20kg, 30kg, 100kg, 500kg, 1 ton to 7 ton. Strain gauge load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCS-DYLY-102
Shipping Weight	1~2kg
Capacity Range *	1~500kg, 1~7 ton
Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.05mV/V (Low range variations may differ)
Creep	±0.03%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃ (-4℉~+149℉)
Input Impedance	350±20Ω
Output Impedance	350±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-15V, suggest DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	2m (＜5ton), 5m (≥5ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Durable Alloy Steel: Made from 42CrMo alloy steel, offering high strength, corrosion resistance, and long-term durability.
Tension and Compression Measurement: Supports both tension and compression measurements for versatile use.
High-Precision Strain Gauge: Ensures stable and reliable performance with long-term accuracy.
Waterproof Connector: Six-corner waterproof connector prevents cable pull-out and ensures stable data transmission.
Easy Installation: Standard threaded holes for simple installation and wide system compatibility.
Versatile Applications: Ideal for force measurement and weighing systems in industrial automation.
IP66 Protection: Water and dust-resistant for reliable performance in harsh environments.

Dimension

Capacity	Dimension (mm)
Capacity	W	H	B	M1
0~1kg	60	58	12	M6*1.25
2~30kg	60	58	12	M8*1.25
50~200kg	70	64	20	M12*1.75
300~500kg	70	64	20	M12*1.75
1 ton	70	64	25	M16*2
2~7 ton	84	92	32	M20*2.5

Wiring Method

Application Cases

Tips: Advantage of S type load cell
S type load cell is the most common sensor, has the function of measuring both tension and compression, small size, high accuracy, good measuring range and convenient installation. It is appropriate for crane scale, batching scale, electronic-mechanical scale, and other electronic force measuring and weighing systems.
