Strain Gauge Load Cell, S Type, 5kg/50kg/1000kg/3 Ton To 20 Ton

0 reviews • Write a review

from

$88.41

Ex Tax: $88.41

Stock: In Stock
Model: RDDLZ-LC-S01
Weight: 1.00
SKU: RDDLZ-LC-S01

Available Options

Capacity

With Transmitter

With Display Controller

Accessories for 5kg

Accessories for 50kg

Accessories for 100kg

Accessories for 200kg

Accessories for 300kg

Accessories for 500kg

Accessories for 1000kg

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Tension and compression load cells have capacity range from 5kg, 50kg, 300kg, 1000kg, 3 ton to 20 ton. Strain gauge load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCS-TJL-1
Shipping Weight	2~15kg
Capacity Range *	5 kg~20 ton

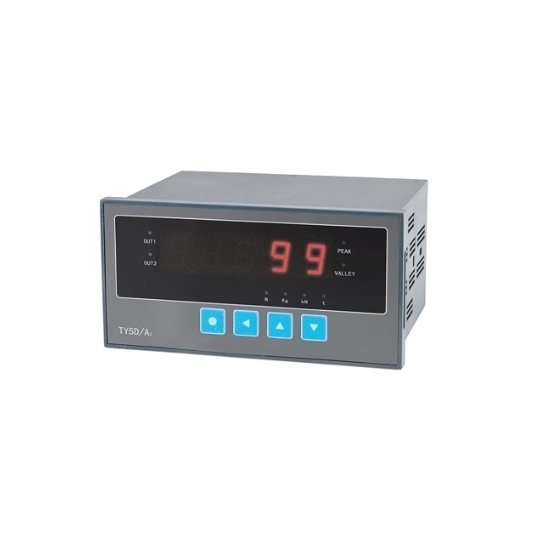

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)
Matched Transmitter	RDDLZ-NTB3K (Click it to the transmitter page)
Accuracy	0.02~0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02~±0.03%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.02~±0.03%F.S/10℃
Temperature Effect on Output	±0.02~±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel (Stainless steel load cell can be customizable, contact us for further communication. MOQ: 5pcs)
Protection Class	IP67 (except 5 kg model)
Cable Length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

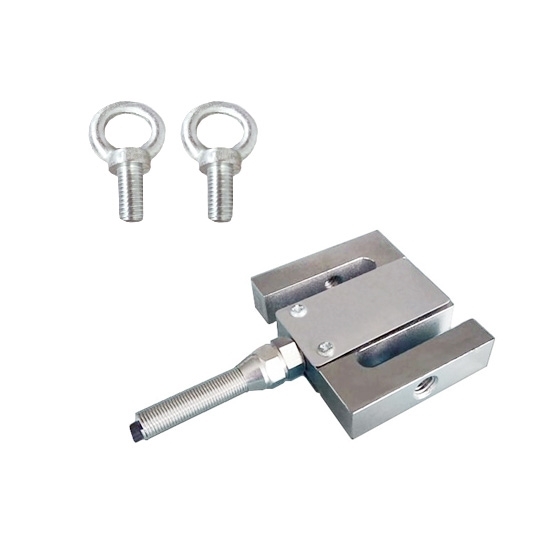

Accessories *	A pair of rings (only for capacity≤1000kg)

Feature

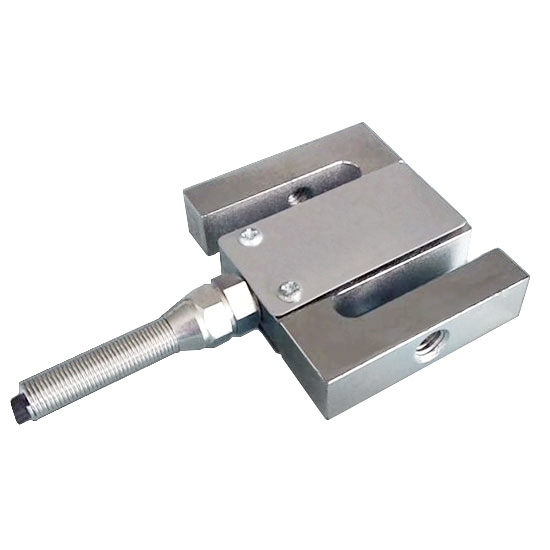

S-Type Sensor: Made from 42Cr alloy steel, it offers high strength and excellent fatigue resistance, capable of measuring both tension and compression.
High Precision Strain Gauge: Equipped with a high-quality strain gauge to simultaneously compensate for temperature and deflection, ensuring stable performance.
Waterproof Connector: Features a six-corner waterproof connector with an elastic sleeve to prevent cable pull-out and improve durability.
Standard Thread Holes: Comes with standard threaded holes at both ends, ensuring easy and worry-free installation.

Dimension

Capacity	Dimension (mm)
Capacity	A	B	C	M
5~50kg	64	51	12.7	M8
100~700kg	76	51	19.1	M12
1~1.5 ton	76	51	25.4	M12
2~5 ton	108	76	25.4	M20
7.5~10 ton	178	127	51	M30
20 ton	188	140	60	M36*3

Wiring Method

Application

Tips: How to select load cells?
The selection of the load cell quantity is decided according to the application of the electronic weighing instrument, the number of points required to be supported of the scale (the number of points should be determined according to the principle that the geometric gravity center of the scale should coincide with the practical gravity center). Generally, the quantity of the supporting points is exactly the quantity of the load cell. However, as to some special scales, such as the electronic crane scale, only one sensor will be employed. Some electronic-mechanical scales should be decided of the load cell quantity according to the practical conditions.
The selection of the load cell range can be determined according to the comprehensive assessment of the maximum weighing value of the scale, the quantity of the load cell, the dead weight of the scale, the possible generated maximum eccentric load, dynamic load and other factors. Generally, if the measuring range of the load cell is close to the load distributed to each sensor, the weighing accuracy is high. However, in the practical operation, because the load exerted to the sensor still includes the scale dead weight, tare weight, eccentric load and vibratory impulse and so on in addition to the weighed products, factors of several aspects should be considered in selecting the load cell range, so as to ensure the safety and service life of the load cell.
