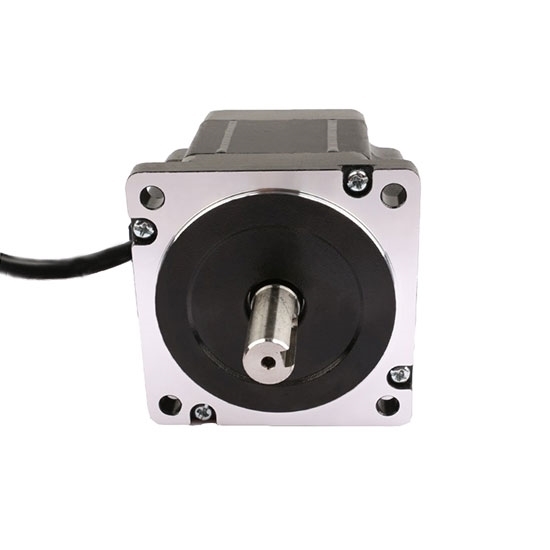

Nema 34 3-phase Stepper Motor, 3.3A, 1.2 Degree, 6 Wires

Nema 34 3-phase Stepper Motor, 3.3A, 1.2 Degree, 6 Wires
Nema 34 3-phase Stepper Motor, 3.3A, 1.2 Degree, 6 Wires
0 reviews • Write a review
from
$175.85
Ex Tax: $175.85
  • Stock: In Stock
  • Model: RDDLZ-STEP-31263433
  • Weight: 1.00
  • SKU: RDDLZ-STEP-31263433

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 34 Stepper motor, 7.6Nm holding torque, 3.3A phase curent, 1.2° step angle, manufacturer direct sale.

Specification

BasicsModelRDDLZ3126-3306A
Matched Driver ModelRDDLZDSP32207(Click it to see more info)
Holding torque7.6Nm
Current/phase3.3A
Resistance1.8Ω
Step angle1.2°
Rotor inertia3300g.cm²
Weight3.8kg
Length126mm
Motor leads6
Technical parametersStep Angle Accuracy±5%(full step, no load)
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80℃ Max.(rated current, 2 phase on)
Ambient Temperature-10℃～+ 50℃
Insulation Resistance100MΩ Min 500V DC
Dielectric Strength500V AC for one minute
Shaft Radial Play0.06Max.(450g)
Shaft Axial Play0.08Max.(450g)

Dimensions

Motor Connection

Details

Tips: Selection of stepper motor: confirming the working environment

  1. Confirm whether the working environment can satisfy the requirements on the specification, including temperature and humidity. The using temperature range of the stepper motor is generally 0~50°C, and its humidity is 20%RH~90%RH; storage environment range is -20°~70°C, and the humidity is 15%RH~95%RH.
  2. If the ambient temperature is high, it is necessary to reduce the current working condition or improve heat dissipation condition or select high temperature resistance motor.
  3. Generally, the stepper motor features UL B-level insulation grade. Considering interior and exterior temperature difference, the surface of hot stable stepper motor can bear 100°C, but it is advised to control it within 80°C.
  4. In case of special situation, it is necessary to strictly control the rise in temperature of motor. The stepper motor with large torque can be used to substantially reduce the working current to reduce the heating quantity of the motor.
  5. For common stepper motor, there are no protection measures. It cannot be used at dust environment.
  6. Stepper motor should not be in humidity and free of collision.
